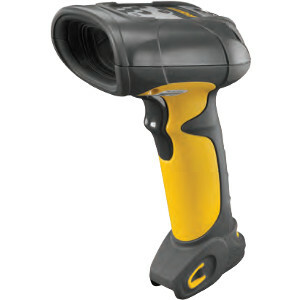

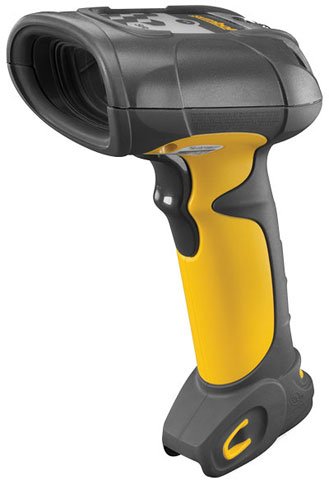

Motorola DS3578-DP2F005WR Barcode Scanners
The Motorola DS3578 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments, plus integrated Bluetooth provides cordless freedom, improving productivity. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3578 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.
Technical Information
- Scan Pattern: Omni-directional
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Depth of Field:
- 1.10" - 1.60"@3 mil - Code 39
- 3.50"@4 mil - Code 39
- 4.20"@5 mil - Code 39
- 5.40"@7.50 mil - Code 39
- 1.10" - 9.20"@20 mil - Code 39
- 0.80" - 6.20"@13 mil - 100% UPC
- 3.70"@6.67 mil - PDF417
- 4.50"@10 mil - PDF417
- 3.20" - 5.60"@15 mil - PDF417
- 1" - 2.10"@4 mil - Data Matrix
- 0.40" - 2.70"@5 mil - Data Matrix
- 3.50"@7.50 mil - Data Matrix
- 4.40"@10 mil - Data Matrix
- 1.10" - 1.40"@4 mil - QR Code
- 0.50" - 2.20"@5 mil - QR Code
- 3.30"@7.50 mil - QR Code
- 4"@10 mil - QR Code
General Information
- Product Type: Handheld Barcode Scanner
- Product Series: DS3578
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS3578-DP
- Product Name: Rugged Cordless Digital Scanners With Integrated Bluetooth
Physical Characteristics
- Height: 7.3"
- Width: 4.8"
- Depth: 2.9"
- Color:
- Twilight Black
- Yellow
- Weight (Approximate): 14.60 oz
Network & Communication
- Bluetooth: Yes
Battery Information
- Battery Chemistry: Lithium Ion (Li-Ion)
Full specifications (PDF)| Brand | Motorola |
| Model | DS3578 |
| Communication Range | less than 33 ft |
| Connectivity | Cordless |
| Connection | USB, Bluetooth |
| Color | Yellow/Black |
| Scan Pattern | Area |
| Communication Type | Bluetooth |
| Scanner Type | Imager |
| Form Factor | Handheld |
| Scanner Capability | 2D |
| Included Cables | Scanner Only - No Cable |
| Ruggedness | Rugged |
|
Motorola Cable (CBA-U01-S07ZAR)
USB Cable, 7 ft. (2m) Straight, Series A Connector.
:
|
$25.40 + Add to Quote |
|
Motorola (50-16000-182R)
AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
:
|
$12.80 + Add to Quote |
|

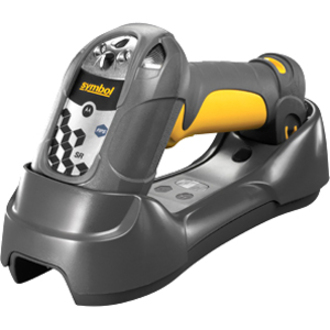

Motorola (FLB3578-C0007WR)
Crd/Chg & Radio/Twlblk/FLB35xx
:
|
$287.80 + Add to Quote |
|
Motorola (FLB3578-CF007WR)
Fork-Lift Cradle, Radio/Charging With Fips Bluetooth Cradle Only.
:
|
$334.60 + Add to Quote |
|
Motorola Cable (CBA-R37-C09ZAR)
- RS-232: DB-9 Female CON. 9 ft. (2.8m) Coiled, POWER PIN
:
|
$65.30 + Add to Quote |
The Motorola DS3578-DP2F005WR is also known as MOT-DS3578DP2F005WR or DS3578DP2F005WR .
