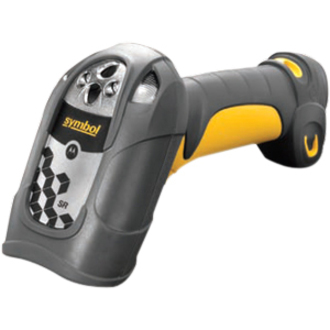

Motorola DS3508-SRAU0200ZR Barcode Scanner

Motorola DS3508 - USB Kit, 2D Imager, Rugged Handheld Corded Scanner. Includes USB cable.
Ability to read both 1D and 2D barcodes

The Motorola DS3508 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3508 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 and Variants:
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39, Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard,Inverse, Micro)
    • Postal Codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 and Variants:
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39, Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard,Inverse, Micro)
    • Postal Codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: DS3508
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3508-SR
  • Product Name: DS3508-SR Handheld Barcode Reader

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Weight (Approximate): 11.85 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • DS3508-SR Handheld Barcode Reader
    • USB Cable
    • DS3508-SR Handheld Barcode Reader
    • USB Cable

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model DS3508
Color Yellow/Black
Scan Pattern Area
Connection USB
Scanner Type Imager
Connectivity Corded
Form Factor Handheld
Scanner Capability 2D
Included Cables USB
Ruggedness Rugged
