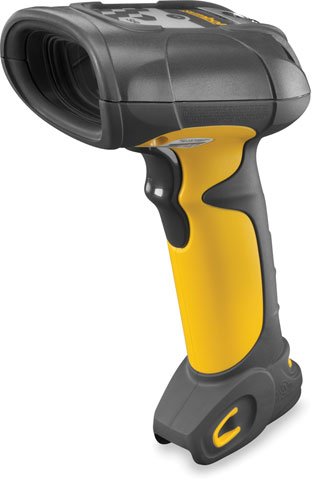

Motorola DS3508-HDAU0200ZR Barcode Scanner

Motorola DS3508 High Density - USB Kit, 2D Imager, High Desnity, Rugged Handheld Corded Scanner. Includes USB cable.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser scan engine guarantees rapid error free data entry
Read More

Full specifications (PDF)

Ability to read both 1D and 2D barcodes
The Motorola DS3508 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3508 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.
Motorola DS3508-HDAU0200ZR Overview

The DS3508-HD Handheld Bar Code Reader offers the same capabilities as the DS3508-SR, but adds optimization for the very tiny and dense 2D bar codes frequently found in warehousing, transportation and logistics, and manufacturing environments.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Codes

  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
  • ISBN (Bookland)
  • Coupon Code
  • ISSN
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • Code 11 (Standard, Matrix 2 of 5)
  • MSI Plessey
  • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
  • Base 32 (Italian Pharmacode)

PDF417 and Variants

  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)

2D Codes

  • TLC-39, Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard,Inverse, Micro)

Postal codes

  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japan Postal
  • Australian Postal
  • Dutch Postal
  • 4State Postal
Light Source:
Laser
Image Sensor Type:
Imager
Depth of Field:
  • 1.10" - 1.60"@3mil - Code 39
  • 0" - 3.5"@4mil - Code 39
  • 0" - 4.2"@5mil - Code 39
  • 0" - 5.4"@7.5mil - Code 39
  • 1.10" - 9.20"@20mil - Code 39
  • 0.80" - 6.20"@13mil - 100% UPC
  • 0" - 3.70"@6.67mil - PDF417
  • 0" - 4.50"@10mil - PDF417
  • 3.20" - 5.60"@15mil - PDF417
  • 1.00" - 2.10"@4mil - Data Matrix
  • 0.40" - 2.70"@5mil - Data Matrix
  • 0" - 3.50"@7.5mil - Data Matrix
  • 0" - 4.40"@10mil - Data Matrix
  • 1.10" - 1.40"@4mil - QR Code
  • 0.50" - 2.20"@5mil - QR Code
  • 0" - 3.30"@7.5mil - QR Code
  • 0" - 4.00"@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
11.85 oz
Miscellaneous
Package Contents:
  • DS3508-HD Handheld Bar Code Reader
  • Holster
  • Intelli-Stand (hands-free scanning)
  • Tool Balancer Pulley (tethered)
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0616174224052, 0783555035917, 4054318744152
UPC: 616174224052, 783555035917
EAN: 0616174224052, 0783555035917, 4054318744152
UNSPSC: 43211701
