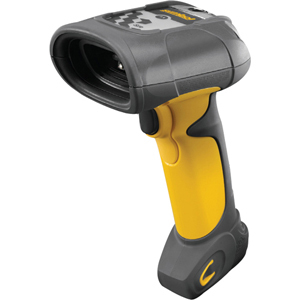

Motorola DS3508-HD20005R Barcode Scanner

Zebra DS3608-HD20003VZWW Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra DS3608-HD20003VZWW Barcode Scanner.
Motorola DS3508 - SCANNER ONLY, 2D Imager, High Denisty, Rugged Handheld Corded Scanner. Does not include necessary cables. See accessories. For the full kit purchase (Part# DS3508-HDAU0200ZR).
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Motorola DS3508 Barcode Scanner Model Overview
The Motorola DS3508 Series of rugged, omni-directional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3508 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.
Motorola DS3508-HD20005R Barcode Scanner Overview

The DS3508-HD Handheld Bar Code Reader offers the same capabilities as the DS3508-SR, but adds optimization for the very tiny and dense 2D bar codes frequently found in warehousing, transportation and logistics, and manufacturing environments.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Codes

  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
  • ISBN (Bookland)
  • ISSN
  • Coupon Code
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • Code 11 (Standard, Matrix 2 of 5)
  • MSI Plessey
  • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
  • Base 32 (Italian Pharmacode)

PDF417 and Variants

  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)

2D Codes

  • TLC-39, Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard,Inverse, Micro)

Postal codes

  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japan Postal
  • Australian Postal
  • Dutch Postal
  • 4State Postal
Light Source:
Laser
Image Sensor Type:
Imager
Depth of Field:
  • 1.10" - 1.60"@3mil - Code 39
  • 0" - 3.5"@4mil - Code 39
  • 0" - 4.2"@5mil - Code 39
  • 0" - 5.4"@7.5mil - Code 39
  • 1.10" - 9.20"@20mil - Code 39
  • 0.80" - 6.20"@13mil - 100% UPC
  • 0" - 3.70"@6.67mil - PDF417
  • 0" - 4.50"@10mil - PDF417
  • 3.20" - 5.60"@15mil - PDF417
  • 1.00" - 2.10"@4mil - Data Matrix
  • 0.40" - 2.70"@5mil - Data Matrix
  • 0" - 3.50"@7.5mil - Data Matrix
  • 0" - 4.40"@10mil - Data Matrix
  • 1.10" - 1.40"@4mil - QR Code
  • 0.50" - 2.20"@5mil - QR Code
  • 0" - 3.30"@7.5mil - QR Code
  • 0" - 4.00"@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
  • Yellow
  • Twilight Black
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
11.85 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 0682017471037, 5052179191916, 5712505755846
UPC: 682017471037
EAN: 0682017471037, 5052179191916, 5712505755846
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola DS3508-HD20005R Barcode Scanner is also known as SYM-DS3508HD20005R or DS3508HD20005R.
