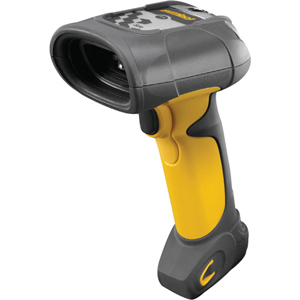

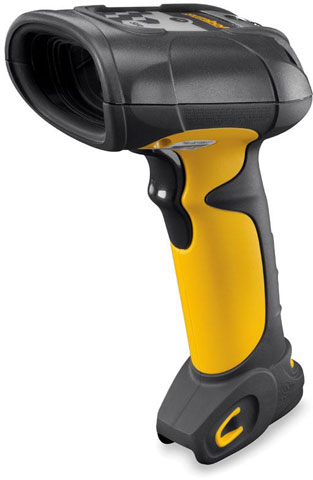

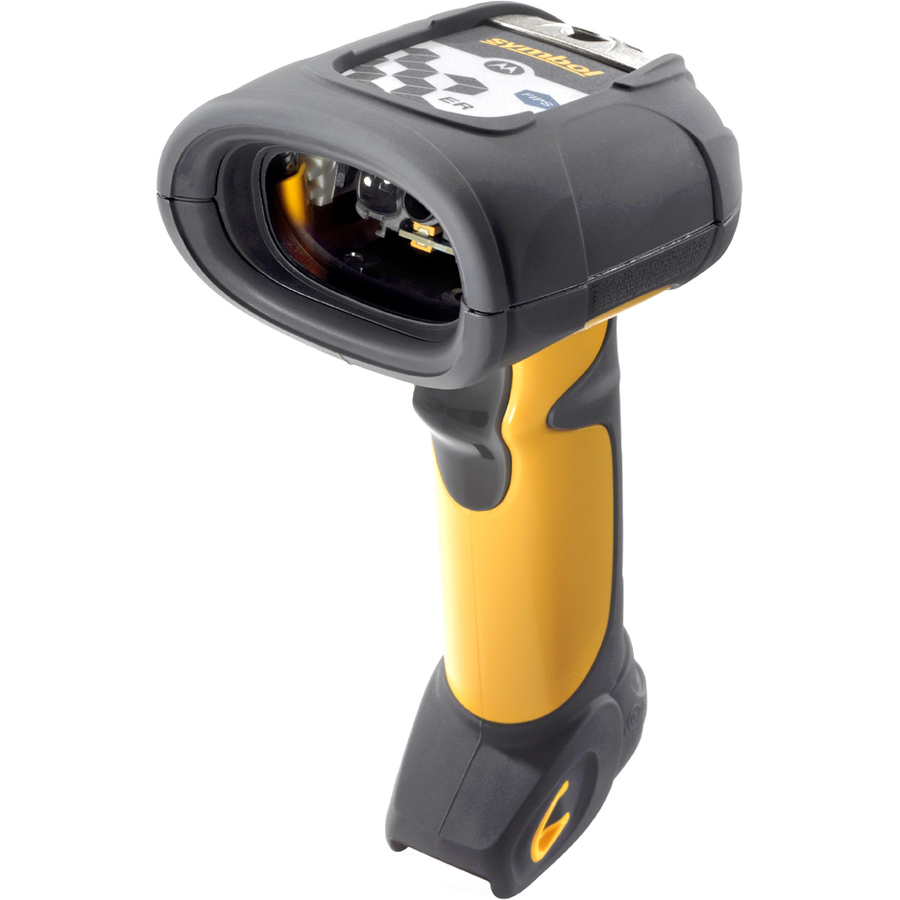

Motorola DS3508-ER20005R Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Motorola DS3500 Extended Range - SCANNER ONLY, Long Range 2D Imager, Rugged Handheld Corded Scanner. Does not include necessary cables. For the full kit purchase (Part# DS3508-ERAU0100ZR).
Rugged corded digital scanners

The Motorola DS3508-ER rugged, corded digital scanners bring comprehensive, high performance data capture to harsh industrial environments to improve business efficiency. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of one-dimensional (1D) and two-dimensional (2D) barcodes, images and direct part marks (DPM) as well as Item Unique Identification (IUID) support. Available in three models, the DS3508-ER Series of scanners can meet a wide variety of data capture needs in multiple industries.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 30 ft
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (omni-directional, truncated, Stacked, Stacked omni-directional, limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and Variants):
    • PDF417 (Standard, Macro)
    • microPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4 State Postal
    • IUID Support:
    • Supports iUiD parsing - the ability to read and separate IUID felds per application requirements
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (omni-directional, truncated, Stacked, Stacked omni-directional, limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and Variants):
    • PDF417 (Standard, Macro)
    • microPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4 State Postal
    • IUID Support:
    • Supports iUiD parsing - the ability to read and separate IUID felds per application requirements
  • Depth of Field:
    • 8.50" - 34.02"@7.50 mil - Code 39
    • 7.99" - 42.01"@10 mil - Code 39
    • 7.99" - 87.99"@20 mil - Code 39
    • 7.99" - 17.08 ft@55 mil - Code 39
    • 7.99" - 27.92 ft@100 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: DS3500-ER
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3508-ER
  • Product Name: DS3508-ER Handheld Barcode Reader

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 12.80 oz

Interfaces/Ports

  • Host Interface:
    • Keyboard Wedge
    • Serial
    • USB
    • IBM 46XX

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model DS3508-ER
Color Yellow/Gray
Scanner Type Imager
Scan Pattern Area
Form Factor Handheld
Scanner Capability 2D
Included Cables Scanner Only - No Cable
Ruggedness Rugged


Customer Review Summary

Recommended Accessories for Model: Motorola DS3508-ER Scanner
Protect Your Product

The Motorola DS3508-ER20005R is also known as MOT-DS3508ER20005R or DS3508ER20005R .
