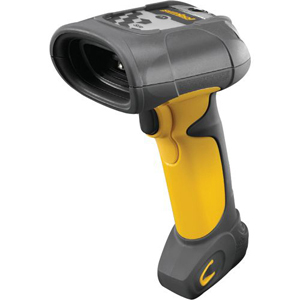

Motorola DS3508-DP20005R Barcode Scanner

Motorola DS3508 DPM - SCANNER ONLY. Direct Part Mark (DPM) Imager, Rugged Handheld Corded Scanner. Does not include necessary cables. See accessories.
  • Speed up customer's checkout experience
  • Perfect for applications that require direct association with a workstation or a notebook
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More

Full specifications (PDF)

Ability to read both 1D and 2D barcodes
The Motorola DS3508 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3508 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.

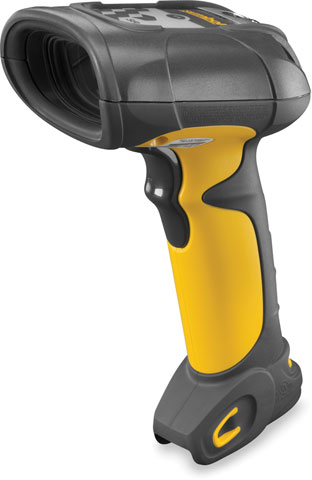

Motorola DS3508-DP20005R Overview

The DS3508 Series of rugged, omni-directional digital scanners bring comprehensive, high performance data capture to harsh industrial environments. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D bar codes, images and direct part marks (DPM), and supports Item Unique Identification (IUID).

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Codes:

  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 Plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • Code 11 (Standard, Matrix 2 of 5)
  • MSI Plessey
  • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
  • Base 32 (Italian Pharmacode)

PDF417 (And variants):

  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)

2D Codes:

  • TLC-39
  • Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)

Postal Codes:

  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japan Postal
  • Australian Postal
  • Dutch Postal
  • 4State Postal

DPM Marks (DPM Unit Only):

  • Datamatrix marks applied by dot -peening.All supported barcode types listed above marked by laser etching, chemical etching, ink marking, molding, stamping or casting methods on surfaces such as including metal, plastic, rubber or glass

IUID Support:

  • Supports IUID parsing. The ability to read and separate IUID fields per application requirements
Light Source:
Laser
Image Sensor Type:
CMOS
Depth of Field:
  • 1.10" - 1.60"@3mil - Code 39
  • 3.5"@4mil - Code 39
  • 4.2"@5mil - Code 39
  • 5.4"@7.5mil - Code 39
  • 1.10" - 9.2"@20mil - Code 39
  • 0.80" - 6.20"@13mil - 100% UPC
  • 3.70"@6.67mil - PDF417
  • 4.50"@10mil - PDF417
  • 3.20" - 5.60"@15mil - PDF417
  • 1" - 2.10"@4mil - Data Matrix
  • 0.40" - 2.70"@5mil - Data Matrix
  • 3.50"@7.5mil - Data Matrix
  • 4.40"@10mil - Data Matrix
  • 1.10" - 1.40"@4mil - QR Code
  • 0.50" - 2.20"@5mil - QR Code
  • 4"@10mil - QR Code
Scan Pattern:
Omni-directional
Physical Characteristics
Color:
  • Yellow
  • Black
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
11.85 oz
Miscellaneous
Package Contents:
  • Symbol DS3508-DP Handheld Bar Code Reader
  • Holster (Mounts To Pants Or Belt)
  • Intelli-Stand (Hands-Free Scanning)
  • Tool Balancer Pulley (Tethered)
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0799471562642, 5712505757000
UPC: 799471562642
EAN: 0799471562642, 5712505757000
UNSPSC: 43211701

Loading...

The Motorola DS3508-DP20005R is also known as SYM-DS3508DP20005R or DS3508DP20005R .
