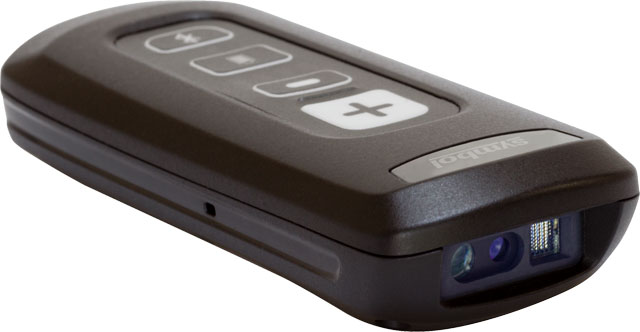

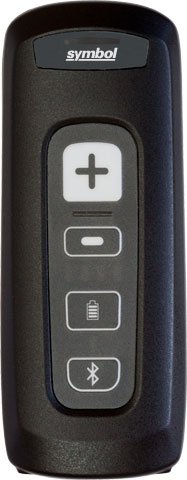

Motorola Symbol CS4070-SR – Barcode Scanner – 1D

Part Number: CS4070-SR00007ZMWW
Model: Symbol CS4070-SR

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Pocket
Scanner Capability
1D

Product Description:

  2D Imager, Standard Range, Cordless Bluetooth. Includes Micro USB Cable. Color: Black

Motorola Symbol CS4070-SR Barcode Scanner Model Overview

If your workers are using tablets, laptops and smartphones, they all share a common challenge "" the consumer-grade camera used to capture barcodes makes scanning slow, uncomfortable and impossible unless the barcode is perfect. The Symbol CS4070 is the easiest way to add enterprise-class scanning to any mobile device.
Motorola CS4070-SR00007ZMWW Barcode Scanner Overview

If your workers are using tablets, laptops and smartphones, they all share a common challenge - the consumer-grade camera used to capture bar codes makes scanning slow, uncomfortable and impossible unless the bar code is perfect. Introducing the Bluetooth Symbol CS4070, the easy way to add enterprise-class scanning to any mobile device. This affordable pocket-sized wireless device offers our most advanced bar code scanning technology, allowing your workers to capture virtually any 1D or 2D bar code in any condition in the time it takes to press the trigger - even if it is damaged, dirty or scratched. Its long range and omnidirectional scanning deliver true point-and-shoot simplicity. And the natural feel delivers comfortable no-fatigue scanning - no matter how many times a day your workers need to scan.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Image Sensor Type:
Imager
Depth of Field:
  • 2.9" - 8.4"@4mil - Code 39
  • 2.4" - 7.8"@5mil - Code 128
  • 1.6" - 13.1"@5mil - Code 39
  • 2.7" - 8.0"@5mil - PDF417
  • 2.5" - 9.7"@10mil - Data Matrix
  • 1.4" - 25.6"@100% UPCA
  • 1.6" - 29.6"@20.0mil - Code 39
Scan Pattern:
Omni-directional
Features:
Scan Button
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
8500
Battery Rechargeable:
Yes
Physical Characteristics
Color:
Black
Height:
1"
Width:
1.8"
Length:
4.4"
Weight (Approximate):
3.28 oz
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
  • PC
  • Smartphone
Certifications & Standards:
  • IP42
Laser Safety:
  • IEC62471:2006 (Ed.1.0)
  • EN62471:2008 (LED)
EMC:
  • FCC Part 15 Class B
  • ICES 003 Class B
  • EN 55022
  • EN 55024
  • EN 301 489-1
  • EN 301 489-17
Radio:
  • EN 300 328
Electrical Safety:
  • UL 60950-1
  • C22.2 No. 60950-1
  • EN 60950-1
  • IEC 60950-1
Environmental:
  • EN50581
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
