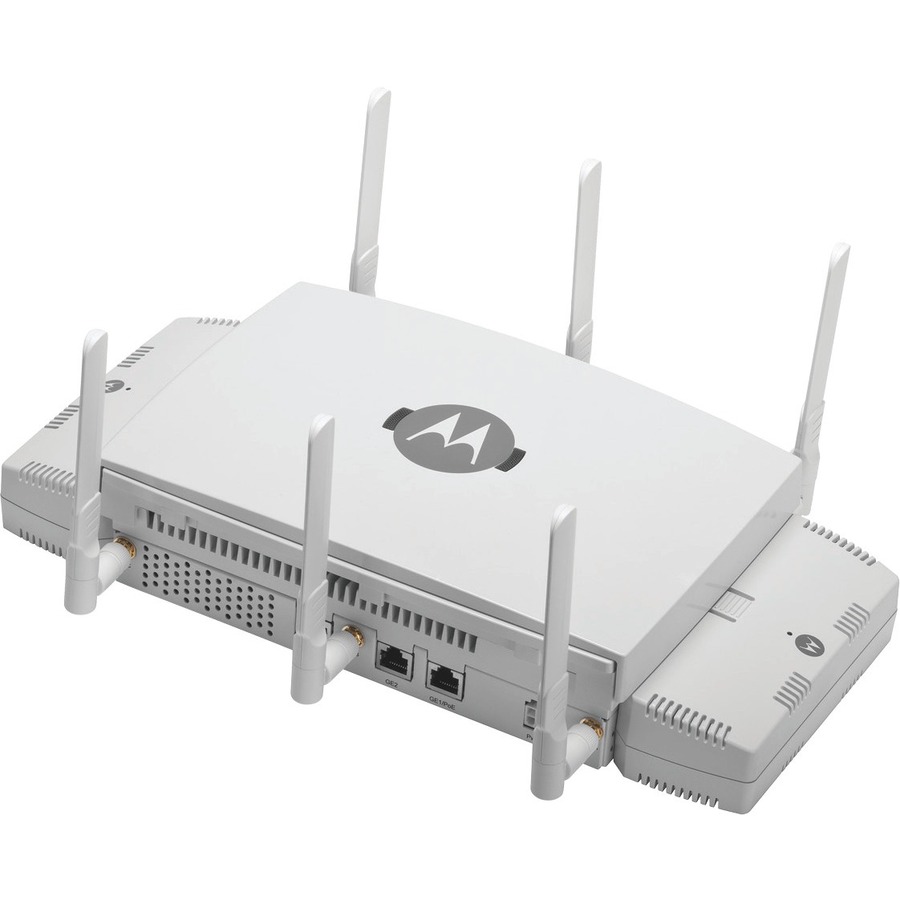

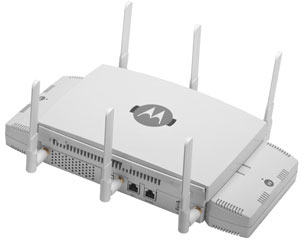

Motorola AP-8232-67040-WR Wireless Access Points

Part Number: AP-8232-67040-WR
Model: AP 8232
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  AP8232 802.11n/11ac Dual Radio Access Point Non-US Version
Explore all Motorola AP 8232 Wireless Access Points
Add to Quote
Motorola AP-8232-67040-WR Wireless Access Points
Motorola AP-8232-67040-WR Wireless Access Points
Motorola AP-8232-67040-WR Wireless Access Points Motorola AP-8232-67040-WR Wireless Access Points
Full specifications (PDF)

Motorola AP 8232 Wireless Access Points Model Overview

The AP-8232 builds upon the AP-8132 to provid high-speed network access for customers and staff with its modular design that enables you to more efficiently deploy applications where they are most needed. By leveraging your wireless network, the AP-8232 lets you deploy these applications without the time, effort and cost of having to install additional hardware and cabling.
Motorola AP-8232-67040-WR Wireless Access Points Overview
A NEW LEVEL OF BANDWIDTH, PERFORMANCE AND FLEXIBILITY

Every day, more of your workers are using more mobile devices to stay connected to the people and information they need to get the job done fast - and right. At the same time, mobile applications are becoming bandwidth-heavy: video calls are replacing voice calls and today's data applications are often rich with multimedia. As a result, there are more devices and more traffic constantly pressuring the performance of your wireless LAN.
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
6
Number of External Antennas:
6
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
1.27 Gbit/s
Wireless Security:
  • WPA2
  • WPA
Features:
  • Quality of Service (QoS)
  • MIMO Technology
  • LED Indicator
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
Yes
Management Port:
Yes
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.8"
Width:
6"
Depth:
9"
Weight (Approximate):
3.30 lb
Miscellaneous
Certifications & Standards:
Safety:
  • UL
  • cUL
  • 60950-1
  • IEC
  • EN60950-1
  • UL2043
Radio Approvals:
  • FCC (USA)
  • EU
  • TELEC
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
  • 802.11d
  • 802.11i
  • 802.1p
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0024606618995, 0080479985978
UPC: 024606618995, 080479985978
EAN: 0024606618995, 0080479985978
UNSPSC: 43222631
