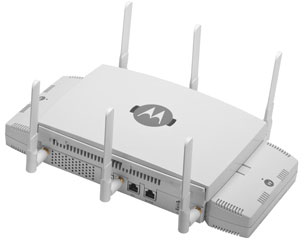

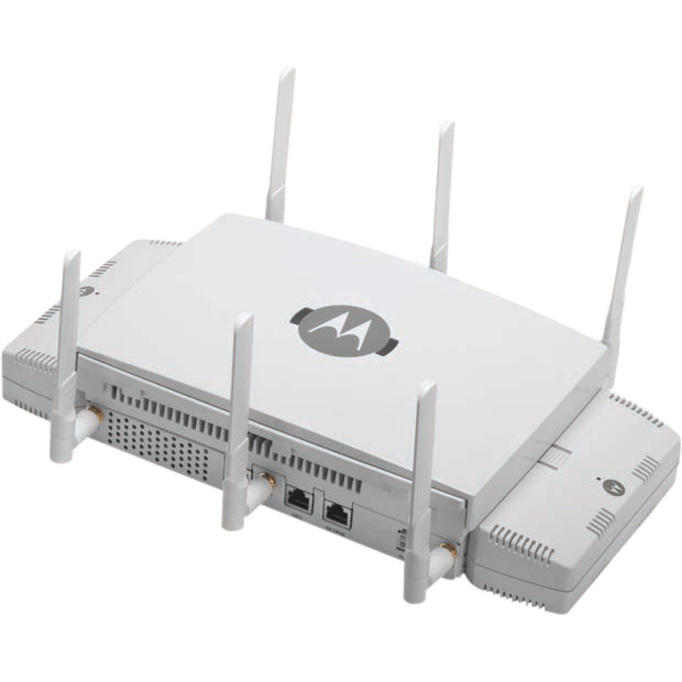

Motorola AP-8232-67040-US Access Point


(No reviews)

Be the first to

Write a Review
Motorola AP 8232 - 802.11n/11ac Dual Radio Access Point. US Version
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Easy migration to 5th generation 802.11ac Wi-Fi

The AP-8232 builds upon the AP-8132 to provid high-speed network access for customers and staff with its modular design that enables you to more efficiently deploy applications where they are most needed. By leveraging your wireless network, the AP-8232 lets you deploy these applications without the time, effort and cost of having to install additional hardware and cabling.

Technical Information

  • Wireless LAN Standard: IEEE 802.11ac
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.18 GHz
  • Wireless Transmission Speed: 1.27 Gbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: RP-SMA Connector
  • Features:
    • Quality of Service (QoS)
    • MIMO Technology
  • Wireless Security:
    • WPA2
    • WPA

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 8232
  • Product Name: AP 8232 802.11ac Access Point

Physical Characteristics

  • Height: 1.8"
  • Width: 6"
  • Depth: 9"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 3.30 lb


  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes
  • USB: Yes
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Serial Port: No
  • Network (RJ-11): No
  • Management Port: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Safety:
    • UL
    • cUL
    • 60950-1
    • IEC
    • EN60950-1
    • UL2043
    • Radio Approvals:
    • FCC (USA)
    • EU
    • TELEC
    • IEEE Standards:
    • 802.11a
    • 802.11b
    • 802.11g
    • 802.11n
    • 802.11ac
    • 802.11d
    • 802.11i
    • 802.1p

Power Description

  • Power Source:
    • AC Adapter
    • PoE

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model AP 8232
Wireless Type 802.11a/b/g/n/ac
