Motorola AP-7522E-67030-WR Wireless Access Points

Part Number: AP-7522E-67030-WR
Model: AP 7522E
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
2.47 GHz5.85 GHz
Wireless Transmission Speed
866.70 Mbit/s
MIMO Technology
Yes

Product Description:

  Express 802.11ac AP, Internal Antenna WR
Explore all Motorola AP 7522E Wireless Access Points
Add to Quote
Motorola AP-7522E-67030-WR Wireless Access Points
Motorola AP-7522E-67030-WR Wireless Access Points
Motorola AP-7522E-67030-WR Wireless Access Points
Motorola AP-7522E-67030-WR Wireless Access Points
Motorola AP-7522E-67030-WR Wireless Access Points
Motorola AP-7522E-67030-WR Wireless Access Points
Motorola AP-7522E-67030-WR Wireless Access Points Motorola AP-7522E-67030-WR Wireless Access Points Motorola AP-7522E-67030-WR Wireless Access Points Motorola AP-7522E-67030-WR Wireless Access Points Motorola AP-7522E-67030-WR Wireless Access Points Motorola AP-7522E-67030-WR Wireless Access Points
Full specifications (PDF)

Motorola AP 7522E Wireless Access Points Model Overview

Get 802.11ac speed at a low price point with the AP 7522E access point. The comprehensive feature set and 2X2 MIMO provide all your mobile users with a dependable, high-performance wireless connection. With our high-powered radios, you’ll need fewer access points, delivering maximum speed for a minimum cost. And with its sleek, understated look, the internal antenna version of the AP 7522E is at home anywhere in your environment — including customer-facing public spaces. Using WiNG Express means you can set up the network without the need for a large IT team. You can run up to 25 AP 7522E access points - without the cost of a dedicated network management controller.
Motorola AP-7522E-67030-WR Wireless Access Points Overview
802.11AC WI-FI SPEED AND THROUGHPUT - ALL AT A LOW COST.

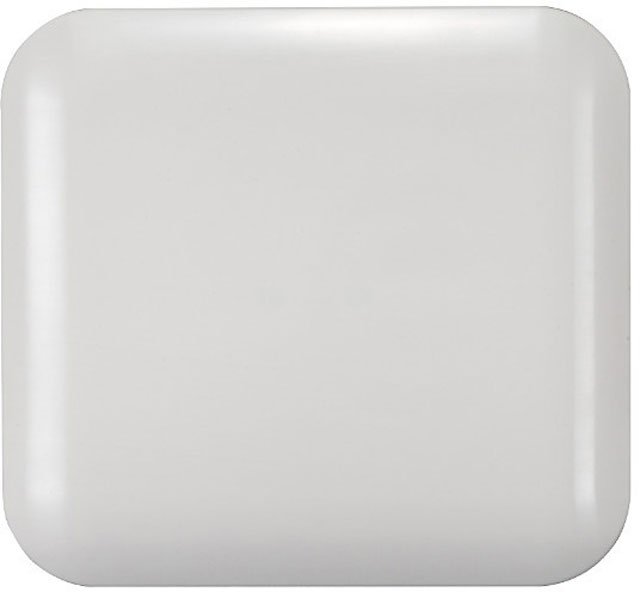

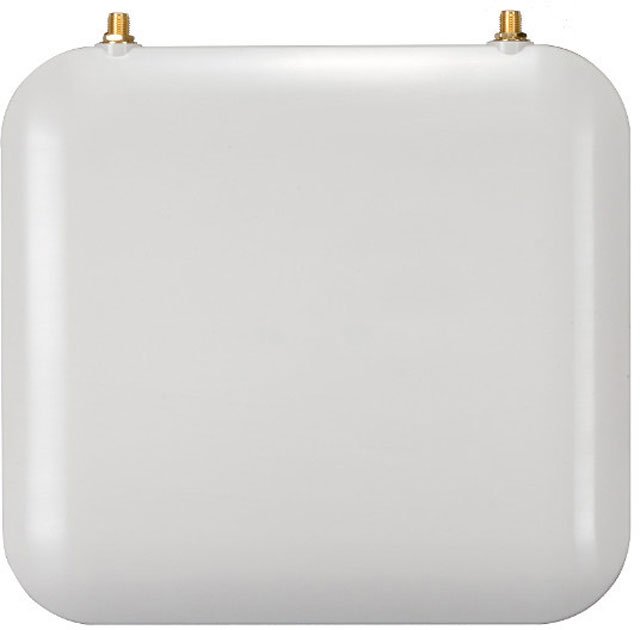

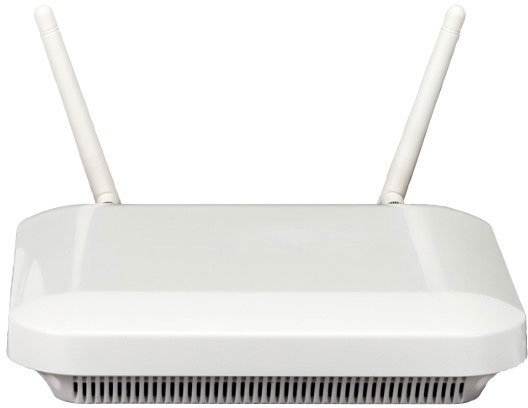

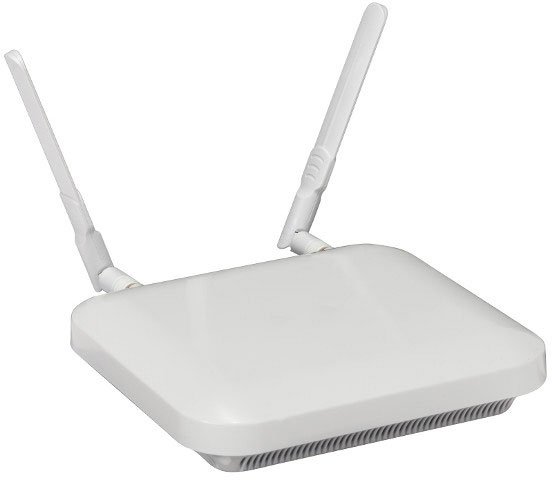

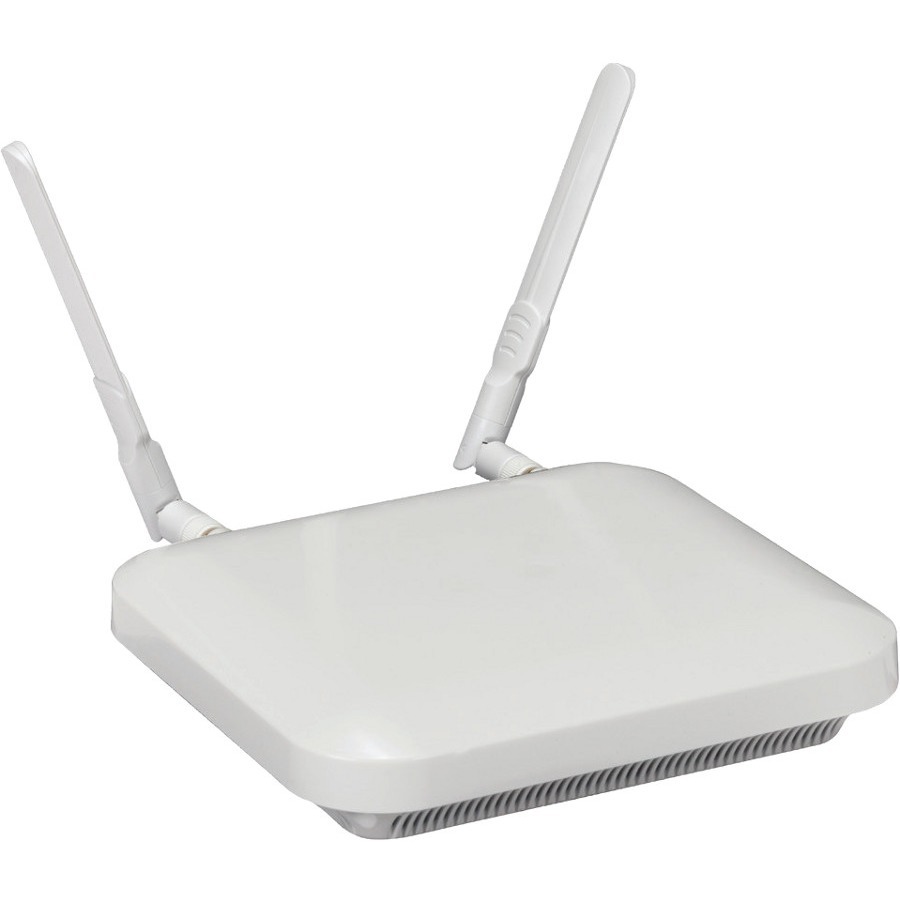

Introducing the AP 7522E from Motorola Solutions, delivering 802.11ac speeds at half the cost of many of its competitors. Now, you can support virtually any of the mobile devices on your network running today's demanding applications, with a design that fits right in to any area in your environment. The 802.11n radio ensures backward compatibility with every mobile device in use in your operation today - and 256 QAM modulation boosts the bandwidth of the 802.11n radio to 802.11ac levels. Choose internal antennas for a sleek understated look that is ideal in customer facing or carpeted office areas, or external antennas that allow you to choose the antennas you need to achieve maximum range and performance in demanding industrial areas.
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 2.47 GHz
  • 5.85 GHz
Wireless Transmission Speed:
866.70 Mbit/s
MIMO Technology:
Yes
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.6"
Width:
6.5"
Depth:
7.1"
Weight (Approximate):
1.80 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0053926225255, 0088442827911
UPC: 053926225255, 088442827911
EAN: 0053926225255, 0088442827911
UNSPSC: 43222631

Recommended Accessories

Category

  • Access Point Accessories (1)
  • Network Antennas (2)
  • Wireless Antenna (5)

Recommended Accessories for Model: Motorola AP-7522E-67030-WR Wireless Access Points

Top Access Point Accessories Purchased With Motorola AP-7522E-67030-WR

Top Network Antennas Purchased With Motorola AP-7522E-67030-WR

  • Zebra ML-2452-APA2-02 Network Antennas
    Zebra ML-2452-APA2-02 Network Antennas
    Wireless Antenna, Symbol Antenna, Indoor Environment, 2.4GHz/5GHz, 3 dBi/5 dBi, Horizontal/Vertical Polarization, Color: White, Connector Type: RP-SMA(M)
    In Stock
    $30.35
    Add to Quote
  • Zebra ML-2452-APA2-01 Network Antennas
    Zebra ML-2452-APA2-01 Network Antennas
    Wireless Antennas, Motorola, Antenna: 2.4/5 GHz, Indoor: Type: Dipole (Paddle): Gain: 3dBi/2.4GHz, 4dBi/5GHz: Beam Width: E-Plane: 35 degrees, H-Plane: 360 degrees: Connector: RP-SMA Male
    In Stock
    $37.00
    Add to Quote

Top Wireless Antenna Purchased With Motorola AP-7522E-67030-WR

See All Wireless Antenna for Motorola AP-7522E-67030-WR Wireless Access Points >
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-7522E-67030-WR Wireless Access Points is also known as MOT-AP7522E67030WR or AP-7522E-67030-WR.
