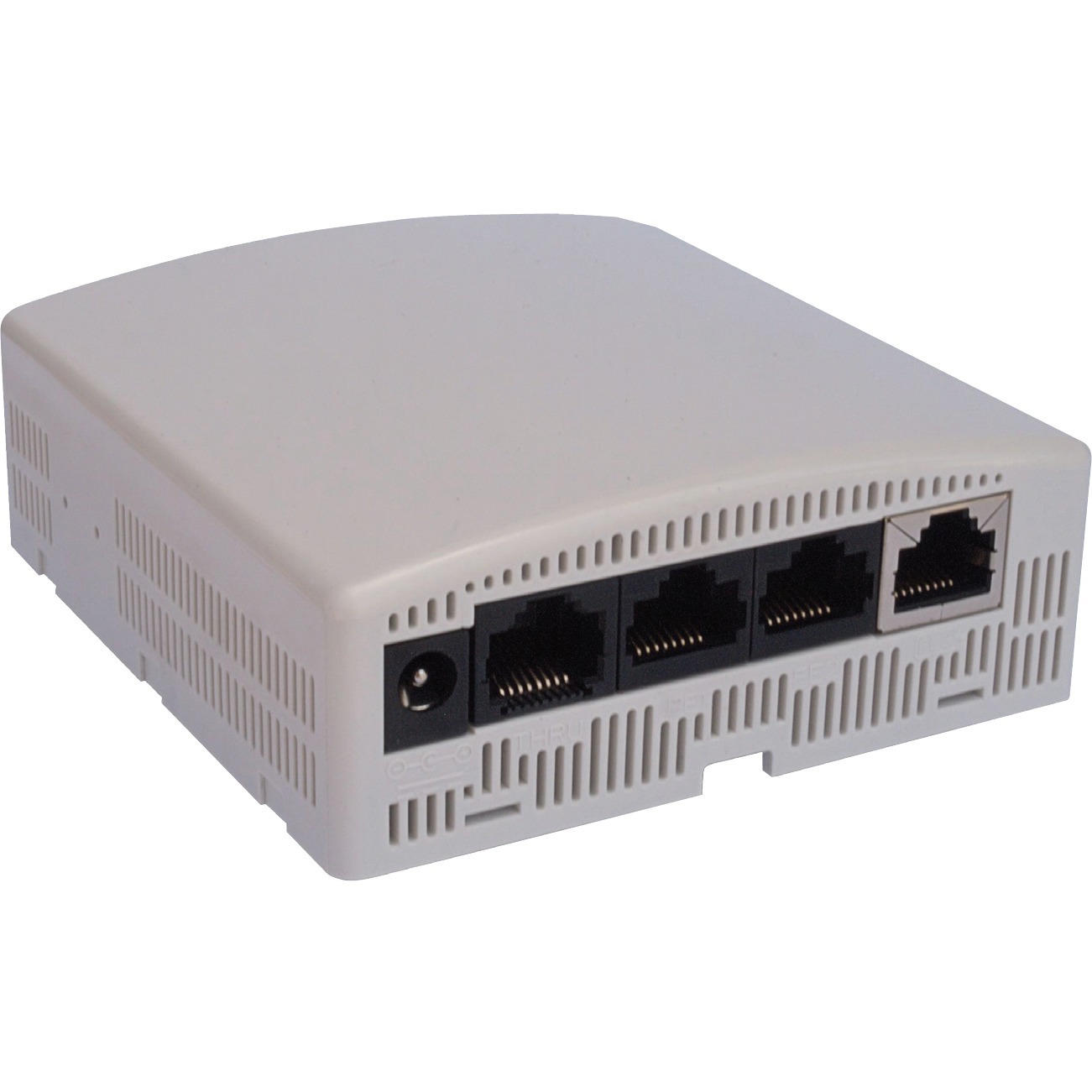

Motorola AP-7502-67030-US Access Point

The Motorola AP-7502-67030-US Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 7502 - Wallplate 802.11n/ac, Dual Radio, US Only Version
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • This wireless access point uses IEEE 802.11ac technology with steadfast speed of up to 867 Mbit/s for optimal wireless signals
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
  • Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Read More
Discontinued Need Assistance?
Add to Quote
Motorola AP 7502 Access Point Model Overview
Introducing the easiest and most cost-effective way to deliver high-speed wireless connectivity in hotel and patient rooms, classrooms and apartments — the AP 7502 packs the power of 802.11ac into a pocket-sized access point. The dual 802.11n and 802.11ac radios, five internal antennas, plus a host of Motorola-only features provide a dependable high-performance wireless connection for every user and every mobile device in the room — 2.4 and 5 GHz. Its revolutionary small size makes it easy to install anywhere, while the understated tamper-proof design easily hides in plain sight. Deployment and management couldn’t be easier or faster — the AP 7502 can be installed in just a few minutes, automatically configured and managed remotely.
Motorola AP-7502-67030-US Access Point Overview

EASILY DELIVER COST-EFFECTIVE HIGH-PERFORMANCE WIRELESS CONNECTIVITY IN PUBLIC-FACING MICRO-CELL ENVIRONMENTS

Whether you are responsible for a hotel, assisted living facility, dormitory housing or an apartment complex, you are challenged with providing high-speed Internet access in a challenging environment with many rooms - rooms with RF-blocking walls, floors and doors. You need a cost-effective way to provide the dependable desktop style wireless speeds your users expect in-room on however many consumer mobile devices they may own - including 2.4 GHz and the newer 5 GHz smartphones and tablets. To further complicate the challenge, today's users are watching videos, making video calls and posting on multi-media heavy social networking websites on their mobile devices - all bandwidth-heavy applications that require a latency- and jitter-free connection.

Technical Information
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
5
Number of Internal Antennas:
5
Antenna Gain:
  • 3 dBi
  • 5 dBi
Antenna Type:
Omnidirectional Antenna
Wireless Transmission Speed:
867 Mbit/s
Wireless Security:
  • WPA2
  • IEEE 802.11i
  • IEEE 802.1x
Features:
  • Quality of Service (QoS)
  • MIMO Technology
  • LED Indicator
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
  • Web Based Management
  • SSH
  • SNMPv3
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.4"
Width:
3.7"
Depth:
3.5"
Weight (Approximate):
8.11 oz
Miscellaneous
Package Contents:
  • 802.11ac/802.11n Dual Radio Wallplate AP
  • Universal Mounting Bracket
  • Decorative Trimplate
Certifications & Standards:
  • FCC 15.247 15.407
  • EN300 328
  • EN 301 893
  • UL
  • UL 2043
  • FCC Part 15 Subpart B
  • EN 55022: 2010 + A1:2007
  • ICES - 003 (Class B) EN 55024: 2010 + A1: 2001 + A2: 2003
  • CE
  • IC
  • FCC
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
  • 802.11i
  • 802.1x
  • 802.1Q
  • 802.1D
  • 802.1P
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0080479614373, 0788599318101
UPC: 080479614373, 788599318101
EAN: 0080479614373, 0788599318101
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-7502-67030-US Access Point is also known as MOT-AP750267030US or AP-7502-67030-US.
