Motorola AP-7131N-66E48-US Access Point


5.0

(1 reviews)

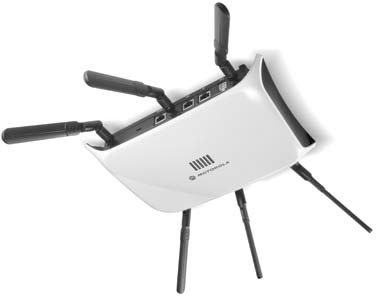

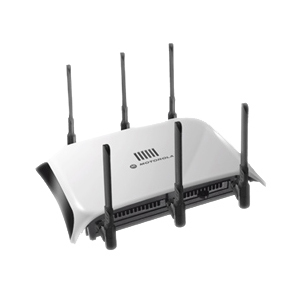

Motorola AP-7131 - Wireless Access Point/Bridge
AP 7131 delivers the throughput, coverage and resiliency required to build an all wireless enterprise

The Motorola AP 7131 802.11a/b/g/n access point delivers the throughput, coverage and resiliency required to build an all wireless enterprise. The tri-radio modular design provides support for high-speed wireless voice and data services, mesh networking and non-data applications such as IPS. The fully DFS compliant 802.11n Draft 2.0 AP 7131 offers speeds up to 600 Mbps per Access Point. six times the bandwidth of an 802.11a/g Access Point. The Adaptive AP architecture allows the device to offer two modes of operation, without any firmware change either as a standalone access point or as a wireless switch adopted access point for centralized management.

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 3
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.46 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • Intrusion Prevention System
    • AAA
    • IPSec
    • Stateful firewall
    • IP filtering
    • NAT
    • WPA2
    • WPA

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131
  • Product Name: AP-7131 Wireless Access Point

Physical Characteristics

  • Height: 1.5"
  • Depth: 5.5"
  • Weight (Approximate): 2.67 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • AP-7131 Wireless Access Point
    • 6 Element Facade Antenna Module
    • AP-7131 Wireless Access Point
    • 6 Element Facade Antenna Module
  • Additional Information:
    • 3X3 MIMO with 2 Spatial Streams
    • Reduced Interframe Spacing

Management & Protocols

  • Management:
    • DHCP
    • IEEE 802.1Q VLAN
    • IEEE 802.1p QoS
    • SNMPv3
    • Command line interface

Power Description

  • Power Source: AC Adapter

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model AP 7131
Wi-Fi Band 2.4GHz, 5GHz
MIMO 3x3:2
Data Transfer Rate 450 Mbps
Power PoE, AC
Antenna Gain 5 dB, 3 dB
Antenna Internal
Radio Count Dual
Environment Indoor
Wireless Type 802.11a/b/g/n
Mesh Yes


Customer Review Summary


5.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


5.0

Excellent AP

By Keith

from Indy

7/2/2013

Verified Buyer

Comments about Motorola AP-7131 AP-7131N-66E48-US:

These are great for warehouses. One AP will cover 30,000+ sq. ft. Does not come with a PoE injector or power cord. You must purchase the AP-PSBIAS-1P3-AFR injector for this to get enough power. Your regular PoE switches and most PoE injectors will not supply enough wattage (as I found out). It will require 25-30W. The configuration options can be a bit overkill, at least they were for my use. But I can see where they can come in handy for specific applications. The mounting options are pretty limited. I had to fabricate a mount to hang these off of an I-beam. Check the manual for pics and examples of stock mounting. Overall, these are great and would buy again.
