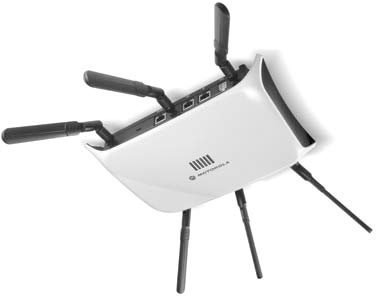

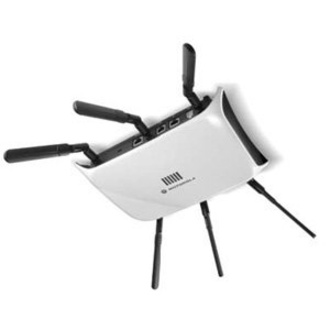

Motorola AP-7131-66048-WR Access Point

The Motorola AP-7131-66048-WR Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP-7131 - AP-7131dual Radio 802.11n 6 Element Facade Antenna Module
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • With IEEE 802.11n standard and up to 300 Mbit/s data transfer rates, this wireless access point enables efficient network performance
  • Gigabit Ethernet port for ultra-fast wired network speeds
Read More
Discontinued Need Assistance?
Add to Quote
Motorola AP 7131 Access Point Model Overview
The Motorola AP 7131 802.11a/b/g/n access point delivers the throughput, coverage and resiliency required to build an all wireless enterprise. The tri-radio modular design provides support for high-speed wireless voice and data services, mesh networking and non-data applications such as IPS. The fully DFS compliant 802.11n Draft 2.0 AP 7131 offers speeds up to 600 Mbps per Access Point. six times the bandwidth of an 802.11a/g Access Point. The Adaptive AP architecture allows the device to offer two modes of operation, without any firmware change either as a stand-alone access point or as a wireless switch adopted access point for centralized management.
Motorola AP-7131-66048-WR Access Point Overview

The 802.11a/b/g/n AP-7131 Access Point delivers the throughput, coverage and resiliency required to enable a wireless enterprise. The tri-radio expandable design provides simultaneous support for three major networking functions: high-speed wireless voice and data services for client access, self-healing mesh networking and non-data applications including Wireless IPS sensor functionality for around the clock protection of the wireless and wired network.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.73 GHz
Total Number of Antennas:
6
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WPA
  • WPA2
  • 3 DES IPSec encryption
  • ACLS
  • TLS
  • TTLS
  • PEAP
  • AAA
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:

DHCP server

Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.1"
Depth:
5.5"
Weight (Approximate):
2.22 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0084760697595, 0799471567395
UPC: 084760697595, 799471567395
EAN: 0084760697595, 0799471567395
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-7131-66048-WR Access Point is also known as SYM-AP713166048WR or AP-7131-66048-WR.
