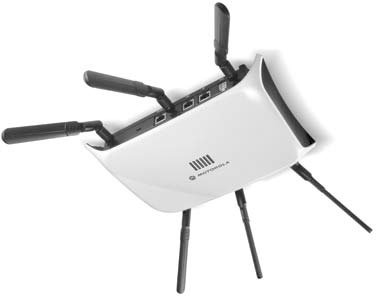

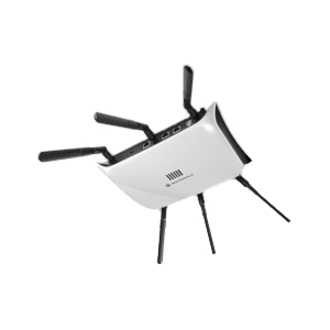

Motorola AP-7131-60028-WR Access Point

The Motorola AP-7131-60028-WR Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP-7131 - AP-7131 Single Radio 802.11n 6 Element Facade Antenna Module
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
  • Up to 10x faster than standard Ethernet connectivity for your wired network
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
  • Its management capability provides efficient control over setup and configuration of your network
Read More
Discontinued Need Assistance?
Add to Quote
Motorola AP 7131 Access Point Model Overview
The Motorola AP 7131 802.11a/b/g/n access point delivers the throughput, coverage and resiliency required to build an all wireless enterprise. The tri-radio modular design provides support for high-speed wireless voice and data services, mesh networking and non-data applications such as IPS. The fully DFS compliant 802.11n Draft 2.0 AP 7131 offers speeds up to 600 Mbps per Access Point. six times the bandwidth of an 802.11a/g Access Point. The Adaptive AP architecture allows the device to offer two modes of operation, without any firmware change either as a stand-alone access point or as a wireless switch adopted access point for centralized management.
Motorola AP-7131-60028-WR Access Point Overview

The 802.11a/b/g/n AP-7131 Access Point delivers the throughput, coverage and resiliency required to enable a wireless enterprise. The tri-radio expandable design provides simultaneous support for three major networking functions: high-speed wireless voice and data services for client access, self-healing mesh networking and non-data applications including Wireless IPS sensor functionality for around the clock protection of the wireless and wired network.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.72 GHz
Total Number of Antennas:
6
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WPA
  • WPA2
  • 802.11i
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
Yes
Management Port:
Yes
Management & Protocols
Management:
  • Java web-based graphical user interface
  • CLI
  • VLAN
  • SNMP v3
  • DHCP
  • QoS
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.1"
Depth:
5.5"
Weight (Approximate):
2.23 lb
Miscellaneous
Additional Information:

Metal, plenum-rated housing (UL2043)

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0799471567371, 5052178475123
UPC: 799471567371
EAN: 0799471567371, 5052178475123
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-7131-60028-WR Access Point is also known as SYM-AP713160028WR or AP-7131-60028-WR.
