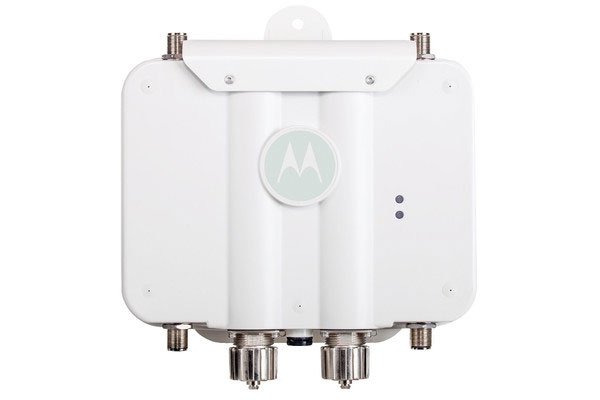

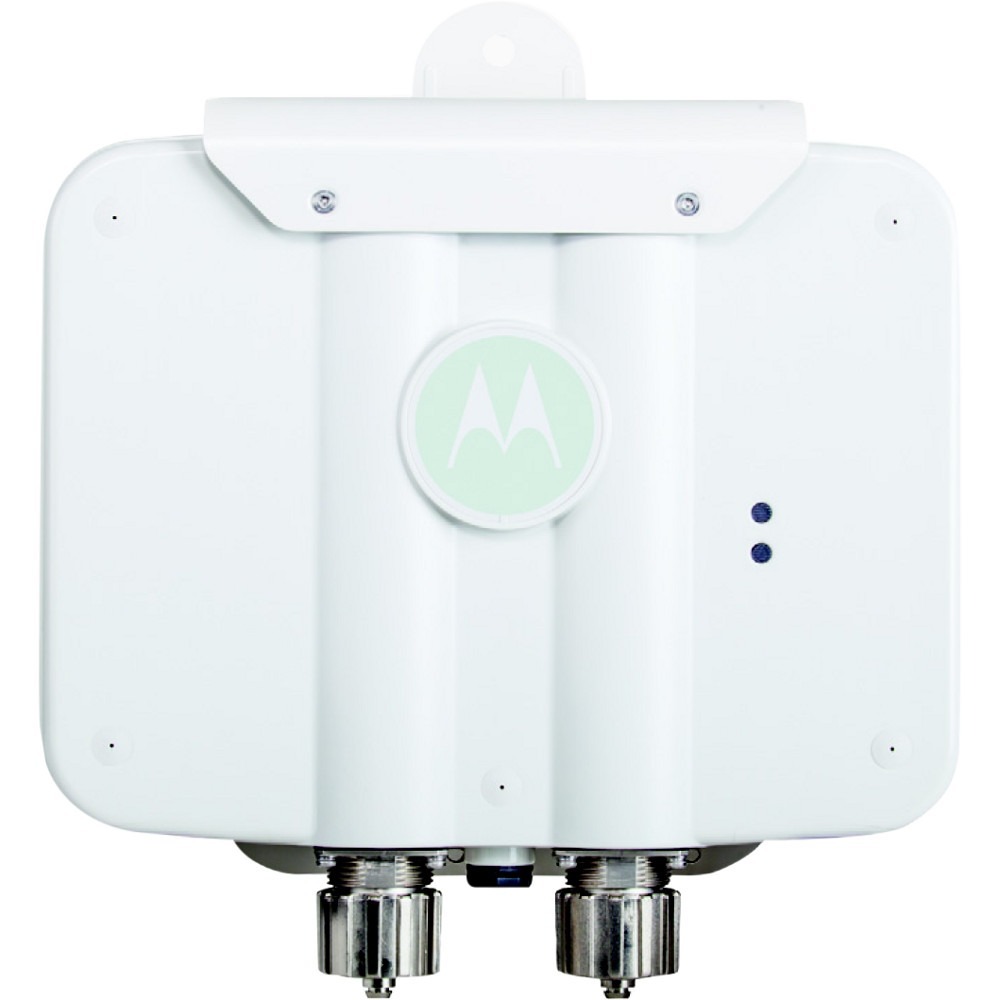

Motorola AP-6562E-66030-US Access Point

The Motorola AP-6562E-66030-US Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 6562 - AP 6562: EXPRESS 802.11N AP, Internal Antenna US
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • With IEEE 802.11n standard and up to 300 Mbit/s data transfer rates, this wireless access point enables efficient network performance
  • Gigabit Ethernet port for ultra-fast wired network speeds
Read More
Discontinued Need Assistance?
Add to Quote
Motorola AP 6562 Access Point Model Overview
The AP 6562 access point is designed to help lower the cost of deploying and operating a secure, reliable, and targeted outdoor wireless network, all powered by the WiNG 5 architecture. Choose from two models: an integrated antenna model for fast wall mounting or an external antenna model for pole mounting and remote wireless backhaul. The access point features dual 802.11n 2x2 radios with superior receive and transmit performance, a console port for configuration, and a GiGE LAN/WAN POE-enabled port for local or remote network connectivity. With it's WiNG 5 intelligence, this access point seamlessly extends your network to the outdoors with higher throughput along with direct forwarding, security, QoS services and site survivability.
Motorola AP-6562E-66030-US Access Point Overview
Designed for extending Wi-Fi coverage to outdoor areas, the AP 6562 provides a cost-effective means of supporting the most demanding wireless applications and large number of wireless devices. Ideal for distribution centers, hospitality, retail, and education campuses, the AP 6562 can handle the increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network.

The AP 6562 access point is designed to help lower the cost of deploying and operating a secure, reliable, and targeted outdoor wireless network, all powered by the WiNG 5 architecture. Choose from two models: an integrated antenna model for fast wall mounting or an external antenna model for pole mounting and remote wireless backhaul. The access point features dual 802.11n 2x2 radios with superior receive and transmit performance, a console port for configuration, and a GiGE LAN/WAN POE-enabled port for local or remote0 network connectivity. With it's WiNG 5 intelligence, this access point seamlessly extends your network to the outdoors with higher throughput along with direct forwarding, security, QoS services and site survivability.
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Gain:
7 dBi
Wireless Transmission Speed:
300 Mbit/s
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Wall Mountable
Height:
9.8"
Width:
9.1"
Depth:
2.6"
Weight (Approximate):
2.90 lb
Miscellaneous
Certifications & Standards:
Safety:
  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
  • UL 2043
Radio Approvals:
  • FCC (USA)
  • Industry Canada
  • CE (Europe)
  • TELEC pending (Japan)
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.3at
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0024606618810, 0645015432967, 0783555134238
UPC: 024606618810, 645015432967, 783555134238
EAN: 0024606618810, 0645015432967, 0783555134238
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-6562E-66030-US Access Point is also known as MOT-AP6562E66030US or AP-6562E-66030-US.
