Motorola AP-6521E-60020-WR Access Point

The Motorola AP-6521E-60020-WR Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 6521 - AP 6521: EXPRESS 802.11N AP, EXT ANT WR
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
  • Gigabit Ethernet port for ultra-fast wired network speeds
Read More

Need a different version? See all Motorola AP 6521 Access Points

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare

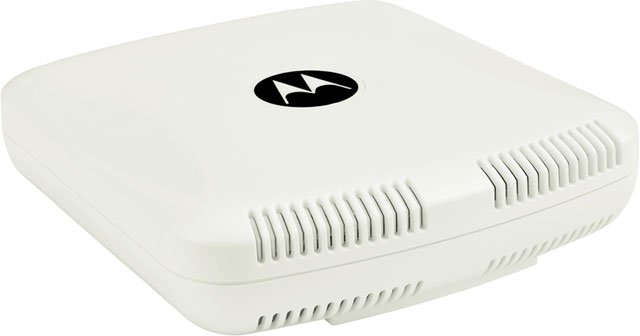

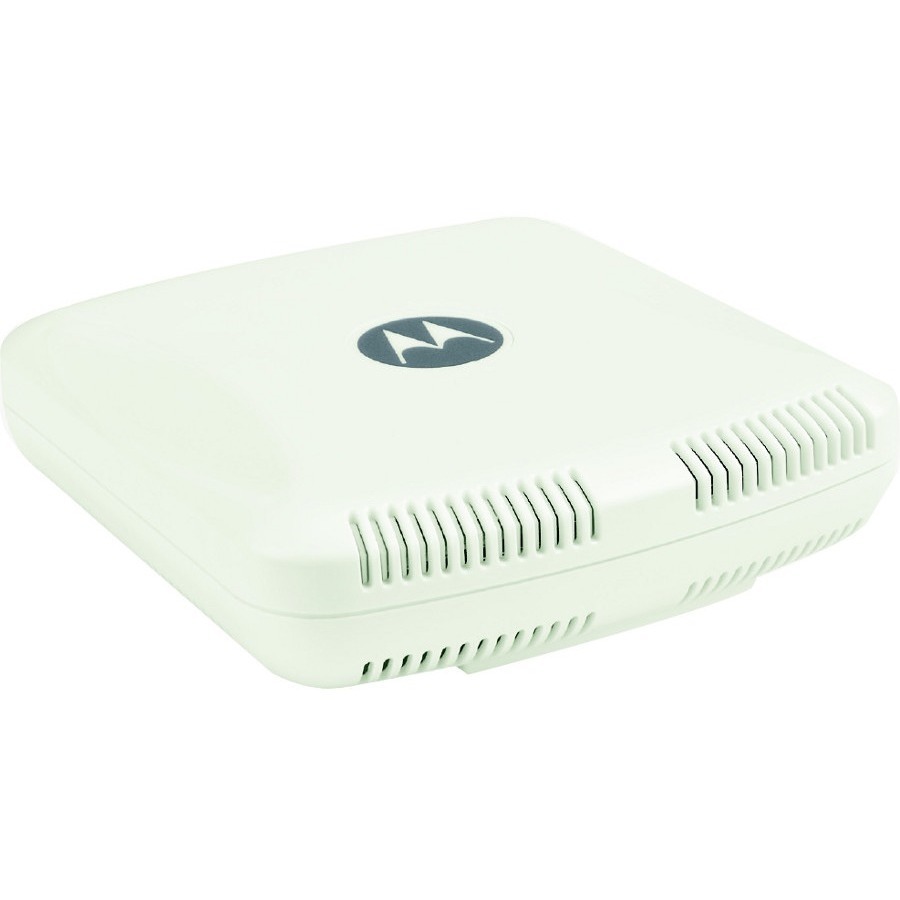

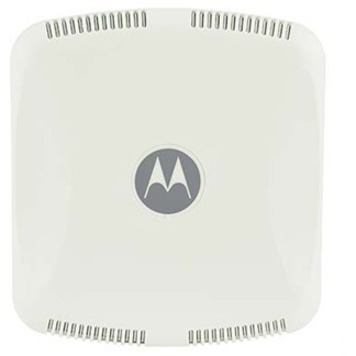

Motorola AP-6521E-60020-WR Access Point
Motorola AP-6521E-60020-WR Access Point Motorola AP-6521E-60020-WR Access Point Motorola AP-6521E-60020-WR Access Point
Motorola AP-6521E-60020-WR Access Point
Motorola AP-6521E-60020-WR Access Point
Motorola AP-6521E-60020-WR Access Point
Full specifications (PDF)
Motorola AP 6521 Access Point Model Overview
The AP 6521 is a versatile access point with the cost-efficiency of a single radio. With it's WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6521 can also serve as a virtual controller and coordinate the operation of up to 23 neighboring access points.
Motorola AP-6521E-60020-WR Access Point Overview
The AP 6521E is a versatile access point with the cost-efficiency of a single radio. With it's WiNG Express intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6521E can also serve as a virtual controller and coordinate the operation of up to 24 additional access points.

ENTERPRISE-GRADE WIRELESS FOR MIDSIZE BUSINESSES
WiNG Express brings the power of enterprise award-winning WiNG 5 architecture to midsize businesses. With WiNG Express, smaller businesses now have access to the latest wireless technology and always-on capability trusted by large enterprise businesses. In addition, the portfolio contains purpose built enterprise-grade products for midsize businesses that will allow customers to scale their network with their business.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
2
Number of External Antennas:
2
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
SSID
Features:
  • MIMO Technology
  • Quality of Service (QoS)
  • LED Indicator
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
  • QoS
  • VLAN
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.6"
Width:
5.5"
Depth:
6"
Weight (Approximate):
2.50 lb
Miscellaneous
Certifications & Standards:
Safety:
  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
  • UL 2043
Radio Approvals:
  • FCC
  • CE
IEEE Standards:
  • 802.3af
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
Item Numbers
GTIN: 0080479351193
UPC: 080479351193
EAN: 0080479351193
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-6521E-60020-WR Access Point is also known as MOT-AP6521E60020WR or AP-6521E-60020-WR.
