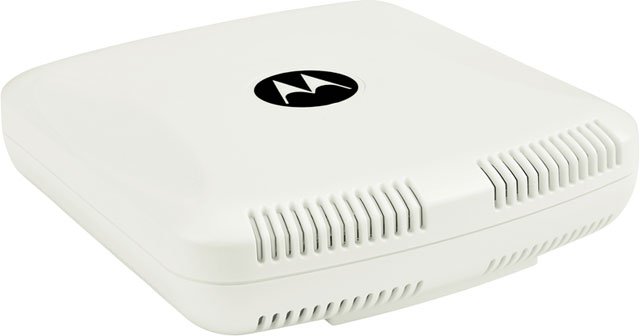

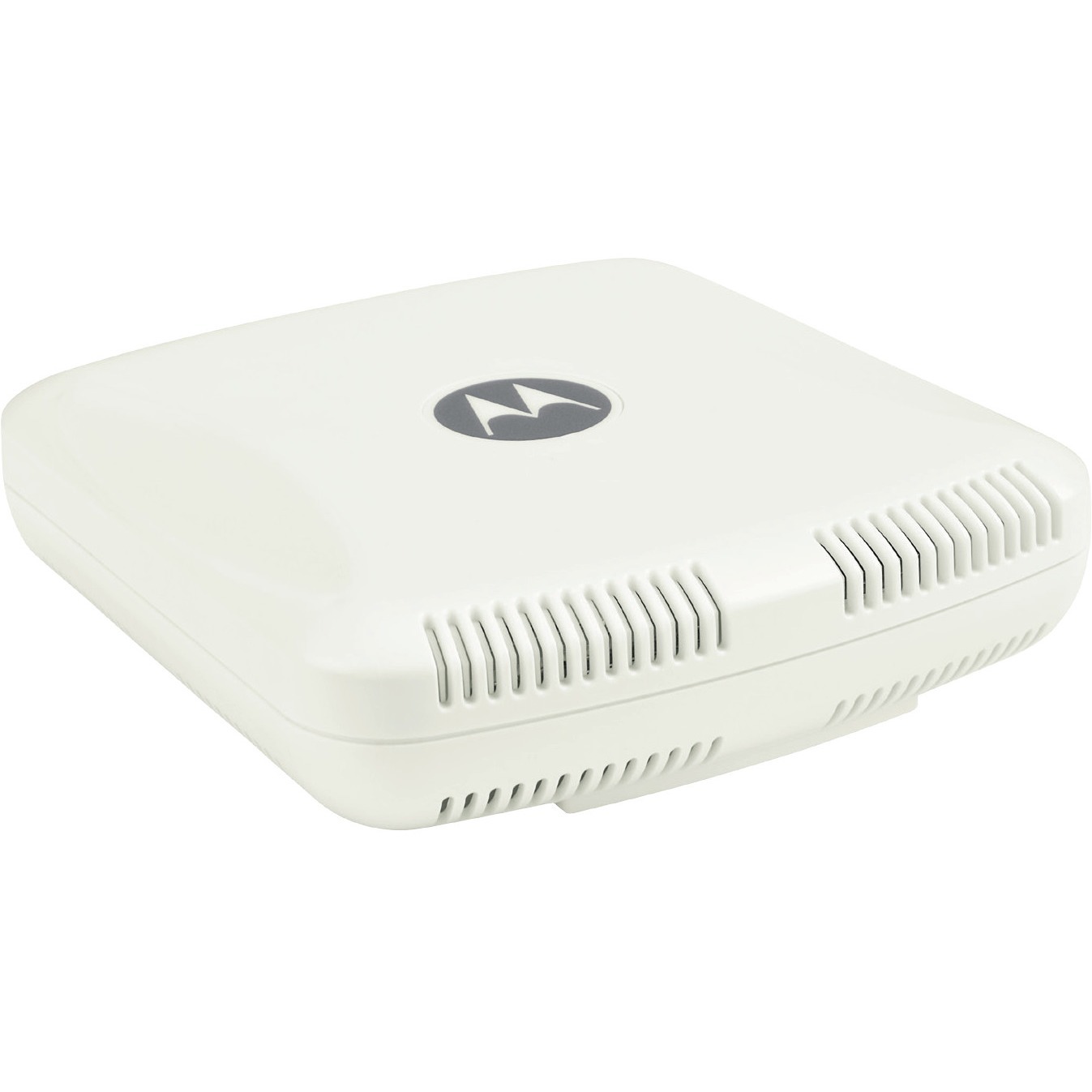

Motorola AP-6521E-60010-US Access Point

The Motorola AP-6521E-60010-US Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 6521 - AP 6521: EXPRESS 802.11N AP, Internal Antenna US
  • Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
  • With IEEE 802.11n standard and up to 300 Mbit/s data transfer rates, this wireless access point enables efficient network performance
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
Read More

Need a different version? See all Motorola AP 6521 Access Points

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Motorola AP-6521E-60010-US Access Point
Motorola AP-6521E-60010-US Access Point Motorola AP-6521E-60010-US Access Point
Motorola AP-6521E-60010-US Access Point
Motorola AP-6521E-60010-US Access Point
Full specifications (PDF)
Motorola AP 6521 Access Point Model Overview
The AP 6521 is a versatile access point with the cost-efficiency of a single radio. With it's WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6521 can also serve as a virtual controller and coordinate the operation of up to 23 neighboring access points.
Motorola AP-6521E-60010-US Access Point Overview

The AP 6521 is a versatile access point with the cost-efficiency of a single radio. With it's WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6521 can also serve as a virtual controller and coordinate the operation of up to 23 neighboring access points.

UNIQUE VALUE

The AP 6521 is a multipurpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The access point features a MIMO radio, superior receive and transmit sensitivity, and a GigE WAN uplink port. The embedded WiNG 5 intelligence ensures that traffic is locally forwarded along the most efficient paths without sacrificing quality of service and security implemented at the access point itself. The AP 6521 can also be used as a sensor for both 2.4 Ghz and 5.0 Ghz frequency bands for multi-band intrusion protection or troubleshooting.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Number of Internal Antennas:
2
Antenna Gain:
  • 3 dBi
  • 6 dBi
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • Stateful Packet Filtering Firewall
  • AAA Radius Services
  • Wireless IPS-Lite
  • VPN Gateway
  • Location-Based Access Control
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.6"
Width:
5.5"
Depth:
6"
Weight (Approximate):
2 lb
Miscellaneous
Certifications & Standards:
Radio Approvals:
  • FCC (USA)
  • Industry Canada
  • CE (Europe)
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.3af
Item Numbers
GTIN: 0886201237540
UPC: 886201237540
EAN: 0886201237540
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-6521E-60010-US Access Point is also known as MOT-AP6521E60010US or AP-6521E-60010-US.
