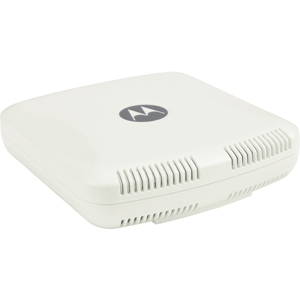

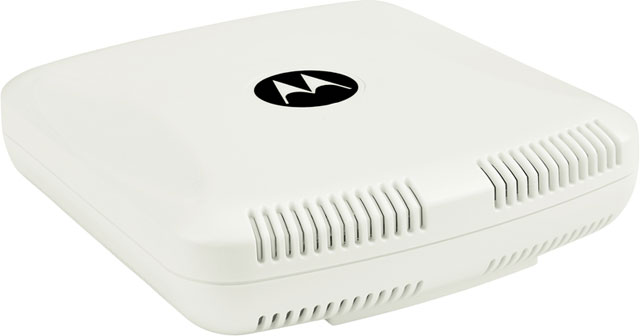

Motorola AP-6521-60020-US Access Point


1.0

(1 reviews)

Motorola AP 6521 - 802.11n Indep 1-Rad external antenna, US Only
Versatile single radio 802.11a/b/g/n wireless access point

The AP 6521 is a versatile access point with the cost-efficiency of a single radio. With it"s WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6521 can also serve as a virtual controller and coordinate the operation of up to 23 neighboring access points.

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.18 GHz
  • Total Number of Antennas: 2
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: RP-SMA Connector
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • AAA
    • RADIUS
    • Wireless IPS-Lite
    • VPN
    • Location-Based Access Control

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 6521
  • Product Name: AP 6521 Wireless Access Point

Physical Characteristics

  • Height: 1.5"
  • Width: 5.6"
  • Depth: 8.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: No

Other

  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • IEEE 802.1Q
    • FCC
    • IC
    • CE
    • UL 2043

Power Description

  • Input Voltage: 57 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: VLAN

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model AP 6521
Wireless Type 802.11a/b/g/n


Customer Review Summary


1.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (0)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (1)

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


1.0

poor product

By james cummings

from Grand Blanc Michigan

7/9/2012

Verified Buyer

Comments about Motorola AP 6521 AP-6521-60020-US:

We have a shop with roaming handhold scanners. These access points came and failed out of the box to configure 6 out of 6 failed. Contacted support was told we had to do firmware updates that could only be done with cisco type command line. Very big pain very time consuming. Did the updates and could configure base function but still not able to set one as master controller as instructions list as a feature. Contacted support again to be told now we need to roll them back to older firmware. Again time consuming and extra issues with auto frequency not working. Very poor product does not work good at all.
