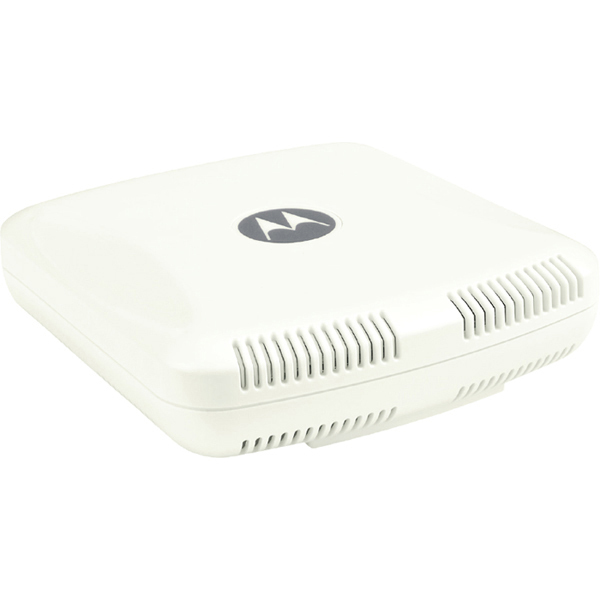

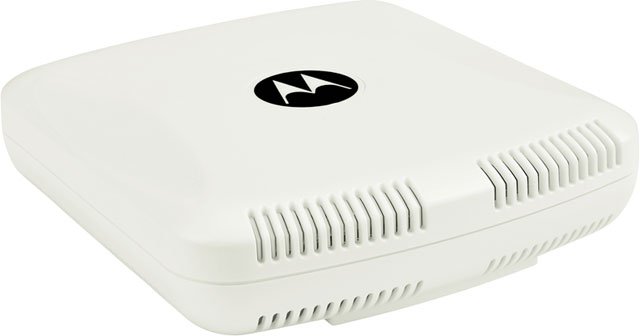

Motorola AP-6521-60010-EU Access Point

The Motorola AP-6521-60010-EU Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 6521 - 802.11n Single Radio Internal Antenna EU Version
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • With IEEE 802.11n network technology and data transfer rate of up to 300 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Read More

Need a different version? See all Motorola AP 6521 Access Points

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Motorola AP-6521-60010-EU Access Point
Motorola AP-6521-60010-EU Access Point Motorola AP-6521-60010-EU Access Point Motorola AP-6521-60010-EU Access Point
Motorola AP-6521-60010-EU Access Point
Motorola AP-6521-60010-EU Access Point
Motorola AP-6521-60010-EU Access Point
Full specifications (PDF)
Motorola AP 6521 Access Point Model Overview
The AP 6521 is a versatile access point with the cost-efficiency of a single radio. With it's WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6521 can also serve as a virtual controller and coordinate the operation of up to 23 neighboring access points.
Motorola AP-6521-60010-EU Access Point Overview

The AP 6521 is a versatile access point with the cost-effciency of a single radio. With it's WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6521 can also serve as a virtual controller and coordinate the operation of up to 23 neighboring access points.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
3
Antenna Gain:
  • 3 dBi
  • 6 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • AAA
  • RADIUS
  • Wireless IPS-Lite
  • VPN
  • Location-Based Access Control
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:

VLAN IEEE 802.1Q

Power Description
Input Voltage:
57 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.7"
Width:
7.5"
Depth:
9.5"
Weight (Approximate):
2 lb
Item Numbers
GTIN: 0644728010127
UPC: 644728010127
EAN: 0644728010127
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-6521-60010-EU Access Point is also known as MOT-AP652160010EU
