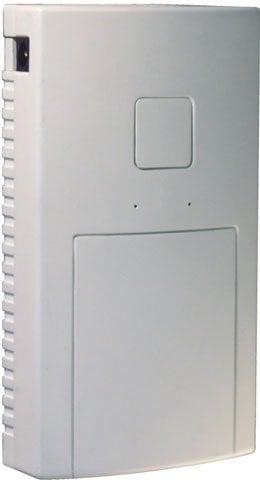

Motorola AP-6511E-60010-US Wireless Access Points

Part Number: AP-6511E-60010-US
Model: AP 6511
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

  AP 6511: EXPRESS 802.11N AP, Internal Antenna US
Explore all Motorola AP 6511 Wireless Access Points
Add to Quote
Motorola AP-6511E-60010-US Wireless Access Points
Motorola AP-6511E-60010-US Wireless Access Points
Motorola AP-6511E-60010-US Wireless Access Points
Motorola AP-6511E-60010-US Wireless Access Points Motorola AP-6511E-60010-US Wireless Access Points Motorola AP-6511E-60010-US Wireless Access Points
Full specifications (PDF)

Motorola AP 6511 Wireless Access Points Model Overview

The Motorola AP 6511 is expressly designed for one of the most challenging wireless LAN environments - dormitory and hotel guest rooms. Standard service personnel can install the AP 6511 in minutes, not hours, using existing category 5 or 6 cabling already in the walls. The installation is predictable and repeatable - two key reasons the AP 6511 will dramatically lower the installation time and cost of a room wireless LAN. The AP's sleek "hide in sight" design and minute size match the decor of any room. The AP 6511 includes intelligent self-optimizing Controller AP code, which allows a small property to gain the benefits of a central controller - automatic adoption, central configuration and status, and automatic RF management - without the cost of a dedicated RF switch. For larger properties and facilities, the AP 6511 can be managed by Motorola's Wi-NG-based RF switches for very high scalability and seamless integration with other indoor and outdoor 802.11n access points.
Motorola AP-6511E-60010-US Wireless Access Points Overview
The AP 6511E was designed to be installed in any location; plenum space, flush to a wall surface, or over a structured wiring telecom box. This intelligent product design allows the wireless LAN to be installed in minutes, not hours, to support a range of mobile devices such as laptops, tablets, and smartphones. In multiple dwelling units such as hotels; high attenuation fire walls, mirrors, plumbing and ceramic tile can require extensive planning for the wireless LAN. Because the AP 6511E can be installed by standard service personnel using existing CAT5/6 cabling in the wall, deployment is a snap. The AP's sleek "hide in sight" design and small size blends with the room aesthetics, very important for hospitality markets
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
2
Number of Internal Antennas:
2
Antenna Gain:
  • 2 dBi
  • 4.5 dBi
Antenna Type:
Omnidirectional Antenna
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WEP Static
  • WEP Dynamic
  • IEEE 802.1x
  • WPA
  • WPA2
  • TKIP Personal
  • TKIP Enterprise
Features:
  • LED Indicator
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
I/O Expansions
Expansion Slots:
1 x Expansion Slot
Management & Protocols
Management:
  • WiNG Express Manager
  • Web Based Management
  • SNMP v3
  • VLAN
Physical Characteristics
Form Factor:
Wall Mountable
Height:
4.9"
Width:
2.7"
Depth:
1.1"
Weight (Approximate):
11.99 oz
Miscellaneous
Package Contents:
  • AP 6511E 802.11n Wallplate Access Point
  • Snap-In Ethernet Port
  • Mount Bracket
  • Rj-45 Cable, 2" (50mm)
Certifications & Standards:
  • FCC 15.247, 15.407
  • EN300 328
  • EN 301 893
  • UL EU EN 60950-1 2nd Ed.
  • ANZ C-Tick
  • FCC Part 15 Subpart B
  • EN 55022: 2006 + A1: 2007
  • ICES - 003 (Class B)
  • EN 55024: 1998 + A1: 2001 + A2: 2003
  • CE
  • IC
  • FCC
  • TELEC
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.3af
  • 802.1Q
  • 802.1x
Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0724627037125
UPC: 724627037125
EAN: 0724627037125
UNSPSC: 43222631
