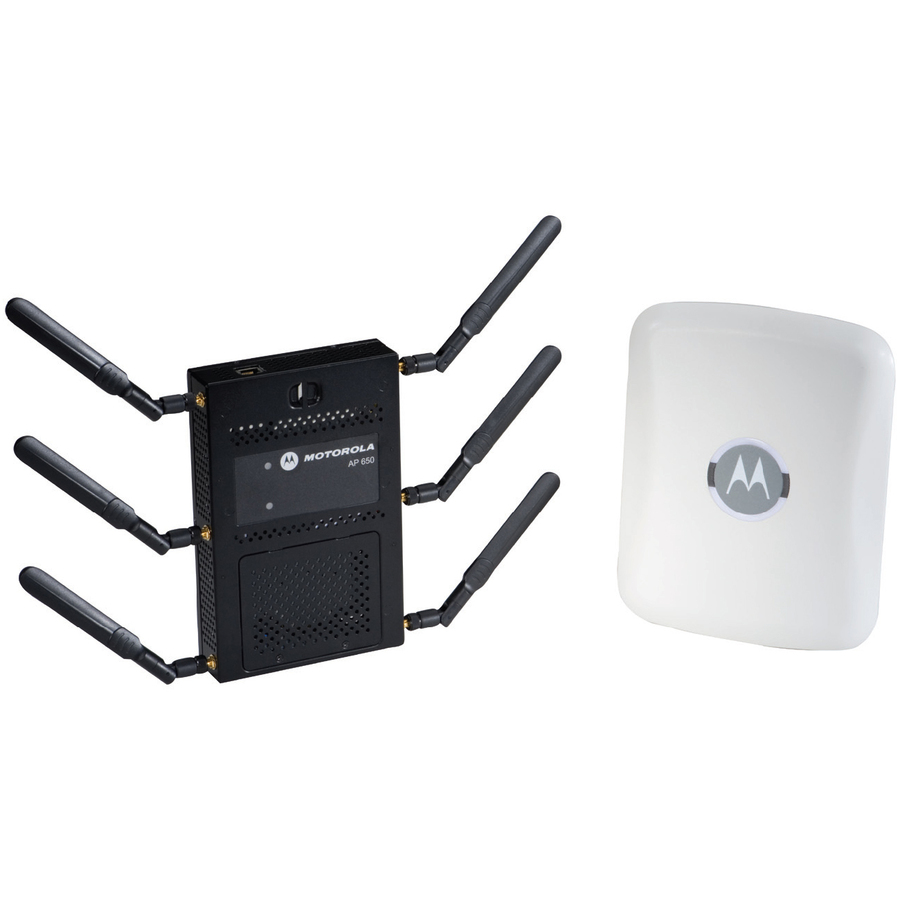

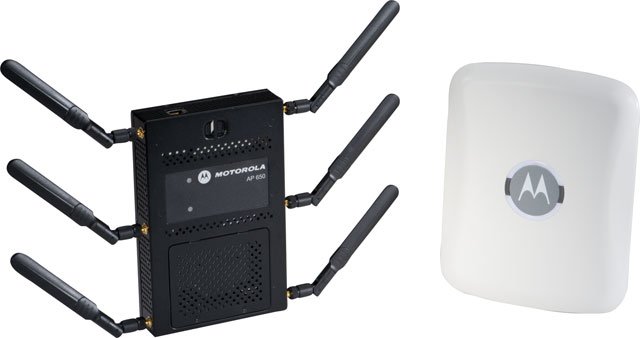

Motorola AP-0650-66040-OUS Access Point

Motorola AP-0650-66040-US Access Point A newer version of this item is available.
It is replaced by the Motorola AP-0650-66040-US Access Point.
Motorola AP650 - Dual Radio External Antenna US Version For Use Outdoors
  • Ensure speedy data transfer of up to 300 Mbit/s with the IEEE 802.11n wireless technology
  • Up to 10x faster than standard Ethernet connectivity for your wired network
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Motorola AP650 Access Point Model Overview
The Motorola AP650 is a thin multi-purpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 combines simultaneous WLAN access and sensing, providing 24x7 wireless security and enabling IT administrators to remotely troubleshooting network performance issues at any location. The AP650 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to ensure uninterrupted access. Common problems, often seen with other products on the market such as building attenuation, electronic interference or sub-optimal access point placement are minimized, as SMART RF automatically optimizes power and channel selection allowing users high-quality wireless access and mobility.
Motorola AP-0650-66040-OUS Access Point Overview

The AP 650 is a thin (dependent) multipurpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP 650 offers simultaneous WLAN access and sensing enabling remote over-the-air helpdesk support, or Wireless intrusion prevention.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
6
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • Stateful Packet Filtering Firewall
  • Wireless IPS-lite
  • AAA
  • RADIUS
  • IDS
  • IPS
  • AirDefense Vulnerability Analysis
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Powerline:
No
Management & Protocols
Management:

VLAN

Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.7"
Width:
7.5"
Depth:
9.5"
Weight (Approximate):
2 lb
Miscellaneous
Certifications & Standards:

EMC:

  • EN 301 489-1
  • EN 301 489-17
  • IEC 60601-1-2
  • EN 55022
  • FCC Part 15 Class B
  • ICES 003 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3

Electrical Safety:

  • UL 60950
  • cUL
  • EU EN 60950

Human Exposure EMF:

  • EN 50385
  • FCC Part 2
  • OET Bulletin 65
  • RSS-102 Issue 2
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-0650-66040-OUS Access Point is also known as MOT-AP065066040OUS
