Motorola AP-0650-66030-US Access Point

Motorola AP-7522-67030-US Access Point A newer version of this item is available.
It is replaced by the Motorola AP-7522-67030-US Access Point.
Motorola AP650 - Wireless Access Point/Bridge
  • This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Read More
Discontinued See Replacement
Add to Quote

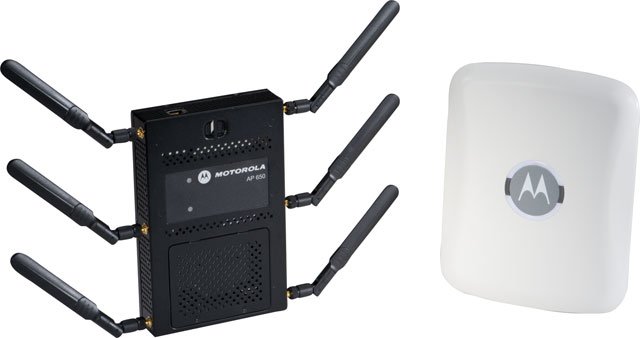

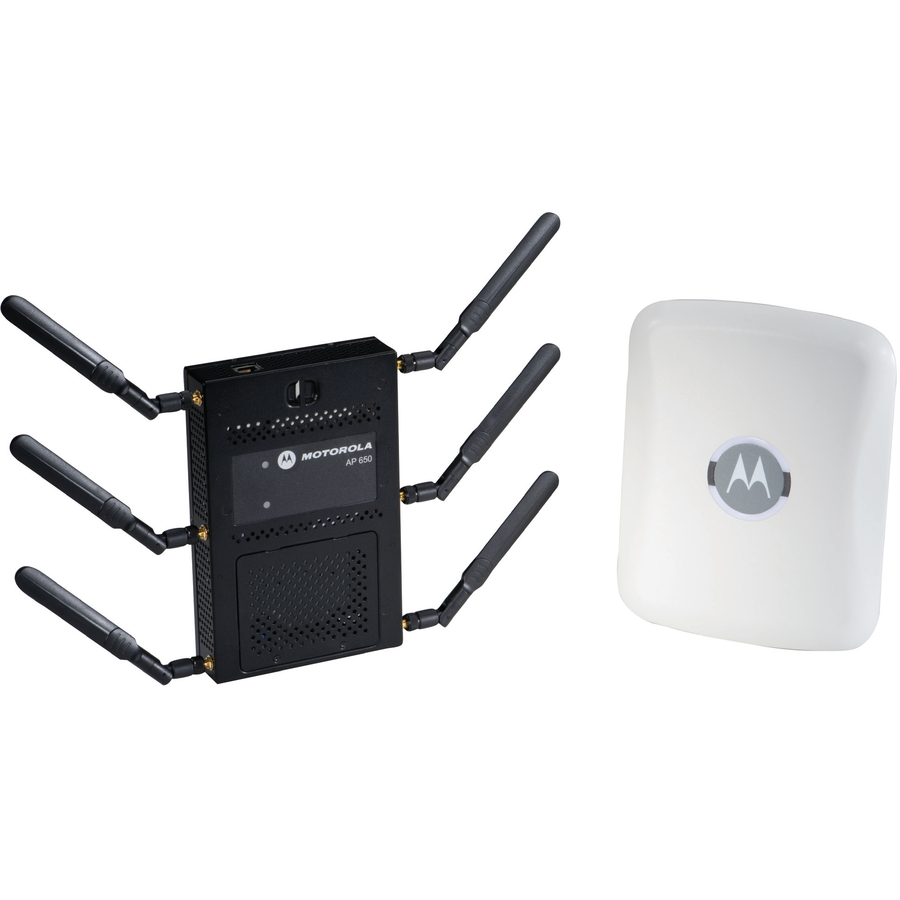

Motorola AP650 Access Point Model Overview
The Motorola AP650 is a thin multi-purpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 combines simultaneous WLAN access and sensing, providing 24x7 wireless security and enabling IT administrators to remotely troubleshooting network performance issues at any location. The AP650 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to ensure uninterrupted access. Common problems, often seen with other products on the market such as building attenuation, electronic interference or sub-optimal access point placement are minimized, as SMART RF automatically optimizes power and channel selection allowing users high-quality wireless access and mobility.
Motorola AP-0650-66030-US Access Point Overview

The AP650 is a thin (dependent) multipurpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 offers simultaneous WLAN access and sensing enabling remote over-the-air helpdesk support, or Wireless intrusion prevention.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
2
Antenna Gain:
  • 2 dBi
  • 4.8 dBi
Wireless Transmission Speed:
300 Mbit/s
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:
  • VLAN
  • QoS
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.7"
Depth:
9.5"
Weight (Approximate):
2 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0777787379994, 0799471567326
UPC: 777787379994, 799471567326
EAN: 0777787379994, 0799471567326
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-0650-66030-US Access Point is also known as SYM-AP065066030US or AP-0650-66030-US.
