Motorola AP-0650-60020-WW Access Point

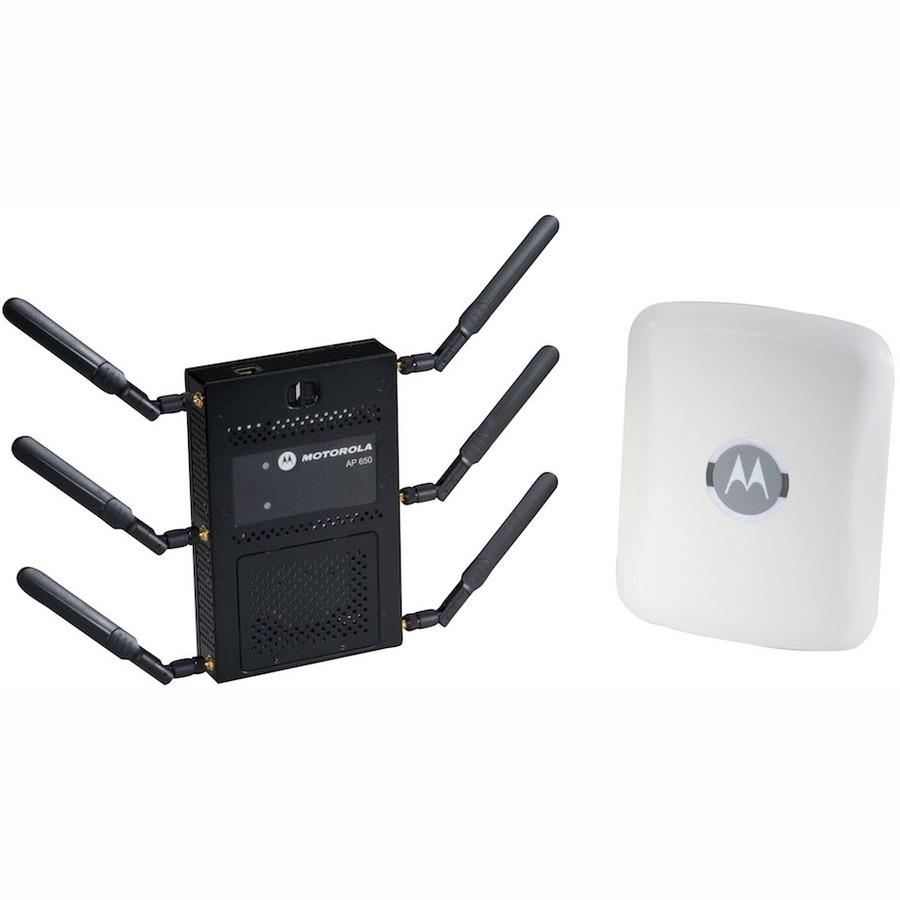

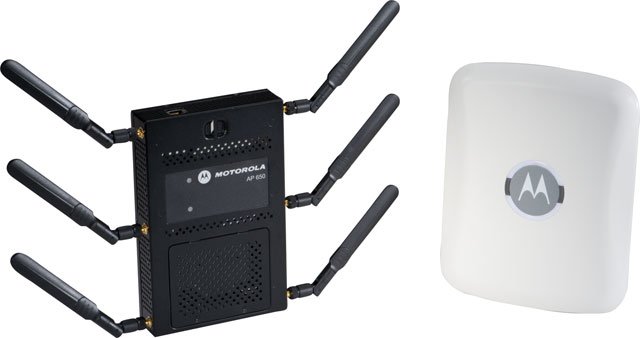

Motorola AP650 - Wireless Access Point/Bridge
Full 802.11n performance with standard 802.3af

The Motorola AP650 is a thin multi-purpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 combines simultaneous WLAN access and sensing, providing 24x7 wireless security and enabling IT administrators to remotely troubleshooting network performance issues at any location. The AP650 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to ensure uninterrupted access. Common problems, often seen with other products on the market such as building attenuation, electronic interference or sub-optimal access point placement are minimized, as SMART RF automatically optimizes power and channel selection allowing users high-quality wireless access and mobility.

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 4.92 GHz
  • Antenna Gain:
    • 4.8 dBi
    • 2 dBi
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Wireless Security:
    • WPA2-CCMP (AES)
    • WPA2-TKIP
    • WPA-TKIP
    • Stateful packet filtering
    • AAA
    • RADIUS
    • Wireless IPS-lite
    • AirDefense Wireless IPS

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP650
  • Product Name: AP650 WLAN Access Point

Physical Characteristics

  • Height: 1.7"
  • Depth: 9.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • PoE (RJ-45) Port: Yes

Management & Protocols

  • Management:
    • DHCP
    • VLAN
    • Telnet
    • SNMP v1/v2/v3

Power Description

  • Input Voltage: 48 V DC
  • Power Source: Power Supply

Full specifications (PDF)



The Motorola AP-0650-60020-WW is also known as SYM-AP065060020WW or AP065060020WW .
