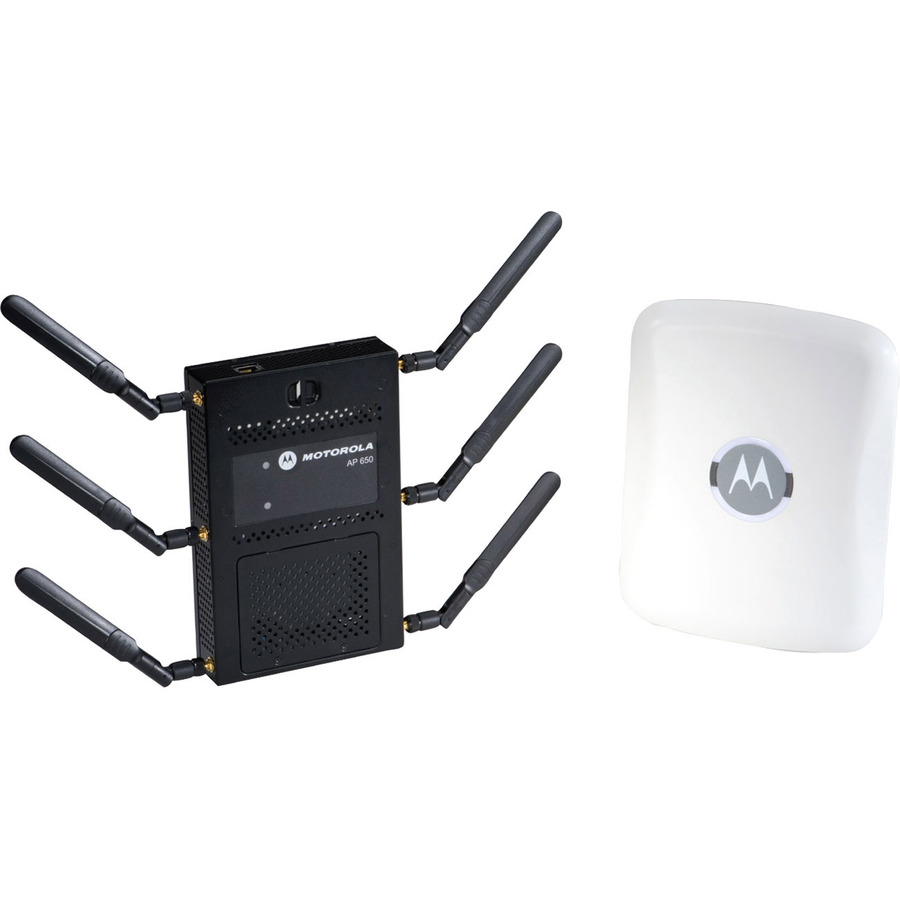

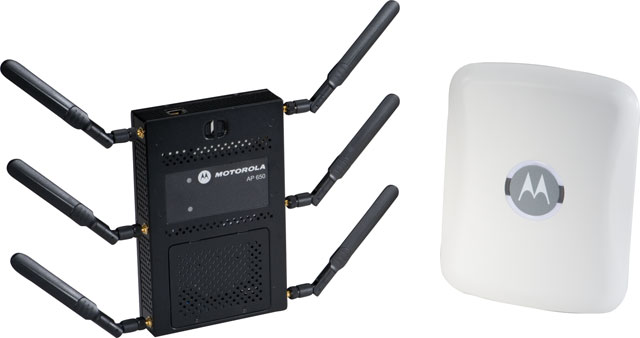

Motorola AP-0650-6001S-WW Access Point

Motorola AP650 - Access Point (Single Radio, Internal Antenna, International Version)
Full 802.11n performance with standard 802.3af

The Motorola AP650 is a thin multi-purpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 combines simultaneous WLAN access and sensing, providing 24x7 wireless security and enabling IT administrators to remotely troubleshooting network performance issues at any location. The AP650 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to ensure uninterrupted access. Common problems, often seen with other products on the market such as building attenuation, electronic interference or sub-optimal access point placement are minimized, as SMART RF automatically optimizes power and channel selection allowing users high-quality wireless access and mobility.

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • Antenna Gain:
    • 2 dBi
    • 4.8 dBi
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.40 GHz
  • UNII Maximum Frequency: 5 GHz
  • Antenna Connector: SMA Connector
  • Wireless Security:
    • 2-7 Stateful Packet Filtering
    • AAA RADIUS
    • Wireless IPS-lite
    • Location-Based Access Control
    • Role-Based Access Control
    • Rogue

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 650
  • Product Name: AP 650 Wireless Access Point

Physical Characteristics

  • Height: 1.7"
  • Depth: 9.5"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • PoE (RJ-45) Port: Yes

Management & Protocols

  • Management:
    • VLAN
    • QoS

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Full specifications (PDF)



The Motorola AP-0650-6001S-WW is also known as MOT-AP06506001SWW or AP06506001SWW .
