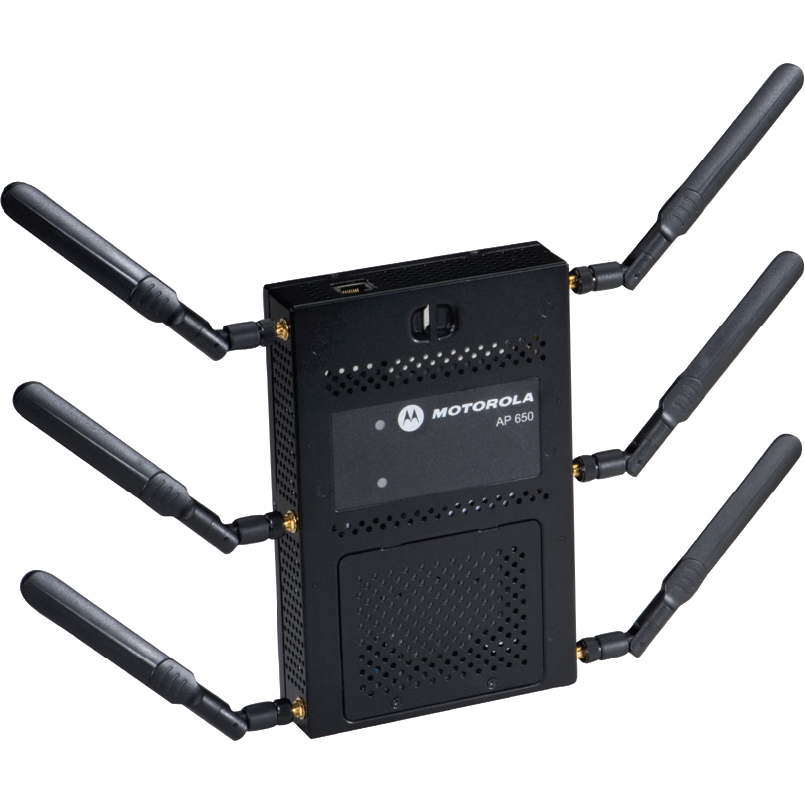

Motorola AP-0650-60010-OUS Access Point

Part Number: AP-0650-60010-OUS
Model: AP650
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  AP650:Single Radio Internal Ant,US,Out-
Explore all Motorola AP650 Wireless Access Points
Add to Quote
Motorola AP-0650-60010-OUS Access Point
Motorola AP-0650-60010-OUS Access Point
Motorola AP-0650-60010-OUS Access Point
Motorola AP-0650-60010-OUS Access Point Motorola AP-0650-60010-OUS Access Point Motorola AP-0650-60010-OUS Access Point
Full specifications (PDF)

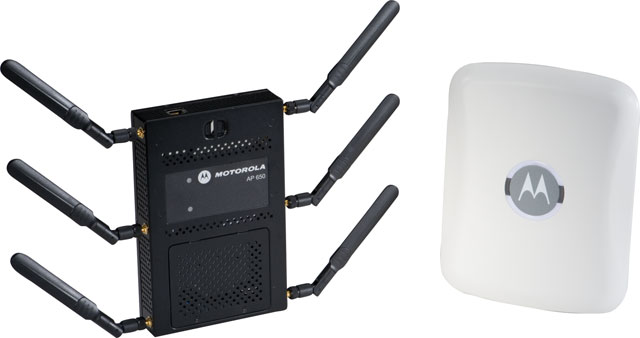

Motorola AP650 Wireless Access Points Model Overview

The Motorola AP650 is a thin multi-purpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 combines simultaneous WLAN access and sensing, providing 24x7 wireless security and enabling IT administrators to remotely troubleshooting network performance issues at any location. The AP650 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to ensure uninterrupted access. Common problems, often seen with other products on the market such as building attenuation, electronic interference or sub-optimal access point placement are minimized, as SMART RF automatically optimizes power and channel selection allowing users high-quality wireless access and mobility.
Motorola AP-0650-60010-OUS Access Point Overview

The AP 650 is a thin (dependent) multipurpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP 650 offers simultaneous WLAN access and sensing enabling remote over-the-air helpdesk support, or Wireless intrusion prevention.

Fast and Easy Deployment

The AP 650 derives its intelligence from an RFS switch/controller, so installation is plug-and play-for optimal service in new wireless WLANs.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.25 GHz
Total Number of Antennas:
3
Antenna Gain:
  • 2 dBi
  • 4.8 dBi
Wireless Transmission Speed:
300 Mbit/s
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:

VLAN

Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.7"
Width:
7.5"
Depth:
9.5"
Weight (Approximate):
2 lb
Miscellaneous
Certifications & Standards:
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3af

Safety:

  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
  • UL 2043

Radio Approvals:

  • FCC (USA), Industry Canada
  • CE (Europe)
  • TELEC (Japan)
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-0650-60010-OUS Access Point is also known as MOT-AP065060010OUS
