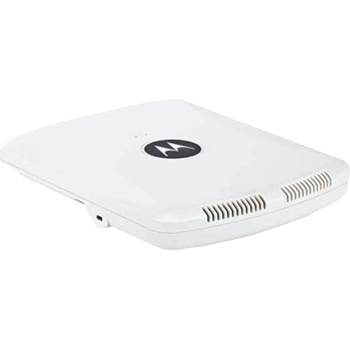

Motorola AP-0622-66040-US Access Point

The Motorola AP-0622-66040-US Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 622 - AP0622: 802.11n Dep 2-Rad External Antenna
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11n technology and speeds up to 300 Mbit/s
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
  • Its management capability provides efficient control over setup and configuration of your network
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

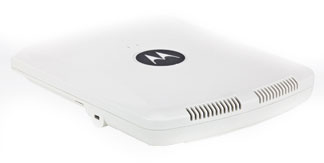

Motorola AP 622 Access Point Model Overview
With increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network, you need a cost-effective solution that delivers high performance. The Motorola AP 622 combines the power of WiNG 5 intelligence at the edge with the cost-efficiency of a dependent access point. When deployed with a wireless controller, the AP 622 offers top 802.11a/b/g/n performance along with direct forwarding, security and quality of service (QoS) services at the edge to deliver a better experience.
Motorola AP-0622-66040-US Access Point Overview

The AP-0622 access point, a component of the Motorola Solutions wireless controller system, links wireless 802.11a/b/g/n devices to the controller, enabling the growth of your wireless network with a cost effective alternative to standard access points. The AP-0622 access point provides multiple deployment options.

The AP-0622 access point receives all power and transfers data through the same CAT-5 or better Ethernet cable. An 802.3af Ethernet switch or power supply (specifically rated for the AP-0622) is required (Part No. PWRS-14000-148R).

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
4.92 GHz
UNII Maximum Frequency:
5.82 GHz
Wireless Transmission Speed:
300 Mbit/s
Features:
MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1"
Width:
7.9"
Depth:
5"
Weight (Approximate):
1.45 lb
Miscellaneous
Package Contents:
  • AP-0622 Access Point
  • 2 x Customer Installed Mounting Lugs
  • 4 x Mounting Lug Retaining Screws
  • Installation Guide
Certifications & Standards:
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • FCC Part 15
  • IC
  • CE
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • China RoHS
Item Numbers
GTIN: 0682017466644
UPC: 682017466644
EAN: 0682017466644
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-0622-66040-US Access Point is also known as MOT-AP062266040US or AP-0622-66040-US.
