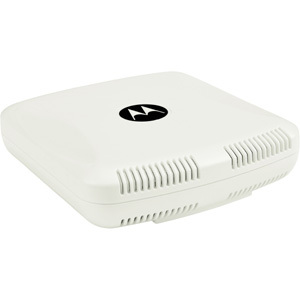

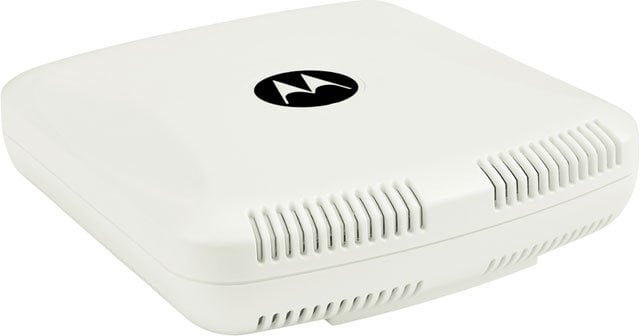

Motorola AP-0621-60010-WR Wireless Access Points

Part Number: AP-0621-60010-WR
Model: AP 621
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  AP0621: 802.11n Dep 1-Rad Internal Antenna, Ww Only
Explore all Motorola AP 621 Wireless Access Points
Add to Quote
Motorola AP-0621-60010-WR Wireless Access Points
Motorola AP-0621-60010-WR Wireless Access Points
Motorola AP-0621-60010-WR Wireless Access Points
Motorola AP-0621-60010-WR Wireless Access Points Motorola AP-0621-60010-WR Wireless Access Points Motorola AP-0621-60010-WR Wireless Access Points
Full specifications (PDF)

Motorola AP 621 Wireless Access Points Model Overview

The AP 621 is a thin (dependent) multipurpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The access point features a MIMO radio, superior receive and transmit sensitivity, and a GigE WAN uplink port. The AP 621 is easily managed remotely by a Motorola RFS 7000 or other wireless controller that discovers access points on the network and automatically downloads all configuration parameters and firmware, greatly reducing installation, maintenance and troubleshooting costs. The embedded WiNG 5 distributed intelligence ensures that traffic is locally forwarded along the most efficient paths without sacrificing quality of service and security implemented at the access point itself.
Motorola AP-0621-60010-WR Wireless Access Points Overview

The AP 621 combines the power WiNG 5 intelligence at the edge with the cost-efficiency of a single radio thin wireless access point. When deployed with a wireless controller, the access point offers top 802.11a/b/g/n performance along with direct forwarding, security and QoS services at the edge.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
2
Antenna Gain:
  • 3 dBi
  • 6 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • AAA
  • RADIUS
  • VPN
  • Stateful Packet Filtering
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:

VLAN

Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.7"
Width:
7.5"
Depth:
9.5"
Weight (Approximate):
2 lb
Item Numbers
GTIN: 7106228337447
EAN: 7106228337447
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-0621-60010-WR Wireless Access Points is also known as MOT-AP062160010WR or AP-0621-60010-WR.
