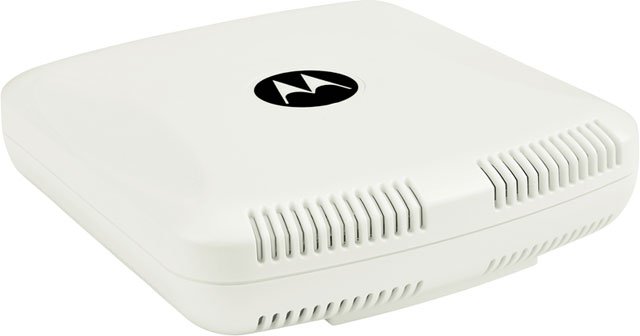

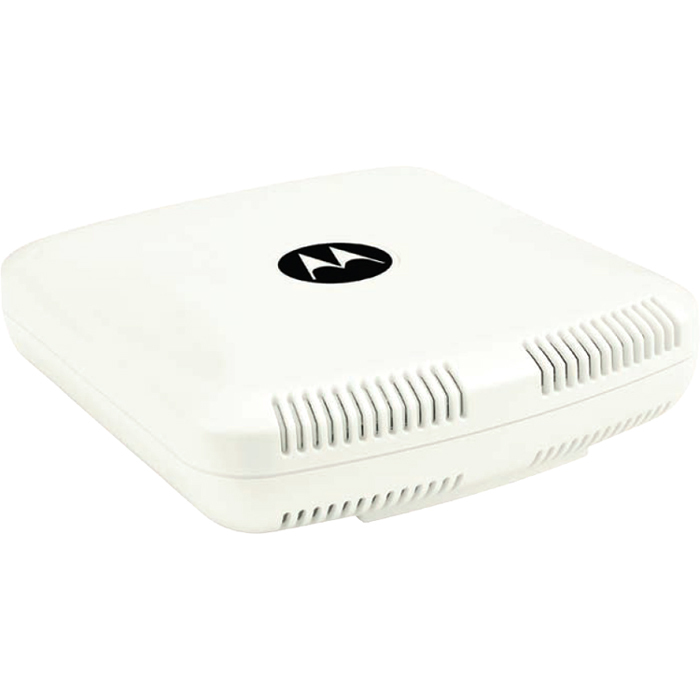

Motorola AP-0621-60010-EU Access Point

The Motorola AP-0621-60010-EU Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 621 - AP621, 802.11N DEPENDENT ACCESS POINT, SINGLE RADIO, INTERNAL ANTENNAS, EUROPE ONLY
  • Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
  • With IEEE 802.11n network technology and data transfer rate of up to 300 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Read More

Need a different version? See all Motorola AP 621 Access Points

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Motorola AP-0621-60010-EU Access Point
Motorola AP-0621-60010-EU Access Point
Motorola AP-0621-60010-EU Access Point
Motorola AP-0621-60010-EU Access Point Motorola AP-0621-60010-EU Access Point Motorola AP-0621-60010-EU Access Point
Full specifications (PDF)
Motorola AP 621 Access Point Model Overview
The AP 621 is a thin (dependent) multipurpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The access point features a MIMO radio, superior receive and transmit sensitivity, and a GigE WAN uplink port. The AP 621 is easily managed remotely by a Motorola RFS 7000 or other wireless controller that discovers access points on the network and automatically downloads all configuration parameters and firmware, greatly reducing installation, maintenance and troubleshooting costs. The embedded WiNG 5 distributed intelligence ensures that traffic is locally forwarded along the most efficient paths without sacrificing quality of service and security implemented at the access point itself.
Motorola AP-0621-60010-EU Access Point Overview

The AP 621 combines the power WiNG 5 intelligence at the edge with the cost-efficiency of a single radio thin wireless access point. When deployed with a wireless controller, the access point offers top 802.11a/b/g/n performance along with direct forwarding, security and QoS services at the edge.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
2
Antenna Gain:
  • 3 dBi
  • 6 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • AAA
  • RADIUS
  • VPN
  • Stateful Packet Filtering
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:

VLAN

Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.7"
Width:
7.5"
Depth:
9.5"
Weight (Approximate):
2 lb
Item Numbers
GTIN: 5712505278383
EAN: 5712505278383
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-0621-60010-EU Access Point is also known as AP-0621-60010-EU
