Full specifications (PDF)
Connectivity Technology:
Wireless
Motorola 8515112310201200 Data Terminal
Part Number:
8515112310201200
Model:
PSION 8515

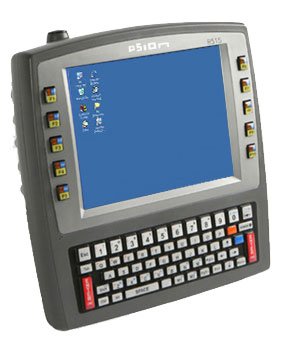

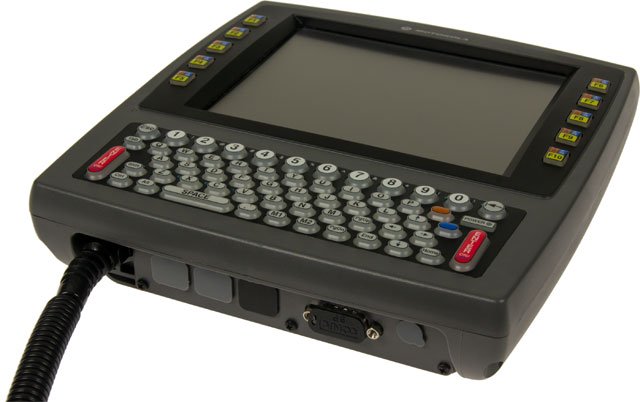

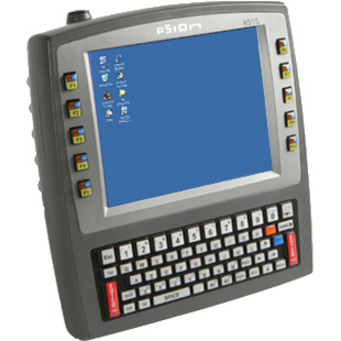

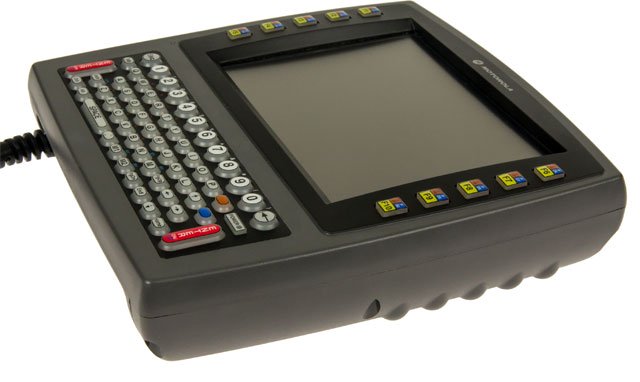

Motorola PSION 8515 Data Terminal Model Overview
Warehouses and ports. Manufacturing plants and airports. Think tight deadlines and even tighter spaces – especially on the forklifts and trucks themselves. Fixing a bulky computer to these just isn't an option. Unless it's the compact 8515. This rugged, lightweight vehicle mount computer gives you all the intelligence and connectivity you need in a very small package.
Motorola 8515112310201200 Data Terminal Overview
Smart, small, tough
Drop into any port or warehouse at any time of day - you'll see an army of forklifts zipping in and out of tight spaces with inches to spare. Which means finding a vehicle mount computer powerful enough to do the job without being a practical hindrance is always a problem.
Until now. The 8515 is incredibly compact and lightweight. So it never makes a nuisance of itself. And it's packed with features to make workers' lives easier. Which means productivity never drops, all shift long.
The 8515 is just as happy staying put as it is on the move. So you can use it as a fixed-mount terminal, making it perfect for data collection in retail.
Technical Information
Processor & Chipset
Processor Manufacturer:
Marvell
Processor Type:
XScale
Processor Speed:
312 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
4 GB
Display & Graphics
Screen Size:
6.4"
Graphics Modes:
VGA
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
640 x 480
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Interfaces/Ports
Serial:
Yes
USB:
Yes
Keyboard/Keypad
Keyboard Type:
QWERTY
Software
Operating System:
Windows CE 5.0
Physical Characteristics
Height:
8.2"
Width:
8"
Depth:
1.8"
Weight (Approximate):
2.89 lb
Miscellaneous
Certifications & Standards:
- IP65
- IEC 60721-3-5- Class 5M2
- NEMA 250, Method 5.9.1
- MIL-STD-810F
- SAE J1255
- FCC Part 15 Subpart B, Class B, Emissions
- Industry Canada ICES-003 Class B
- EN 55022:1998, Class B Emissions
- EN 55024:1998 Immunity
- EN 60950-1
- UL 60950-1
- CSA 22.2 No. 60950-1
- Safety
- ISO7637-1/2 Vehicle Transients
- EN 300 328
- FCC Part 15 Subpart C
- RSS 210
- EN 301 489-17
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
