Motion Computing LL523422824343 Tablet Computer

This product is made to order. Please call for details on lead time.

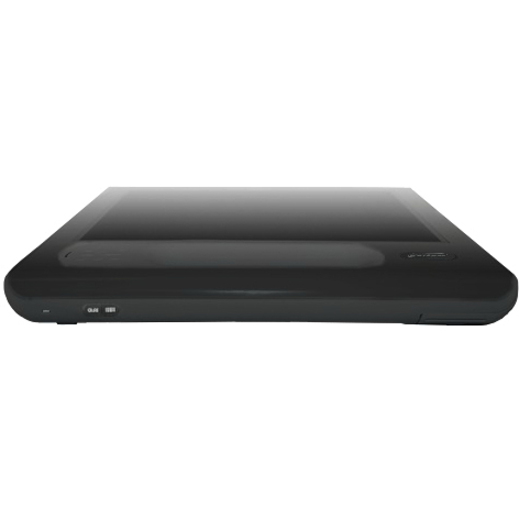

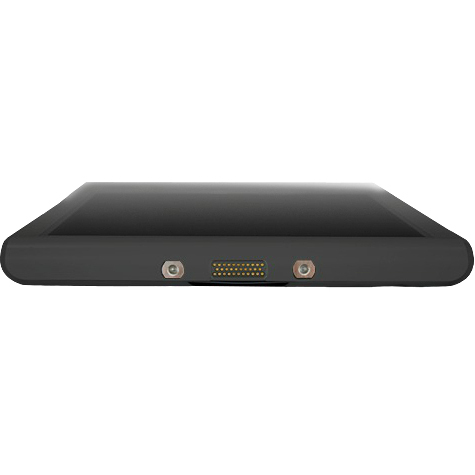

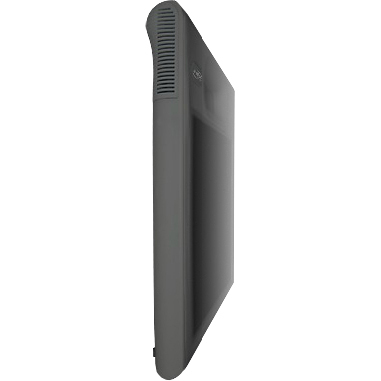

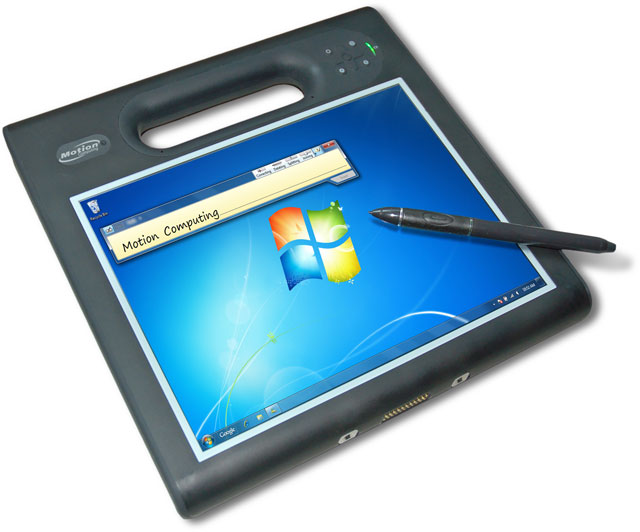

Motion Computing F5t - Motion F5 Rugged Tablet - 10.4" XGA - 4 GB RAM - 64 GB SSD - Windows 7 32-bit - Intel QM77 Express SoC - Intel Core i5 3rd Gen i5-3317U Dual-core (2 Core) 1.70 GHz - 1024 x 768 - View Anywhere, AFFS+ Display - 1.3 Megapixel Front Camera - 6 Hour Maximum Battery Run Time
  • The 3.30 lb light weight saves you from the physical strain of carrying this tablet
  • The lavish 1.70 GHz processing speed and 4 GB memory lets you easily juggle between social, professional and gaming apps
  • 10.4" (1024 x 768) screen allows a great view of movies and TV shows and yet is small enough to easily carry
  • Hi-res 1.3 Megapixel front-facing camera excels at stunning outdoor portraits, sharpens landscape images, and records crystal clear 4K videos
  • Windows 7 OS smartly manages your tablet and efficiently runs routine apps
  • Thin, light and damage-resistant gorilla glass screen
Read More

Full specifications (PDF)

Uncompromising Tablet PC Performance. Exceptional Field Capabilities.
At only 3.3 lbs the Motion-Computing F5t makes it easy to take technology into the field for streamlined processes and increased productivity. Available with up to the 3rd generation Intel Core i7 vPro processor, the F5t offers uncompromising levels of increased power, security and manageability. With extended battery life of up to 6 hours (1), a hot-swap battery feature, superior performance and advanced remote management capabilities, mobile workers are equipped with a robust computing tool for accomplishing virtually any task. Lightweight, rugged and mobile, the F5t enhances documentation and collaboration with integrated digital cameras, barcode scanner or RFID reader. Keep workers connected with integrated Bluetooth, Wi-Fi and Gobi connectivity. The F5t is meticulously designed, thoroughly developed and purposely built for field productivity.
Motion Computing LL523422824343 Overview

Uncompromising Tablet PC Performance. Exceptional Field Capabilities.

At only 3.3 lbs the Motion® F5t makes it easy to take technology into the field for streamlined processes and increased productivity. Available with up to the 3rd generation Intel® Core™ i7 vPro™ processor, the F5t offers uncompromising levels of increased power, security and manageability. With extended battery life of up to 6 hours, a hot-swap battery feature, superior performance and advanced remote management capabilities, mobile workers are equipped with a robust computing tool for accomplishing virtually any task.

Full specifications (PDF)

Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
3rd Gen
Processor Model:
i5-3317U
Processor Speed:
1.70 GHz
Processor Core:
Dual-core (2 Core)
Cache:
3 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
QM77 Express
Memory
Standard Memory:
4 GB
Maximum Memory Supported:
8 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
DDR3-1600/PC3-12800
Storage
Solid State Drive Capacity:
64 GB
Solid State Drive Interface:
mini-SATA/300
Optical Drive Type:
No
Display & Graphics
Screen Size:
10.4"
Display Screen Type:
Active Matrix TFT Color LCD
Display Screen Technology:
  • View Anywhere
  • AFFS+
Aspect Ratio:
4:3
Screen Mode:
XGA
Screen Resolution:
1024 x 768
Backlight Technology:
LED
Touchscreen:
Yes
Multi-touch Screen:
Yes
Digitizer:
Yes
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
HD 4000
Graphics Memory Capacity:
Up to 256 MB
Graphics Memory Technology:
DDR3 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
WWAN Supported:
Yes
Gobi Supported:
Yes
GPS:
Yes
Wireless LAN:
Yes
Wireless LAN Manufacturer:
Intel
Wireless LAN Model:
Centrino Advanced-N 6235
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 4.0
Input Devices
Keyboard Type:
Touchscreen Keyboard
Pointing Device Type:
Stylus
Built-in Devices
Front Camera/Webcam:
Yes
Front Camera/Webcam Resolution:
1.3 Megapixel
Rear Camera:
Yes
Rear Camera Resolution:
3 Megapixel
Focus Modes:
Auto-focus
Microphone:
Yes
Speakers:
Yes
Software
Operating System Platform:
Windows
Operating System:
Windows 7
Operating System Architecture:
32-bit
Software Included:
  • Motion Dashboard control panel
  • Windows Journal
  • Sticky Notes
  • Pen and Touch enabled BIOS setup
  • Intel Mobile Clinical Assistant
  • Adobe Reader
  • Mobile Broadband Connection Manager
  • Adobe Flash Player
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Energy:
40 Wh
Maximum Battery Run Time:
6 Hour
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Maximum Power Supply Wattage:
65 W
Physical Characteristics
Rugged:
Yes
Form Factor:
Slate
Height:
1"
Width:
10.1"
Depth:
10.1"
Weight (Approximate):
3.30 lb
Miscellaneous
Package Contents:
  • F5t Tablet PC
  • Lithium Ion Battery
  • AC Adapter
  • Stylus
Certifications & Standards:
  • ACPI 3.0b Compliant
  • Section 508 Compliant
  • AS/NZS 3548:1995 Class B
  • AS/NZS 4268
  • AS/ACIF S042.1 (WCDMA/HSDPA)
  • AS/ACIF S042.3 (WCDMA/HSDPA)
  • AS/ACIF S042.1 (GSM/EDGE)
  • AS/ACIF S042.3 (GSM/EDGE)
  • CAN/CSA ICES-003 Class B
  • CAN/CSA RSS-210 Issue 5
  • CAN/CSA RSS-310 Issue 2
  • CAN/CSA RSS-132 (1xRTT/EVDO-0/EVDO-A)
  • CAN/CSA RSS-133 (1xRTT/EVDO-0/EVDO-A)
  • CENELEC EN 60601-1-2
  • CENELEC EN 55022 Class B (CISPR22)
  • CENELEC EN 55024 (CISPR24)
  • CENELEC EN 61000-3-2
  • CENELEC EN 61000-3-3
  • ETSI EN 301-893
  • ETSI EN 300-328
  • ETSI EN 300-440
  • ETSI EN 301-489-1
  • ETSI EN 301-489-3
  • ETSI EN 301-489-7
  • ETSI EN 301-489-17
  • ETSI EN 301-489-24
  • ETSI EN 300-330
  • ETSI EN 301-511
  • ETSI EN 301-908
  • FCC Part 15 Subpart B Class B
  • FCC Part 15 Subpart C (2.4 GHz)
  • FCC Part 15 Subpart E (5 GHz)
  • FCC Part 22 H (1xRTT/EVDO-0/EVDO-A)
  • FCC Part 24 E (1xRTT/EVD0-0/EVDO-A)
  • R&TTE (89/336/EEC) & R&TTE (99/5/EC)
  • AS/NZS 60950-1
  • FCC/ANSI C63.41
  • UL, CUL, CE (IEC/EN60950-1 A11/2004)
  • ETSI EN 62311
  • LVD (73/23/EEC)
  • EU Directive 2002/95/EC
  • EU Directive 2002/96/EC
  • EU Directive 2006/66/EC
  • California Proposition 65
  • Technical Instructions for Safe Transport of Dangerous Goods by Air (ICAO Doc #9284)
  • Emergency Response Guidance for Aircraft incidents involving Dangerous Goods (ICAO Doc #9481)

Durability:

  • MIL-STD-810G
  • IP54 tested
  • Gorilla® glass display
Features:
Gorilla Glass
Security Features:
  • TCG Trusted Platform Module (TPM) 1.2
  • Integrated RFID Reader
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211509
