Fixed Focal Length:
22 mm
MOBOTIX MX-Q24M-SEC-D22 Security Camera
Part Number:
MX-Q24M-SEC-D22
Model:
MOBOTIX Parts Accessory Model Overview
Products and parts from MOBOTIX.

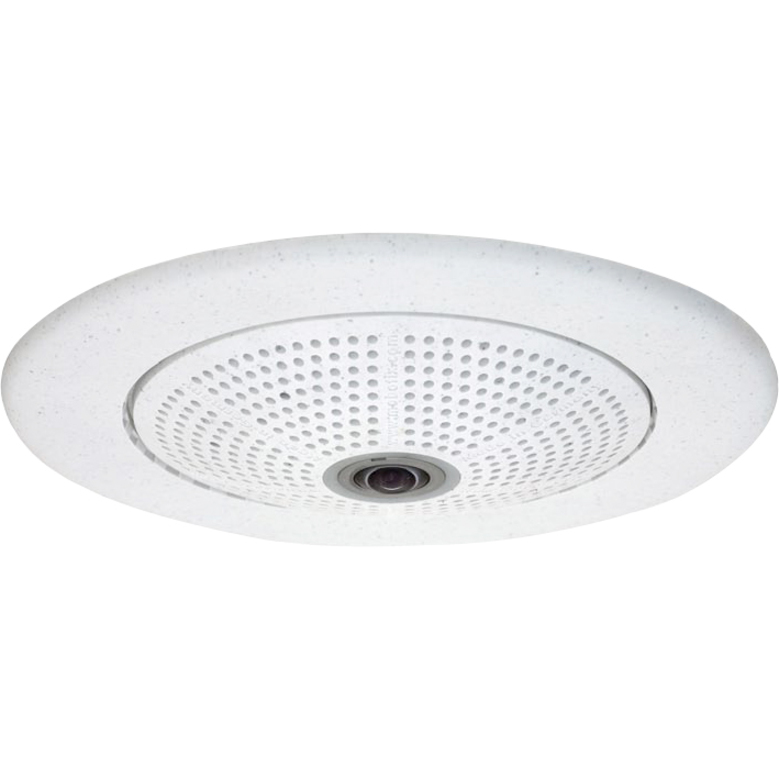

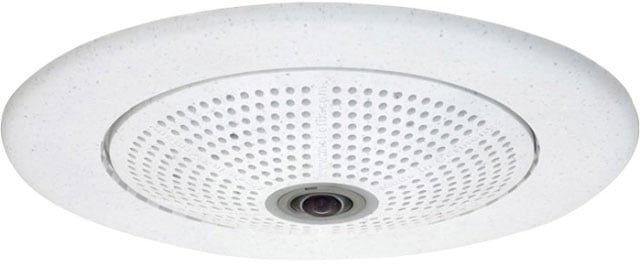

MOBOTIX MX-Q24M-SEC-D22 Security Camera Overview
An elegant, ultra compact and weatherproof IP dome camera. Thanks to the 360° allround view to capture an entire room, a panorama function and a quad view to show images from four different angles simultaneously, the Q24 can be used in all new applications.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
White Balance Modes:
Auto
Maximum Illumination:
1 lux
Color Supported:
Color
Video
Video Formats:
- MPEG
- MJPEG
Maximum Video Resolution:
2048 x 1536
Image Formats:
JPEG
Lens
Lens Type:
Fixed
Maximum Focal Length:
22 mm
Wide Angle:
Yes
Digital Zoom:
8x
Focus Modes:
Fixed Focus
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- HTTPS
- FTP
- IP
- SSL
Power Description
Maximum Power Consumption:
3 W
Physical Characteristics
Height:
2"
Diameter:
6.3"
Weight (Approximate):
15.87 oz
Miscellaneous
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
- Hemispheric Q24 Q24M-Sec Network Camera
- Housing (high-resistance composites - PBT-PC) White
- 360° Lens
- Mounting Parts
- Allen Wrench
- Patch Cable- 50 cm
- Manual
- Software
- 4 GB MicroSD Card
Compatibility:
PAL
Certifications & Standards:
- EMC (EN50121-4, EN55022, EN55024, EN61000-6-2, FCC part15B, AS/NZS3548)
- IP65
Ingress Protection Rating:
IP65
Security Features:
- User-/Group management
- HTTPS/SSL
- IP address filter
- IEEE 802.1x
- Intrusion detection
- Digital image signature
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The MOBOTIX MX-Q24M-SEC-D22 Security Camera is also known as
MBX-Q24MSECD22
