Operating Frequency Range:
- 694 MHz to 960 MHz
- 1710 MHz to 3700 MHz
- 1575.42 MHz
Antenna Gain:
26 dB
Mobile Mark, Inc. Wireless Antenna Accessory Model Overview
Mobile Mark offers antennas from 138 MHz to 9 GHz. Applications include GPS, WiFi, 3G Cellular GSM/CDMA, 4G LTE, LTE-A, XLTE, ISM, UHF, and RFID.

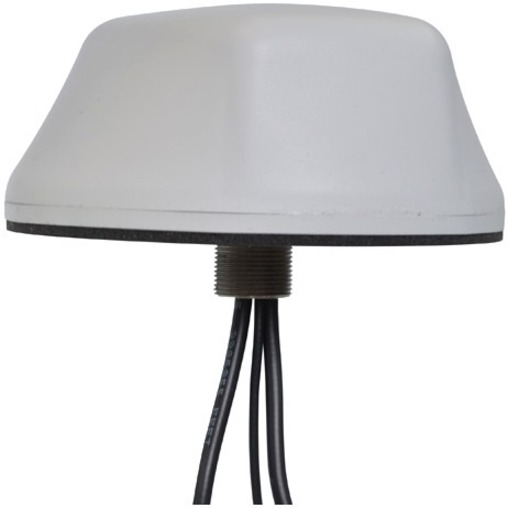

Mobile Mark, Inc. MLTM302CC0W6 Wireless Antenna Overview
Mobile Mark's LTM302 Series Multiband Diversity/MIMO antenna contains three separate antennas, all in one compact antenna housing: two identical LTE/Cellular antennas and one GPS antenna. The LTE/Cellular element is broadbanded enough to cover all LTE frequencies worldwide through 3700 MHz.
LTE MIMO (multiple-input-multiple-output) modems offer greater speed and capacity than earlier generations of modems. In order to ensure optimum performance the LTE MIMO system needs multiple antennas on both the transmission and receive ends. The LTM302 acheives this with two identical Cellular/LTE elements.
This 3-element LTM antenna is designed for fleet management systems that combine a GPS receiver with a 2-element LTE MIMO modem. For fleet management systems that add in a WiFi MIMO modem, the LTM502 isrecommended.
Measuring 5.5" (140mm) in diameter with a low profile of 2.38" (60.4mm), LTM series antennas take up significantly less space than multiple antennas. The radome is available in either black or white. The antennas are available in either surface mount or mag-mount models. The antennas can also be configured for combined GPS & Glonass use.
Technical Information
Interfaces/Ports
Connector Type:
SMA
Physical Characteristics
Color:
White
Height:
2.78"
Diameter:
5.50"
Form Factor:
Magnetic Mount
Miscellaneous
Application/Usage:
- Cellular Network
- GPS
- GLONASS
Item Numbers
UNSPSC:
43221706
