Microscan FIS-6300-2014G Fixed Barcode Scanner

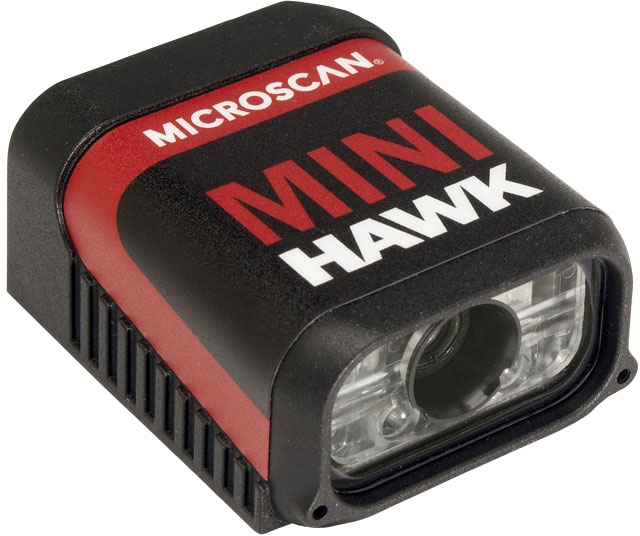

The MINI Hawk Series from Microscan offers cutting-edge compact 2D barcode readers that excel in direct part mark (DPM) applications. Engineered with X-Mode technology, these imagers guarantee aggressive decoding of damaged and distorted symbols without the need for extensive configuration. With impressive autofocus capabilities and a wide field of view, the MINI Hawk models are perfect for various industries including automotive, electronics, and medical devices. Their miniature form factor makes them suitable for tight spaces and integration into robotic applications, ensuring efficiency and reliability in tracking, tracing, and control tasks.

• X-Mode Decoding Technology for easy and effective reading of challenging barcodes
• Dynamic Autofocus for optimized symbol clarity
• Compact and Lightweight Design fits easily into confined spaces
• Multiple Model Options: MINI Hawk 3 (3MP), MINI Hawk HR (high resolution), MINI Hawk HS (high speed)
• Easy Setup with ESP® Single-point software and EZ Button functionality
• Wide Compatibility with various barcode symbologies, including 2D and linear formats

• Dimensions: Height: 1" (25.4 mm), Width: 1.80" (45.7 mm), Length: 2.10" (53.3 mm)
• Weight: 2 oz. (57 g)
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -50° to 75°C (-58° to 167°F)
• Connectivity: USB Type A or High Density 15-pin D-Sub socket connector
• Read Rate: Up to 60 decodes per second (HS model)
• Environmental Rating: IP54 (dust and splash resistant)
• Decode Range: Varies by model, capable of reading symbols as large as 2" (50.8 mm) square
