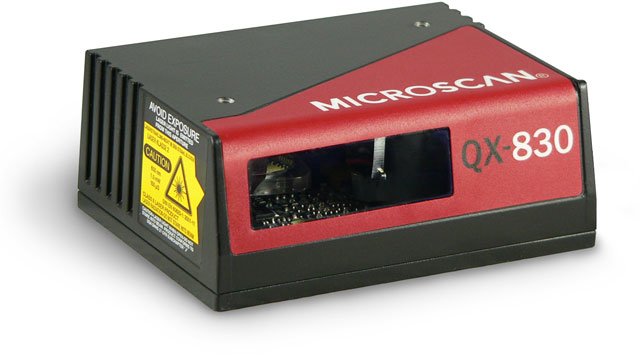

Microscan FIS-0830-1002G Fixed Barcode Scanner

The QX-830 Compact Industrial Laser Scanner is engineered to deliver exceptional performance in demanding automation environments. With its revolutionary flexible connectivity, this scanner adeptly reads 1D barcodes across various applications, from conveyor lines to packaging and sortation processes. Featuring an IP65-rated enclosure, the QX-830 ensures durability while embedded Ethernet protocols provide swift communication. Its compact design allows for versatile positioning, making it an ideal choice for both light and heavy-duty settings. Experience high-speed scanning with adjustable rates from 300 to 1400 scans per second, ensuring reliable operations even in challenging conditions.

• High Performance: Scans at a rate of 300 to 1400 scans/second.
• Extended Read Range: Capable of reading barcodes up to 37 inches (940 mm).
• IP65 Enclosure: Dust tight and protected against water splashes.
• EZ Button: Simplifies reader setup without the need for a computer.
• Quick Connect System: Features M12 Ultra-Lock connectors for easy installation.
• X-Mode Technology: Ensures reliable decoding of damaged or poorly printed barcodes.

• Dimensions: 2.59" (L) x 3.47" (W) x 1.38" (H)
• Weight: 7.5 oz (212 g)
• Operating Temperature: 0° to 50°C (32° to 122°F)
• Storage Temperature: -50° to 75°C (-58° to 167°F)
• Humidity: Up to 90% (non-condensing)
• Power Requirement: 10-28 VDC, 180 mA at 24 VDC (typical)
• Scan Width Angle: Typically 60°
• Protocols Supported: Ethernet TCP/IP, EtherNet/IP, RS-232/422/485
