Microscan FIS-0003-0008G Fixed Barcode Scanner
Part Number:
FIS-0003-0008G
Model:
MS-3 Laser
Full specifications (PDF)

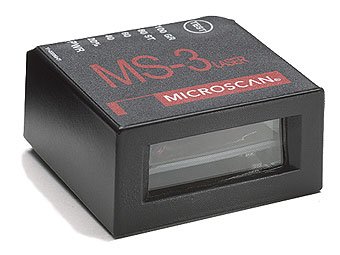

Microscan MS-3 Laser Fixed Barcode Scanner Model Overview
The MS-3 laser barcode scanner is the ultimate solution for embedded applications, offering unparalleled performance in an ultra-compact design. With a remarkable scanning speed of up to 1000 decodes per second and a wide scan angle of 70 degrees, this scanner excels in tight spaces and varied mounting conditions. Featuring an easy setup process through the ESP® Easy Setup Program and an EZ Button for instant configuration, the MS-3 ensures accurate reading every time, making it a reliable choice for diverse applications, from clinical instruments to robotics.
Key features:
Specifications:
Key features:
- High Scan Speed: Adjustable from 300 to 1000 decodes per second.
- Wide Scan Angle: Over 70 degrees for flexible positioning.
- Compact & Lightweight: Weighs only 2 ounces (57 g), ideal for tight installations.
- IP54 Enclosure: Dust and water-resistant for demanding environments.
- Visible Indicators: Illuminated LEDs provide real-time feedback on scanning performance.
Specifications:
- Decodes/second: Up to 1000
- Read Range: 2 to 10 inches (51 to 254 mm)
- Dimensions: 1.75" x 0.85" (44.5 mm x 21.6 mm)
- Weight: 2 oz (57 g)
- Operating Temperature: 0° to 50° C (32° to 122°F)
- Storage Temperature: -50° to 75° C (-58° to 167°F)
- Humidity: Up to 90% (non-condensing)
- Safety Certification: CDRH, FCC, UL/cUL, CE
- Communication Interfaces: RS-232, RS-422/485, Keyboard Wedge, USB
- Power Requirements: 5 VDC +/- 5%
Brand
Microscan
Model
MS-3 Laser
