Microscan FIS-0003-0004G Fixed Barcode Scanner

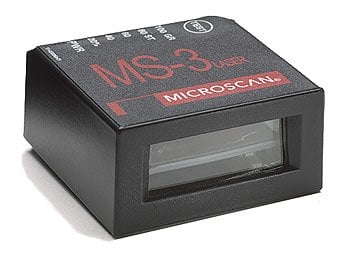

Microscan MS-3 Laser Fixed Barcode Scanner Model Overview
Key features:
- High Scan Speed: Adjustable from 300 to 1000 decodes per second.
- Wide Scan Angle: Over 70 degrees for flexible positioning.
- Compact & Lightweight: Weighs only 2 ounces (57 g), ideal for tight installations.
- IP54 Enclosure: Dust and water-resistant for demanding environments.
- Visible Indicators: Illuminated LEDs provide real-time feedback on scanning performance.
Specifications:
- Decodes/second: Up to 1000
- Read Range: 2 to 10 inches (51 to 254 mm)
- Dimensions: 1.75" x 0.85" (44.5 mm x 21.6 mm)
- Weight: 2 oz (57 g)
- Operating Temperature: 0° to 50° C (32° to 122°F)
- Storage Temperature: -50° to 75° C (-58° to 167°F)
- Humidity: Up to 90% (non-condensing)
- Safety Certification: CDRH, FCC, UL/cUL, CE
- Communication Interfaces: RS-232, RS-422/485, Keyboard Wedge, USB
- Power Requirements: 5 VDC +/- 5%
