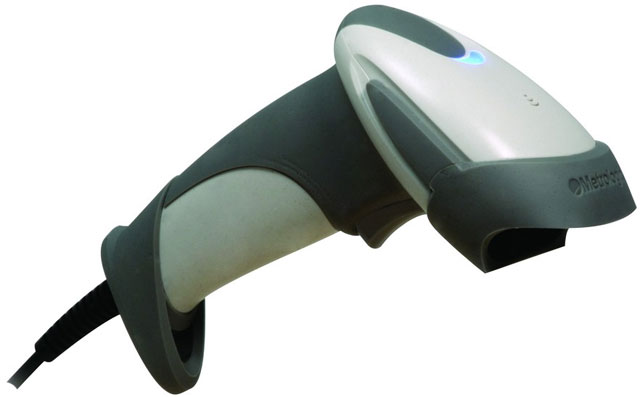

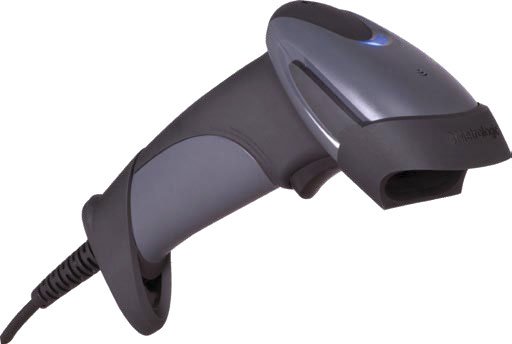

Honeywell MS9590-14-7 Barcode Scanner

Metrologic VoyagerGS 9590 - SCANNER ONLY. 1D Scanner. RS-232 interface. Color: Light Gray. For the full kit see (Part# MK9590-61B14). Non-Cancelable/Non-Returnable.
Metrologic's MS9590 VoyagerGS handheld single-line laser scanner increases productivity by offering an aggressive solution for scanning all standard 1D barcodes

As the newest addition to the industry-leading Voyager series, the MS9590 VoyagerGS features a new ergonomic design that maximizes comfort and reduces fatigue for customers desiring a trigger-activated, handheld laser scanner. This new form factor makes the scanner ideal for a variety of applications, including retail point-of-sale, office automation and health care settings

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • GS1 DataBar (Formerly RSS)
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (formerly EAN/UCC)
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • GS1 DataBar (Formerly RSS)
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (formerly EAN/UCC)
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 3.30" - 4.30"@5.20 mil
    • 1.50" - 7"@7.50 mil
    • 1.30" - 10"@10.40 mil
    • 0 mil - 12"@13 mil
    • 0.50" - 17.50"@26 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9590
  • Product Name: VoyagerGS MS9590 Handheld Barcode Reader
  • Product Line: VoyagerGS

Physical Characteristics

  • Height: 3.9"
  • Width: 2.6"
  • Depth: 6.3"
  • Color: Light Gray
  • Weight (Approximate): 5.30 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE

Warranty

  • Limited Warranty: 5 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Metrologic
Model MS9590 Voyager GS
Scanner Capability 1D
Connectivity Corded
Scanner Type Laser
Scan Pattern Single Dot
Form Factor Handheld
Ruggedness General Purpose

Recommended Accessories for Model: Metrologic MS9590 Voyager GS Scanner
Honeywell (STND-15F03-013-42)
Stand, Black, 15cm (6") flex pole & weighted base for MS9590, MS9520/40
In Stock
$29.40
+ Add to Quote
Honeywell Cable (53-53809-N-3)
USB, black, Type A, 2.9m (9.5'), coiled, host power
Temporarily out of stock; available to order
$18.60
+ Add to Quote
Honeywell Cable (53-53000-3)
RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power
Temporarily out of stock; available to order
$18.60
+ Add to Quote
Honeywell 1400g Accessories (46-00525-6)
Accessory, Honeywell Power Supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.
Temporarily out of stock; available to order
$32.00
+ Add to Quote
Honeywell MS9590 Accessories (46-00885-2)
Stand: gray, wall mount/desktop and weighted base for MS9590 VoyagerGS
Please Call for Pricing
or to Purchase

The Metrologic MS9590-14-7 is also known as Metrologic Instruments MS9590-14-7 or MS9590147 .
