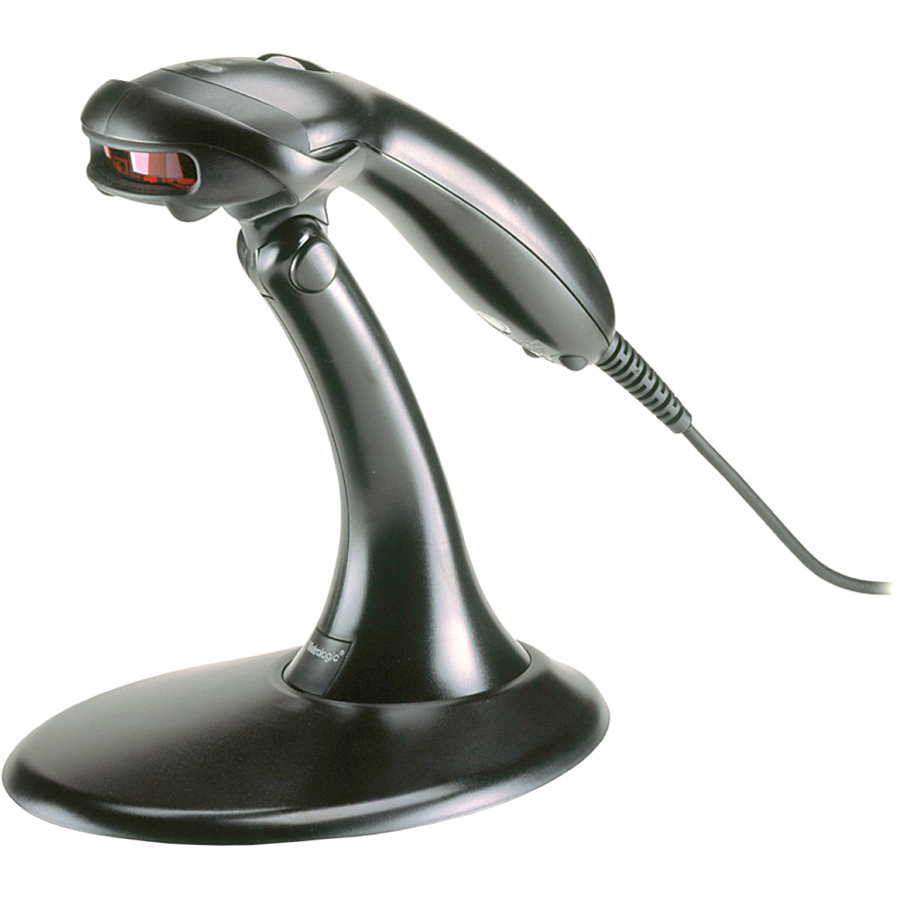

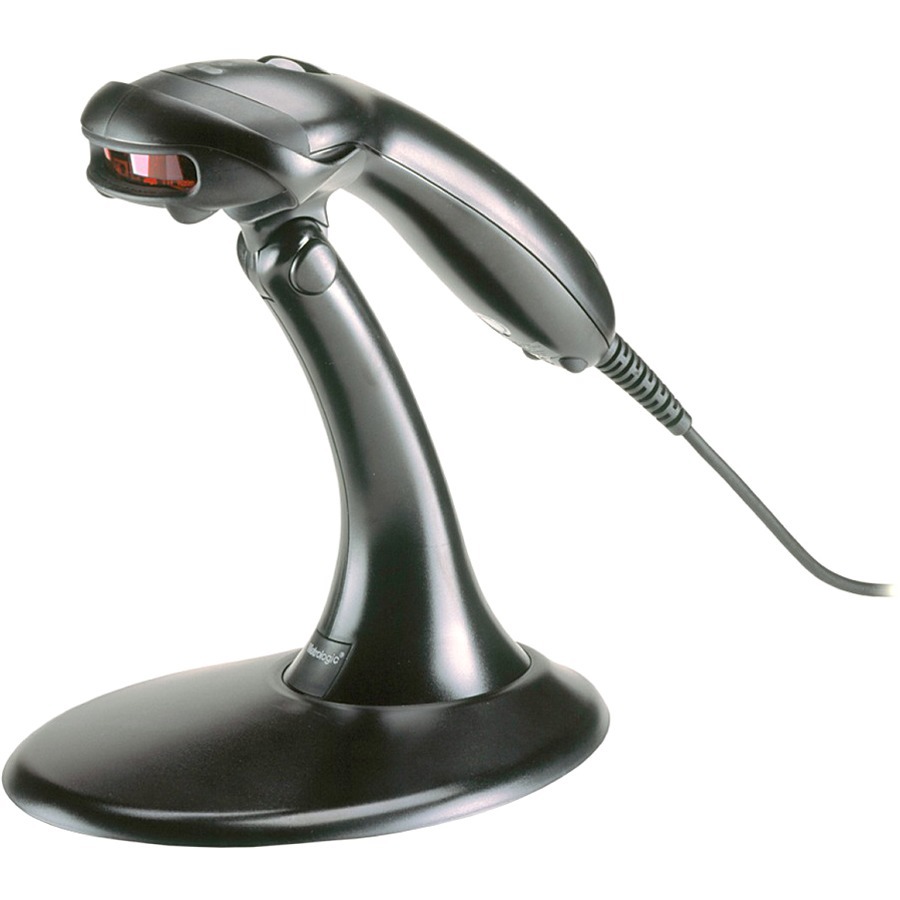

Metrologic MS9540 Voyager – Barcode Scanner – Corded – 1D

Part Number: MS9540-47
Model: MS9540 Voyager
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Scanner Capability
1D
Scanner Type
CCD, Imager

Product Description:

  SCANNER ONLY, 1D Laser, Color: White Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3), PS/2 (Part# 53-53235-N-3), or RS-232 Serial cables (Part# 53-53000-3) and a Power supply (Part# 46-00525). Non-Cancelable/Non-Returnable.
Explore all Metrologic MS9540 Voyager Barcode Scanners
Add to Quote
Metrologic MS9540-47 Barcode Scanner
Metrologic MS9540-47 Barcode Scanner
Metrologic MS9540-47 Barcode Scanner
Metrologic MS9540-47 Barcode Scanner
Metrologic MS9540-47 Barcode Scanner Metrologic MS9540-47 Barcode Scanner Metrologic MS9540-47 Barcode Scanner Metrologic MS9540-47 Barcode Scanner
Full specifications (PDF)

Metrologic MS9540 Voyager Barcode Scanner Model Overview

The MS9540 Voyager features Metrologic's proprietary CodeGate technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.
Metrologic MS9540-47 Barcode Scanner Overview

Voyager and VoyagerCG hand-held, single-line laser scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBar. VoyagerCG also includes CodeGate technology for menu scanning applications. CodeGate zeroes in on the desired code and completes data transmission with the push of a single button.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

Linear:

  • China Post
  • Codabar (NW7)
  • Code 11
  • Code 128
  • Code 2 of 5
  • Code 32
  • Code 39
  • Code 93 and 93i
  • EAN
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Plessey
  • GS1 DataBar (Formerly RSS)
  • Telepen
  • Trioptic Code
  • UPC

Stacked:

  • GS1 Composite (formerly EAN/UCC)
Light Source:
Laser
Scan Rate:
72 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 6.5"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
Keyboard Wedge
Physical Characteristics
Color:
Black
Height:
2.2"
Width:
3.1"
Depth:
7.8"
Weight (Approximate):
5.30 oz
Miscellaneous
Package Contents:
  • VoyagerCG MS9540 Handheld Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0024606616601
UPC: 024606616601
EAN: 0024606616601
UNSPSC: 43211701
