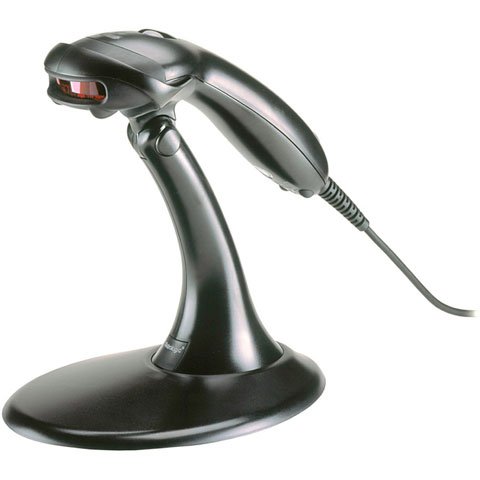

Honeywell MS9540-38-3 Barcode Scanner

The Honeywell MS9540-38-3 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell MS9540 Voyager - SCANNER ONLY, 1D Laser, Color: Black. Cables and accessories must be purchased separately. For the full kit purchase (Part# MK9540-32A38).
  • Laser scan engine guarantees rapid error free data entry
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Need a different version? See all Honeywell MS9540 Voyager Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Honeywell MS9540-38-3 Barcode Scanner
Honeywell MS9540-38-3 Barcode Scanner Honeywell MS9540-38-3 Barcode Scanner Honeywell MS9540-38-3 Barcode Scanner Honeywell MS9540-38-3 Barcode Scanner
Honeywell MS9540-38-3 Barcode Scanner
Honeywell MS9540-38-3 Barcode Scanner
Honeywell MS9540-38-3 Barcode Scanner
Honeywell MS9540-38-3 Barcode Scanner
Full specifications (PDF)
Honeywell MS9540 Voyager Barcode Scanner Model Overview
The MS9540 Voyager features Honeywell's proprietary CodeGate technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.
Honeywell MS9540-38-3 Barcode Scanner Overview

The MS9540 VoyagerCG is designed to replace triggered scanners. In doing so, Metrologic's engineering department incorporated a feature called CodeGate that makes the MS9540 more intuitive to use than a triggered scanner. Using Metrologic's patented auto-trigger, the laser is automatically activated when a bar code is presented, allowing the user to easily select the bar code. Then with a press of the CodeGate button, the data is transmitted to the host system. This unique concept makes VoyagerCG perfect for menu-scanning. When the MS9540 is placed in its stand, CodeGate can be automatically deactivated allowing VoyagerCG to be used as a fully automatic presentation scanner.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:

Auto discriminates All Standard Bar Codes Including RSS

Linear:

  • ABC Codabar (American Blood Commission)
  • China Post
  • Codabar
  • Code 11
  • Code 128
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 93 and 93i
  • EAN-13 (including Bookland EAN)
  • EAN-13 with Add-On
  • EAN-13 with Extended Coupon Code
  • EAN-8
  • EAN-8 with Add-On
  • GS1 Databar Expanded
  • GS1 Databar Limited
  • GS1 DataBar Omni directional
  • GS1 Databar Truncated
  • GS1-128
  • Interleaved 2 of 5
  • ISBT 128
  • ITF-14
  • Matrix 2 of 5
  • MSI-Plessey
  • UK Plessey Code
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Add-On
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E with Add-On

Stacked:

  • GS1 Databar Expanded Stacked
  • GS1 Databar Stacked
  • GS1 Databar Stacked Omni directional
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 8"@13mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.8"
Depth:
1.6"
Weight (Approximate):
5.25 oz
Miscellaneous
Package Contents:
  • VoyagerCG MS9540 Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Additional Information:

Width: Handle - 1.8" ; Head - 3.1"

USB Cable separate

Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0151903669327, 0163121205201, 0898198058015, 4913393126447
UPC: 151903669327, 163121205201, 804904215580, 898198058015
EAN: 0151903669327, 0163121205201, 0898198058015, 4913393126447
UNSPSC: 43211701
