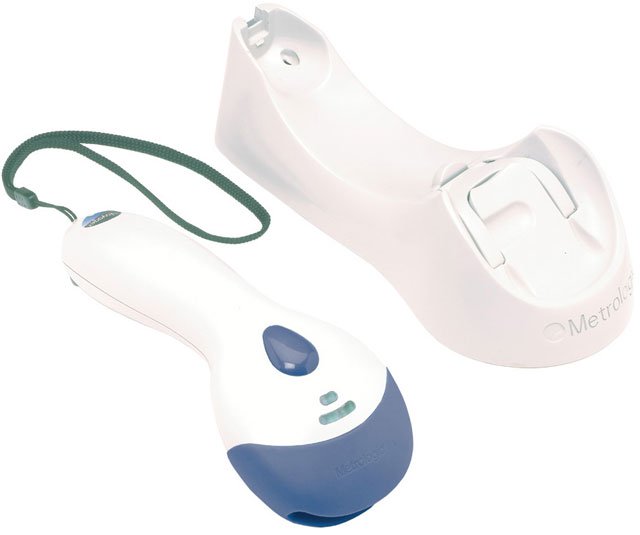

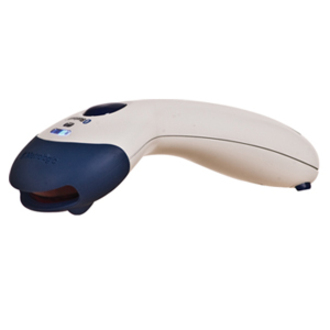

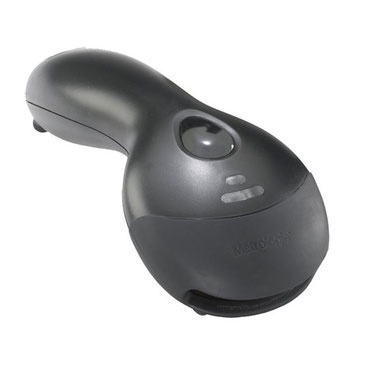

Honeywell MS9535-5-3 Barcode Scanner

Metrologic MS9535 VoyagerBT - SCANNER ONLY, 1D Laser, Cordless. Cables and accessories must be purchased separately. These include USB (Part# 52-52828A-3-RW), PS/2 (Part# 53-530002B), or RS-232 Serial cables (Part# 53-53000B-N-3), Power supply (Part# 46-46880) and a Charging/Communications cradle (Part# MI9535-538). Color: Black.
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More

Full specifications (PDF)

All the features of the MS9535 Voyager BT, plus the flexibility of wireless Bluetooth communications.
The MS9535 Voyager BT is a wireless handheld scanner and is among the first of its kind to employ the emerging Bluetooth wireless technology standard. Designed for use in POS or light warehousing applications, VoyagerBT can communicate with its own base station or with other already-equipped Bluetooth devices such as PC's, laptops and barcode printers.
Metrologic MS9535-5-3 Overview

VoyagerBT combines the freedom of Bluetooth wireless technology with many of the outstanding features found in all Voyager series scanners. In addition to automatic infrared activation for bar code detection, VoyagerBT comes equipped with patented RangeGate technology which allows the device to scan hundreds of bar codes when out of range of a host system.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:

Linear:

  • China Post
  • Codabar (NW7)
  • Code 11
  • Code 128
  • Code 2 of 5
  • Code 32
  • Code 39
  • Code 93 and 93i
  • EAN
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Plessey
  • GS1 DataBar (formerly RSS)
  • Telepen
  • Trioptic Code
  • UPC

Stacked:

  • GS1 Composite (Formerly EAN/UCC)
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 6.5"@10mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Network & Communication
Radio Frequency:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Color:
Black
Height:
2.2"
Width:
3.1"
Depth:
7.8"
Weight (Approximate):
7 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories for Model: Metrologic MS9535 Voyager BT Barcode Scanner

Category

  • Batteries (1)
  • Accessories (26)
Recommended Accessories for Model: Metrologic MS9535 Voyager BT Barcode Scanner

Batteries

Metrologic (46-46870)
Spare Battery, RPL Lithium-Ion, For the 9535BT (Non-Cancellable, Non-Returnable, Please call use with any questions).
Ships in 3-5 Days
$25.05
+ Add to Quote

Accessories

Metrologic (54-54002B-N-3)
Keyboard wedge cable for the MS9535, MS7120 and Voyager series. No power jack. Color: Black
Metrologic (45-45593)
110V (US) Power supply (not compatible with MK6720 - use (Part# 46-46010)
Metrologic (70-73524B)
Wrist Strap for the MS9535 VoyagerBT and SP2500 Navigator
Metrologic (46-46935)
Gray flex pole kit for the MS9535
Metrologic (46-46772B)
Charger-Cradle for the MS9535 VoyagerBT - Color: Gray
Metrologic (46-46772G)
Charger-Cradle (for the MS9535 VoyagerBT) - Color: Gray
Metrologic (54-54200B-N)
USB cable for the MS9535 Non-Powerlink
Metrologic (46-46546)
Download Charger/Cradle (EU) for the VoyagerBT
Metrologic (MI9535-547)
Bluetooth Charger-Cradle (Keyboard wedge) - Color: Gray
Metrologic (52-52828A)
USB Cable for the MS9535 VoyagerBT printer
Metrologic (46-46772G-3)
Charger for the MS9535 VoyagerBT scanner, Cradle Only, Color: Black
Metrologic (MI9535-540)
Bluetooth Charge Cradle (USB, Full Speed) - Color: Gray
Metrologic (MI9535-540-3)
Bluetooth Charger-Cradle (USB, Full Speed, Black)
Metrologic (54-54002B-3)
Keyboard wedge cable (7 feet, straight) with power input port for the MS7120, MS9535 and Voyager series. Power supply not included, see (Part# 45-45593). Color: Black.
Metrologic (MI9535-538)
Gray charge and communications cradle for MS9535. Requires cable and power supply (part #PS-05-3000W-A-1).
Metrologic (46-46878)
110 VAC power supply for the MS9535
Metrologic (46-46935-3)
Black presentation stand (flex pole kit) for MK9535
Honeywell Power (46-46879)
Supply (European Plug, 2.0A at 5.2VDC, 220-240 VAC) for MS9535 Voyager Bluetooth.
Metrologic (MI9535-514-3)
Bluetooth Charger-Cradle, RS-232 Serial Interface, Color: Black
Metrologic (MI9535-514)
Bluetooth Charger-Cradle (RS-232 Serial Interface, Gray) for the MS9535.
Metrologic (52-52828A-3)
USB Cable for the MS9535 VoyagerBT scanner cradle
Metrologic (52-52828C-3)
USB Cable (for MS9535 VoyagerBT)
Metrologic (54-54002B)
Keyboard wedge cable (7 feet, straight) with power input port for the MS7120, MS9535 and Voyager series. Power supply not included, see (Part# 45-45593). Color: Gray.
Metrologic (MI9535-538-3)
MS9535 charge and communication cradle, Color: Black. Cradle does not include USB cable 52-52828A-3 cable OR power supply 46-46878. See accessories.
Metrologic (MI9535-547-3)
Bluetooth Charger-Cradle (Keyboard wedge, Black)

The Metrologic MS9535-5-3 is also known as Metrologic Instruments MET-MS9535-5-3 or MS953553 .
