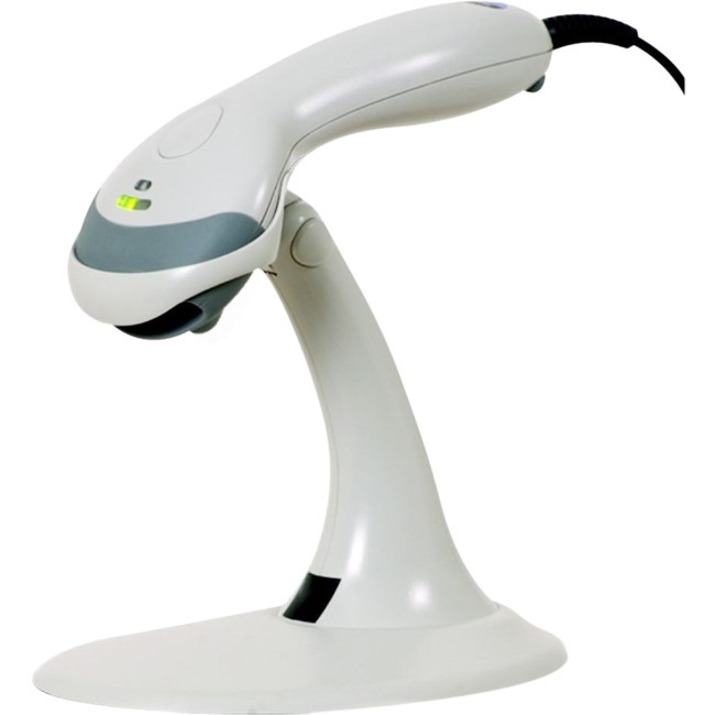

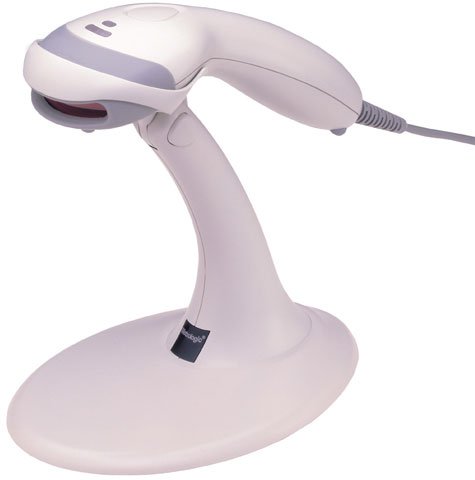

Honeywell MS9520-41 Barcode Scanner

Metrologic MS9520 Voyager - SCANNER ONLY, 1D Laser. Cables and accessories must be purchased separately. Color: Gray. Non-Cancelable/Non-Returnable.
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser scan engine guarantees rapid error free data entry
Read More

Full specifications (PDF)

The most advanced auto-triggered scanner on the market today.
The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MS9520-41 Overview

Honeywell's Voyager® 9500 series of hand-held, single-line laser scanners offer aggressive scanning of all standard 1D bar codes.

The Voyager series of hand-held, single-line bar code scanners have united form with function in becoming the industry benchmark for value and performance.

These sleek scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBarTM (formerly known as RSS codes).

VoyagerCG 9540 also includes patented CodeGate® technology which allows the user to easily target the desired bar code and complete data transmission with the press of a single button.

For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.

Features

  • Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand
  • 650-nanometer Laser: High-visibility laser allows user to place laser line on selected bar code
  • CodeGate Technology (VoyagerCG 9540 only): Zero in on desired code and complete data transmission with the push of a single button-ideal for menu scanning applications
  • Flash ROM: Future proof POS system with free firmware updates via MetroSet®2 software and standard PC
  • Parsing (Data Editing): Format bar code data to meet host system's specific requirements

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • All Standard 1D Bar Codes
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Additional Information:

Interface Supported:

  • RS-232

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
GTIN: 0000004414391, 0682017452142, 0881119128102
UPC: 000004414391, 682017452142, 881119128102
EAN: 0000004414391, 0682017452142, 0881119128102
UNSPSC: 43211701
