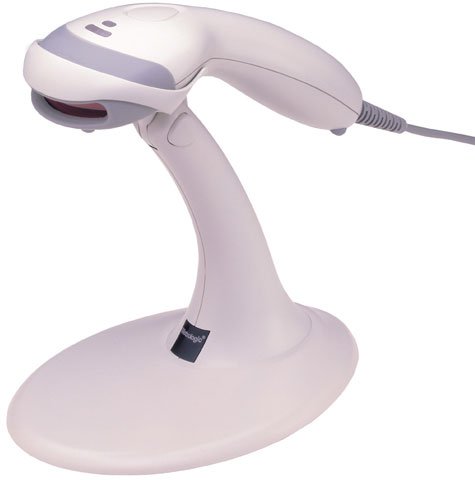

Metrologic MS9520 Voyager – Barcode Scanner – Corded – 1D

Part Number: MS9520-40
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Scanner Capability
1D
Scanner Type
CCD, Imager

Product Description:

  SCANNER ONLY, 1D Laser. Color: Gray. Cables and accessories must be purchased separately. Non-Cancelable/Non-Returnable.

Honeywell MS9520 Voyager Barcode Scanner Model Overview

The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MS9520-40 Barcode Scanner Overview

Honeywell's MS9520 Voyager hand-held, single-line laser scanner offers aggressive scanning of all standard 1D bar codes. The Voyager series of hand-held, single-line bar code scanners have united form with function in becoming the industry benchmark for value and performance.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Reads standard 1D and GS1 DataBar symbologies

Linear:

  • ABC Codabar (American Blood Commission)
  • China Post
  • Codabar
  • Code 11
  • Code 128
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 93 and 93i
  • EAN-13 (including Bookland EAN)
  • EAN-13 with Add-On
  • EAN-13 with Extended Coupon Code
  • EAN-8
  • EAN-8 with Add-On
  • GS1 Databar Expanded
  • GS1 Databar Limited
  • GS1 DataBar Omnidirectional
  • GS1 Databar Truncated
  • GS1-128
  • Interleaved 2 of 5
  • ISBT 128
  • ITF-14
  • Matrix 2 of 5
  • MSI-Plessey
  • UK Plessey Code
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Add-On
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E with Add-On

Stacked:

  • GS1 Databar Expanded Stacked
  • GS1 Databar Stacked
  • GS1 Databar Stacked Omnidirectional
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 2.0"@5.2mil
  • 0" - 5.0"@7.5mil
  • 0" - 6.5"@10.4mil
  • 0" - 6.5"@13mil
  • 0" - 6.5"@21mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Light Gray
Height:
2.2"
Width:
3.1"
Depth:
7.8"
Weight (Approximate):
5.30 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Handheld Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
