Metrologic MS7625-13 Barcode Scanner

The Metrologic MS7625-13 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Metrologic MS7600 - MS7600 Series Horizon (MS7625 Model, Stainless Steel Top, OCIA, RS232 Interface, IBM, Standard Glass and 110V Power Supply - Requires Cable). Non-Cancelable/Non-Returnable.

Perfect for applications that require direct association with a workstation or a notebook
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too

Need a different version? See all Metrologic Horizon 7600 Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Metrologic Horizon 7600 Barcode Scanner Model Overview

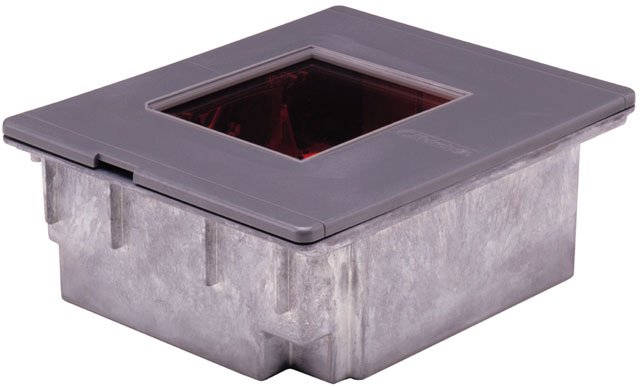

Horizon 7600 is Metrologic's next generation in-counter laser barcode scanner. The compact, hands-free Horizon 7600 scanner is designed with a dense 20-line omnidirectional scan pattern that helps provide fast, efficient throughput with a high first-pass read rate. The Horizon 7600 laser scanner is durable with die-cast construction to withstand even the harshest environments.

Metrologic MS7625-13 Barcode Scanner Overview

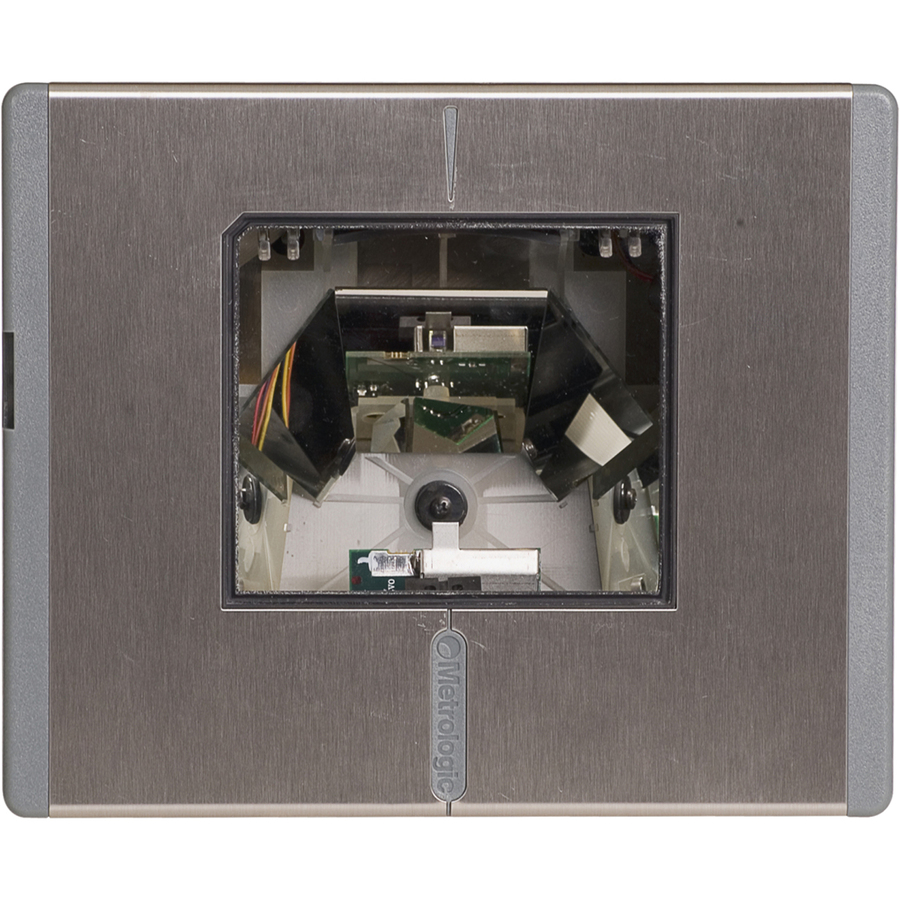

Horizon MS7625 is an in-counter laser Bar Code Reader. This compact, hands-free scanner is designed with a dense 20-line omnidirectional scan pattern that helps provide fast, efficient throughput with a high first-pass read rate. MS7625's top plate is of stainless steel.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

All Standard 1D Symbologies
RSS-14
RSS-Limited
RSS-Expanded

Light Source:

Laser

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 1.5"@5.2mil
0" - 4.5"@7.5mil
0" - 7"@10.4mil
0" - 8"@13mil
0" - 9"@19.5mil

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5.2 V DC

Physical Characteristics

Height:

7.6"

Width:

Depth:

3.5"

Weight (Approximate):

6.35 lb

Miscellaneous

Additional Information:

Supported Interfaces:

Serial
IBM 468X/469X
OCIA

USB Cable separate

Certifications & Standards:

Laser Class:

IEC 60825-1:1993 + A1:1997 + A2:2001 Class 1

EMC:

FCC
ICES-003 & EN55022 Class A

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Metrologic MS7625-13 Barcode Scanner is also known as MET-MS7625-13 or MS762513.
