Metrologic MS3780 Fusion – Barcode Scanner – 1D

Part Number: MS3780-41-7
Model: MS3780 Fusion
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  SCANNER ONLY: light gray, RS232 interface, Installation & User's Guide, does not include interface cables or cradle.

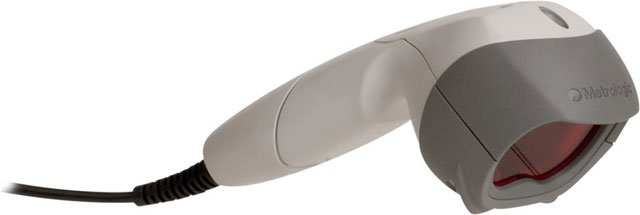

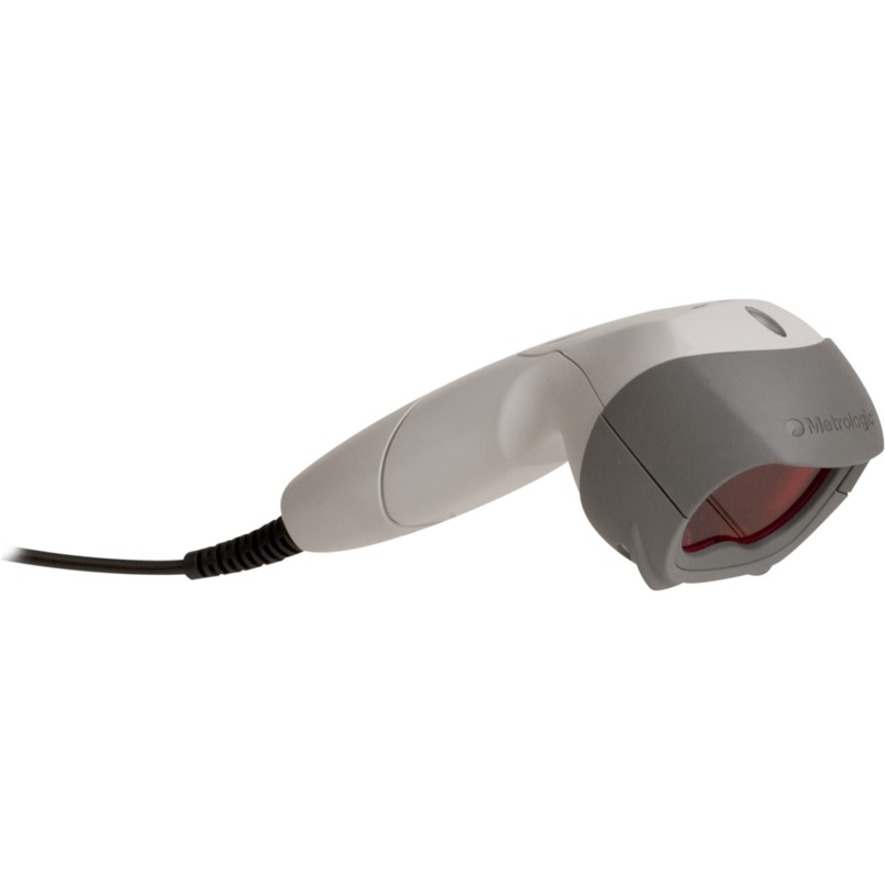

Honeywell MS3780 Fusion Barcode Scanner Model Overview

Experience unparalleled efficiency in your retail operations with the Fusion™ M 3780 Omnidirectional Laser Scanner by Honeywell. This compact, hand-held scanner combines advanced omnidirectional and single-line scanning capabilities, making it a versatile addition to medium-volume retail environments such as specialty stores and pharmacies. With features like an automatic in-stand operation and a user-friendly design, the Fusion 3780 enhances checkout speeds while reducing operator fatigue, helping you streamline your workflow like never before.


Key Features:

  • Omnidirectional Scan Pattern: Aggressive scanning from any angle for increased throughput.
  • Single-Line Scan Mode: Switch to a targeted single line for precise scanning with a button press.
  • Automatic In-Stand Detection: Enables hands-free operation, significantly reducing operator fatigue.
  • Integrated IR Sensor: Powers up the scanner only when a barcode is detected, conserving energy.
  • Optional RF EAS Integration: Simultaneously deactivates RF tags while scanning barcodes for heightened efficiency.

Specifications:

  • Mechanical Dimensions: 189 mm x 65 mm x 73 mm (7.4" x 2.6" x 2.9")
  • Weight: 195 g (6.9 oz)
  • Electrical:
    • Input Voltage: 5 VDC ± 0.25 V
    • Operating Power: 1.4 W (275 mA @ 5 V)
    • Standby Power: 1.0 W (200 mA @ 5 V)
    • Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
  • Environmental:
    • Operating Temperature: -20°C to 40°C (-4°F to 104°F)
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 5% to 95% relative humidity, non-condensing
    • Drop: Designed to withstand multiple 1.5 m (5') drops
    • Environmental Sealing: Sealed to resist airborne particulate contaminants
    • Light Levels: 4842 Lux
  • Scan Performance:
    • Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines; single line activated by button
    • Scan Speed: 1,333 scan lines per second (omnidirectional); 67 scan lines per second (single line)
    • Print Contrast: 35% minimum reflectance difference
    • Pitch, Skew: 60°, 60°
    • Decode Capability: Reads standard 1D and GS1 DataBar symbologies
  • Warranty: 3-year factory warranty
Metrologic MS3780-41-7 Barcode Scanner Overview

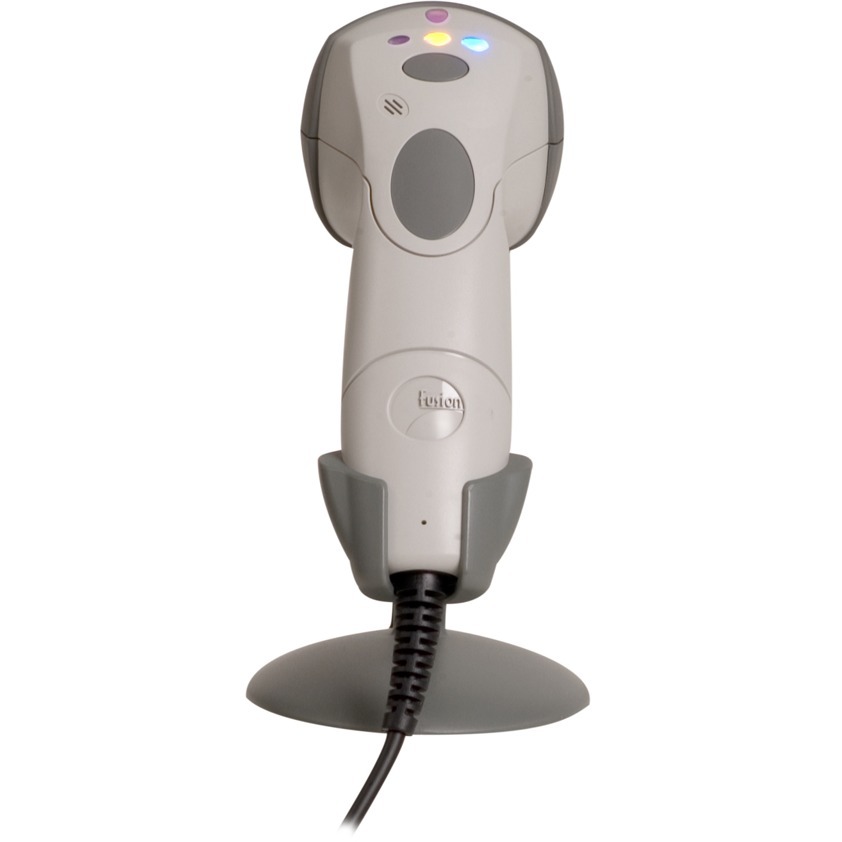

Honeywell's Fusion® 3780 laser barcode scanner combines omnidirectional and single-line laser scanning into a lightweight and ergonomic hand-held form factor. The Fusion 3780 scanner's automatic stand detection allows users to seamlessly switch from hand-held to presentation scanning. The 20-line scan pattern provides superior scanning over existing single-line scanners, making the Fusion laser scanner ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores and convenience stores.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
Reads standard 1D and GS1 DataBar symbologies
Light Source:
Laser
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Color:
Light Gray
Height:
2.9"
Width:
2.6"
Length:
7.4"
Weight (Approximate):
6.88 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
UNSPSC: 43211701
