Metrologic MS3780 Fusion – Barcode Scanner – Corded – 1D
Full specifications (PDF)

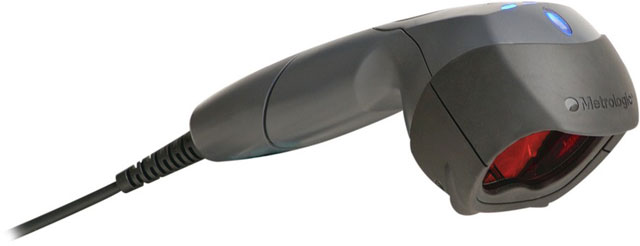

Honeywell MS3780 Fusion Barcode Scanner Model Overview
Experience unparalleled efficiency in your retail operations with the Fusion™ M 3780 Omnidirectional Laser Scanner by Honeywell. This compact, hand-held scanner combines advanced omnidirectional and single-line scanning capabilities, making it a versatile addition to medium-volume retail environments such as specialty stores and pharmacies. With features like an automatic in-stand operation and a user-friendly design, the Fusion 3780 enhances checkout speeds while reducing operator fatigue, helping you streamline your workflow like never before.
Key Features:
- Omnidirectional Scan Pattern: Aggressive scanning from any angle for increased throughput.
- Single-Line Scan Mode: Switch to a targeted single line for precise scanning with a button press.
- Automatic In-Stand Detection: Enables hands-free operation, significantly reducing operator fatigue.
- Integrated IR Sensor: Powers up the scanner only when a barcode is detected, conserving energy.
- Optional RF EAS Integration: Simultaneously deactivates RF tags while scanning barcodes for heightened efficiency.
Specifications:
- Mechanical Dimensions: 189 mm x 65 mm x 73 mm (7.4" x 2.6" x 2.9")
- Weight: 195 g (6.9 oz)
- Electrical:
- Input Voltage: 5 VDC ± 0.25 V
- Operating Power: 1.4 W (275 mA @ 5 V)
- Standby Power: 1.0 W (200 mA @ 5 V)
- Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
- Environmental:
- Operating Temperature: -20°C to 40°C (-4°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Humidity: 5% to 95% relative humidity, non-condensing
- Drop: Designed to withstand multiple 1.5 m (5') drops
- Environmental Sealing: Sealed to resist airborne particulate contaminants
- Light Levels: 4842 Lux
- Scan Performance:
- Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines; single line activated by button
- Scan Speed: 1,333 scan lines per second (omnidirectional); 67 scan lines per second (single line)
- Print Contrast: 35% minimum reflectance difference
- Pitch, Skew: 60°, 60°
- Decode Capability: Reads standard 1D and GS1 DataBar symbologies
- Warranty: 3-year factory warranty
Recommended Accessories
Category
- Cables, Connectors, and Adapters (6)
- Computer Accessories (2)
- Mounting Hardware and Stands (1)
- Power Device (1)
- Scanner Accessories (3)
Recommended Accessories for Model: Metrologic MS3780-38 Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Metrologic MS3780-38
-
Metrologic MVC-3MPC-VR AccessoryVerifone-Ruby, black, 8-pin Mod, 3.3m (10.7'), coiled, host powerItem on backorder — chat for lead time$78.66 -
Honeywell 53-53000-3 Cables, Connectors, and AdaptersRS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external powerIn Stock$16.68 -
Honeywell 53-53002-N-3 AccessoryKeyboard Wedge, black, 2.9m (9.5'), coiled, host power. Non-Cancelable/Non-Returnable.Item on backorder — chat for lead time$30.09
Top Computer Accessories Purchased With Metrologic MS3780-38
-
Honeywell 53-53002-N-3 AccessoryKeyboard Wedge, black, 2.9m (9.5'), coiled, host power. Non-Cancelable/Non-Returnable.Item on backorder — chat for lead time$30.09
-
Honeywell 53-53020-3 AccessorySingle keyboard cable, black, 2.9m (9.5'), coiled, 5V external power. Non-Cancelable/Non-Returnable.Item on backorder — chat for lead time$24.29
Top Mounting Hardware and Stands Purchased With Metrologic MS3780-38
-
Honeywell 46-00225-2 AccessoryPresentation Stand (for the MS3780) - Color: Light Gray. Non-Cancelable/Non-Returnable.Item on backorder — chat for lead time$25.66
Top Power Device Purchased With Metrologic MS3780-38
-
Honeywell 46-00525-6 Power DeviceAccessory, Honeywell Power Supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.In Stock$53.38
Top Scanner Accessories Purchased With Metrologic MS3780-38
-
Honeywell 46-00525 AccessoryPower supply, North American plug, 1A output current, 90 to 255 AC input voltage, 50-60 Hz, 5.2 VDCItem on backorder — chat for lead timePlease Call for Pricing or to Purchase -
Honeywell 46-00225-2 AccessoryPresentation Stand (for the MS3780) - Color: Light Gray. Non-Cancelable/Non-Returnable.Item on backorder — chat for lead time$25.66
-
Honeywell 46-00225-3 AccessoryStand: black, presentation scanning with weighted base for MS3780 FusionItem on backorder — chat for lead time$30.28
