Metrologic MS9590 Voyager GS – Barcode Scanner – Corded – 1D

Part Number: MK9590-60A40-A12
Model: MS9590 Voyager GS
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  PowerPlus USB Kit. 1D Scanner, and coiled 5V locking PowerPlus USB cable. Color: Dark Gray.
Explore all Honeywell Voyager Series Barcode Scanners
Add to Quote
Metrologic MK9590-60A40-A12 Barcode Scanner
Metrologic MK9590-60A40-A12 Barcode Scanner
Metrologic MK9590-60A40-A12 Barcode Scanner
Metrologic MK9590-60A40-A12 Barcode Scanner Metrologic MK9590-60A40-A12 Barcode Scanner Metrologic MK9590-60A40-A12 Barcode Scanner
Full specifications (PDF)

Honeywell Voyager Series Barcode Scanner Model Overview

The Honeywell Voyager Series offers high performance scanning, a futuristic design and a more intuitive scanning system than other scanners. Choose the Voyager Series for the extensive connectivity options, the ease-of-use friendly to both beginners and experienced users, the sturdy construction, the variety of programming options and more!
Metrologic MK9590-60A40-A12 Barcode Scanner Overview

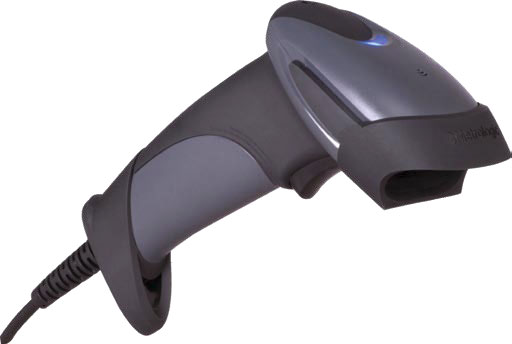

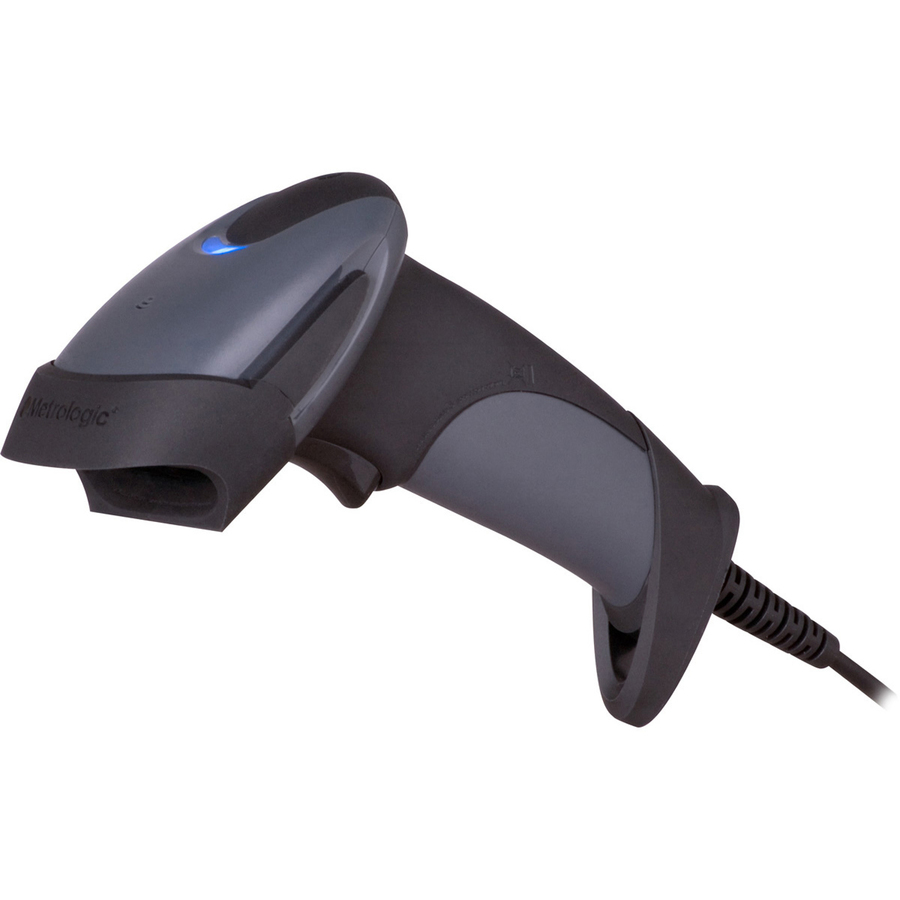

Metrologic VoyagerGS MS9590 Bar Code Reader is the newest addition to the Voyager series of hand-held laser scanners. The MS9590 is the first Voyager product to feature trigger scanning in a new ergonomic form factor that maximizes comfort and reduces fatigue. Additional product features include a rapid scan speed of 100 scans per second, extended depth of field, CodeGate data transmission, manual-trigger operation, automatic in-stand detection, data formatting, configuration with MetroSelect or MetroSet2 via RS232 or USB .

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 3" - 4"@5mil
  • 1.5" - 7.5"@7.5mil
  • 1" - 10"@10.4mil
  • 0" - 12"@13mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Height:
6.3"
Width:
2.6"
Depth:
3.9"
Weight (Approximate):
5.29 oz
Miscellaneous
Package Contents:
  • Voyager MS9590 Handheld Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • VoyagerGS 9590 Series User's Guide
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Keyboard Wedge
  • IBM 46XX

    • Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • WEEE
    Item Numbers
    GTIN: 0984537630308
    UPC: 984537630308
    EAN: 0984537630308
    UNSPSC: 43211701

    Recommended Accessories

    Category

    • Cables, Connectors, and Adapters (2)
    • Mounting Hardware and Stands (1)
    • Power Device (1)
    • Scanner Accessories (6)

    Recommended Accessories for Model: Metrologic MK9590-60A40-A12 Barcode Scanner

    Top Cables, Connectors, and Adapters Purchased With Metrologic MK9590-60A40-A12

    Top Mounting Hardware and Stands Purchased With Metrologic MK9590-60A40-A12

    Top Power Device Purchased With Metrologic MK9590-60A40-A12

    • Honeywell 46-00525-6 Power Device
      Honeywell 46-00525-6 Power Device
      Accessory, Honeywell Power Supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.
      In Stock
      $53.38
      Add to Quote

    Top Scanner Accessories Purchased With Metrologic MK9590-60A40-A12

    • Honeywell 46-00525 Accessory
      Honeywell 46-00525 Accessory
      Power supply, North American plug, 1A output current, 90 to 255 AC input voltage, 50-60 Hz, 5.2 VDC
      Item on backorder — chat for lead time
      Please Call for Pricing or to Purchase
    • Honeywell 55-55809-N-E-3 Accessory
      Honeywell 55-55809-N-E-3 Accessory
      USB, black, Type A and 2 wire pigtail, straight, host power with EAS. Non-Cancelable/Non-Returnable.
      Item on backorder — chat for lead time
      Please Call for Pricing or to Purchase
    • Honeywell 46-00709-2 Accessory
      Honeywell 46-00709-2 Accessory
      Stand: gray, presentation scanning, 15cm (6\") flexible pole and weighted base for MS9590
      Item on backorder — chat for lead time
      Please Call for Pricing or to Purchase
    See All Scanner Accessories for Metrologic MK9590-60A40-A12 Barcode Scanner >
    The Metrologic MK9590-60A40-A12 Barcode Scanner is also known as MET-MK9590-60A40-A12 or MK959060A40A12.
