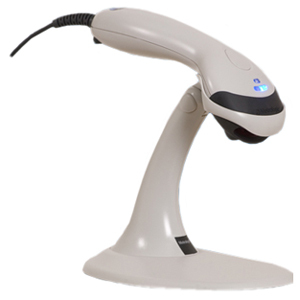

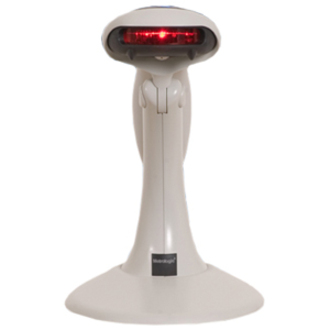

Metrologic MK9544-72A47 Barcode Scanner

Honeywell 3800GPDF04-KBWKITE Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 3800GPDF04-KBWKITE Barcode Scanner.
Metrologic MS9544 Voyager PDF - keyboard wedge kit. Includes PDF417 scanner, PS/2 cable, stand, Codegate & manual. Color: white.
  • Perfect for applications that require direct association with a workstation or a notebook
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser scan engine guarantees rapid error free data entry
Read More

Need a different version? See all Metrologic MS9544 Voyager PDF Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Metrologic MK9544-72A47 Barcode Scanner
Metrologic MK9544-72A47 Barcode Scanner Metrologic MK9544-72A47 Barcode Scanner Metrologic MK9544-72A47 Barcode Scanner
Metrologic MK9544-72A47 Barcode Scanner
Metrologic MK9544-72A47 Barcode Scanner
Metrologic MK9544-72A47 Barcode Scanner
Full specifications (PDF)
Metrologic MS9544 Voyager PDF Barcode Scanner Model Overview
The MS9544 Voyager PDF is a high-speed linear laser scanner capable of decoding two-dimensional barcodes including PDF417, PDF417 truncated, and RSS composite. VoyagerPDF is targeted to satisfy POS applications requiring moderate-volume scanning of two-dimensional symbologies such as pharmacy applications and driver's license verification.
Metrologic MK9544-72A47 Barcode Scanner Overview

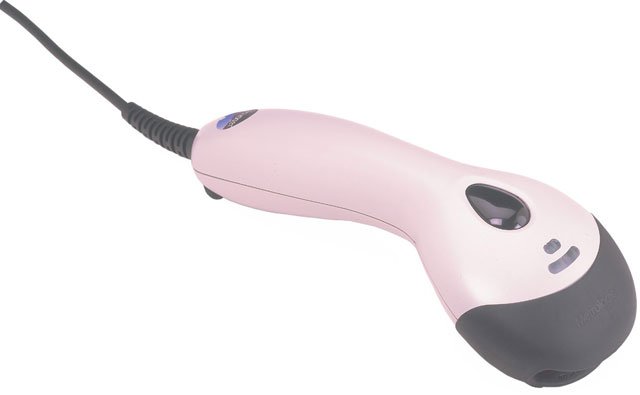

The Metrologic VoyagerPDF MS9544 Bar Code Reader combines the ability to decode PDF bar codes with many of the outstanding features found in all Voyager series hand-held, single-line scanner the industry benchmark for value and performance. Both models decode the following: 1D, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 composite bar codes. In addition to automatic activation, VoyagerPDF MS9544 also comes equipped with Metrologic patented CodeGate technology which completes data transmission with the push of a single button.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

Autodiscriminates all standard 1D bar codes, including RSS-14, Truncated PDF, Micro and Macro PDF.

Light Source:
Laser
Maximum Scan Resolution:
5 mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5.2 V DC
Physical Characteristics
Color:
Gray
Height:
7.8"
Width:
3.1"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • VoyagerPDF MS9544 Bar Code Reader
  • Keyboard Wedge Cable
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • OCIA
  • Light Pen Emulation
  • IBM 468X/469X
  • USB

USB Cable separate

Certifications & Standards:
  • RoHS
  • WEEE

Laser Class 1:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001
  • Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC Class B
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK9544-72A47 Barcode Scanner is also known as MET-MS9544-72A47
