Metrologic MS9544 Voyager PDF – Barcode Scanner – 1D

Part Number: MK9544-32A47
Model: MS9544 Voyager PDF
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D

Product Description:

  Voyager Auto-Triggered Scanner, PDF with CG, Keyboard Wedge, Stand, Cable, Manual and No Power Supply. Color: Black
Explore all Metrologic MS9544 Voyager PDF Barcode Scanners
Add to Quote
Metrologic MK9544-32A47 Barcode Scanner
Metrologic MK9544-32A47 Barcode Scanner
Metrologic MK9544-32A47 Barcode Scanner
Metrologic MK9544-32A47 Barcode Scanner
Metrologic MK9544-32A47 Barcode Scanner Metrologic MK9544-32A47 Barcode Scanner Metrologic MK9544-32A47 Barcode Scanner Metrologic MK9544-32A47 Barcode Scanner
Full specifications (PDF)

Metrologic MS9544 Voyager PDF Barcode Scanner Model Overview

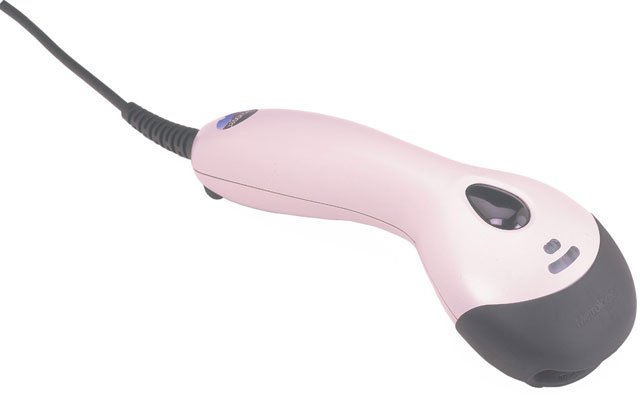

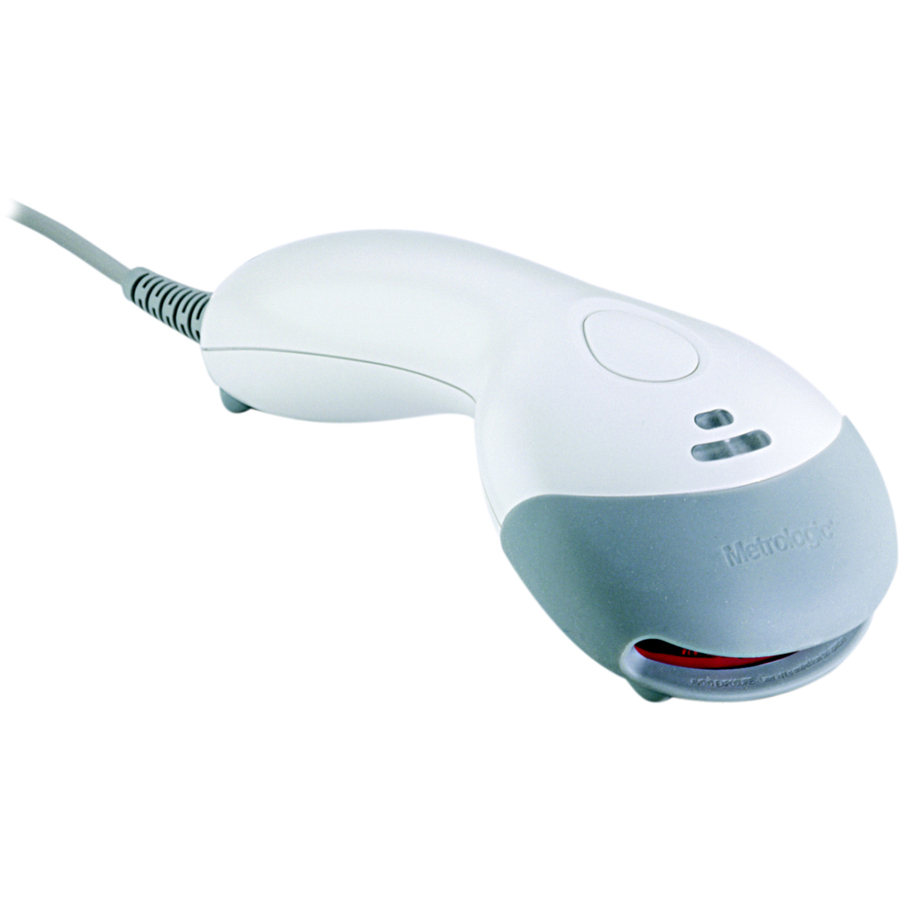

The MS9544 Voyager PDF is a high-speed linear laser scanner capable of decoding two-dimensional barcodes including PDF417, PDF417 truncated, and RSS composite. VoyagerPDF is targeted to satisfy POS applications requiring moderate-volume scanning of two-dimensional symbologies such as pharmacy applications and driver's license verification.
Metrologic MK9544-32A47 Barcode Scanner Overview

The Metrologic VoyagerPDF MS9544 Bar Code Reader combines the ability to decode PDF bar codes with many of the outstanding features. VoyagerPDF MS9544 Bar Code Reader is a single-line scanner that has the industry benchmark for value and performance. VoyagerPDF MS9544 Bar Code Reader decode's the following: 1D, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 composite bar codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
2D
Barcode Symbology Supported:
  • Autodiscriminates all standard 1D bar codes, including GSI
  • DataBar
  • PDF417
  • RSS-14 composite
  • Micro and Macro PDF
  • Standard 1D
  • PDF417 truncated
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
Black
Weight (Approximate):
5.26 oz
Miscellaneous
Additional Information:

Supported Interface:

  • Keyboard Wedge

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
UNSPSC: 43211701
