Metrologic MK9540-72A48 Barcode Scanner

The Metrologic MK9540-72A48 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Metrologic MS9540 Voyager - PS/2 kit, 1D Laser. Includes PS/2 cable and stand. Color: Gray. Non-Cancelable/Non-Returnable.

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Wired connectivity makes this scanner ideal for retail and desktop applications
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too

Need a different version? See all Metrologic MS9540 Voyager Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

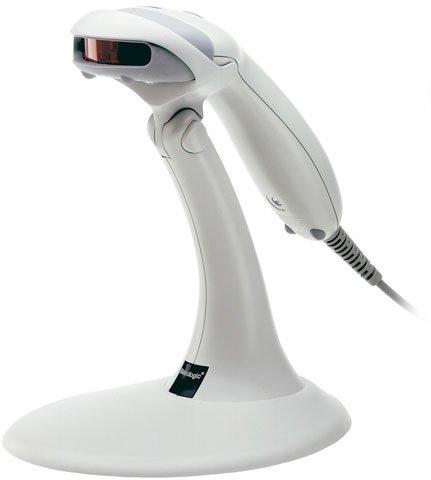

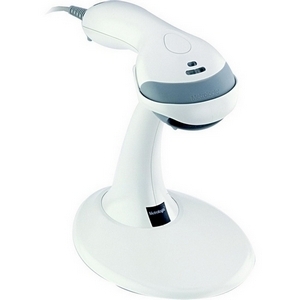

Metrologic MS9540 Voyager Barcode Scanner Model Overview

The MS9540 Voyager features Metrologic's proprietary CodeGate technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.

Metrologic MK9540-72A48 Barcode Scanner Overview

VoyagerCG MS9540 is auto-trigger, single-line laser Bar Code Reader designed for decoding

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

All Standard Symbologies
RSS

Light Source:

Laser

Maximum Scan Resolution:

5 mil

Depth of Field:

0" - 2"@5.2mil
0" - 5"@7.5mil
0" - 7"@10.4mil
0" - 8"@13mil
1" - 10"@21mil

Scan Pattern:

Single Line

Stand Included:

Yes

Interfaces/Ports

Host Interface:

Multi-interface

Physical Characteristics

Color:

Gray

Height:

7.8"

Width:

3.1"

Depth:

1.6"

Weight (Approximate):

5.26 oz

Miscellaneous

Package Contents:

VoyagerCG MS9540 Bar Code Reader
Mask Stand
Coiled Mini Din Connector Cable
Manuals

Additional Information:

Keyboard Cable - 9 ft

USB Cable separate

Platform Supported:

Certifications & Standards:

Laser Class:

Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001

EMC:

FCC
ICES-003
EN55022 Class B

Warranty

Limited Warranty:

5 Year

Item Numbers

UNSPSC: 43211701
