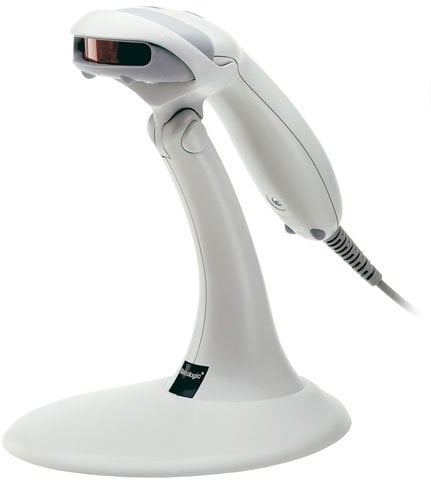

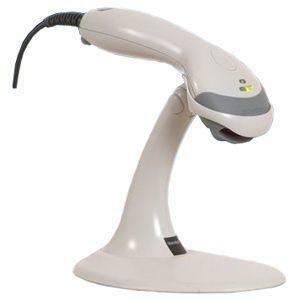

Metrologic MK9540-72A40 Barcode Scanner

The Metrologic MK9540-72A40 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Metrologic MS9540 Voyager - PowerPlus USB kit, 1D Laser. Includes Power Plus cable and stand. Color: Gray (PowerPlus USB is non-standard, please call for more information.). Non-Cancelable/Non-Returnable.
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D
Scanner Type
Laser
Metrologic MS9540 Voyager Barcode Scanner Model Overview
The MS9540 Voyager features Metrologic's proprietary CodeGate technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.
Metrologic MK9540-72A40 Barcode Scanner Overview

The Metrologic VoyagerCG MS9540 Bar Code Reader have united form with function to become the industry benchmark for value and performance. These sleek scanners feature a patented automatic infrared activation and decode all standard 1D bar codes, including RSS codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard Symbologies
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
Powered USB
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Color:
Gray
Height:
7.8"
Width:
1.8"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • VoyagerCG MS9540 Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Additional Information:

USB Power Plus 12 VDC

USB Cable separate

Certifications & Standards:
  • RoHS
  • WEEE

Laser Class 1:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001
  • Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC Class B
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0000002863870, 0682276551648, 0777785889112, 0783555036334, 0853585477459
UPC: 000002863870, 682276551648, 777785889112, 783555036334, 853585477459
EAN: 0000002863870, 0682276551648, 0777785889112, 0783555036334, 0853585477459
UNSPSC: 43211701
